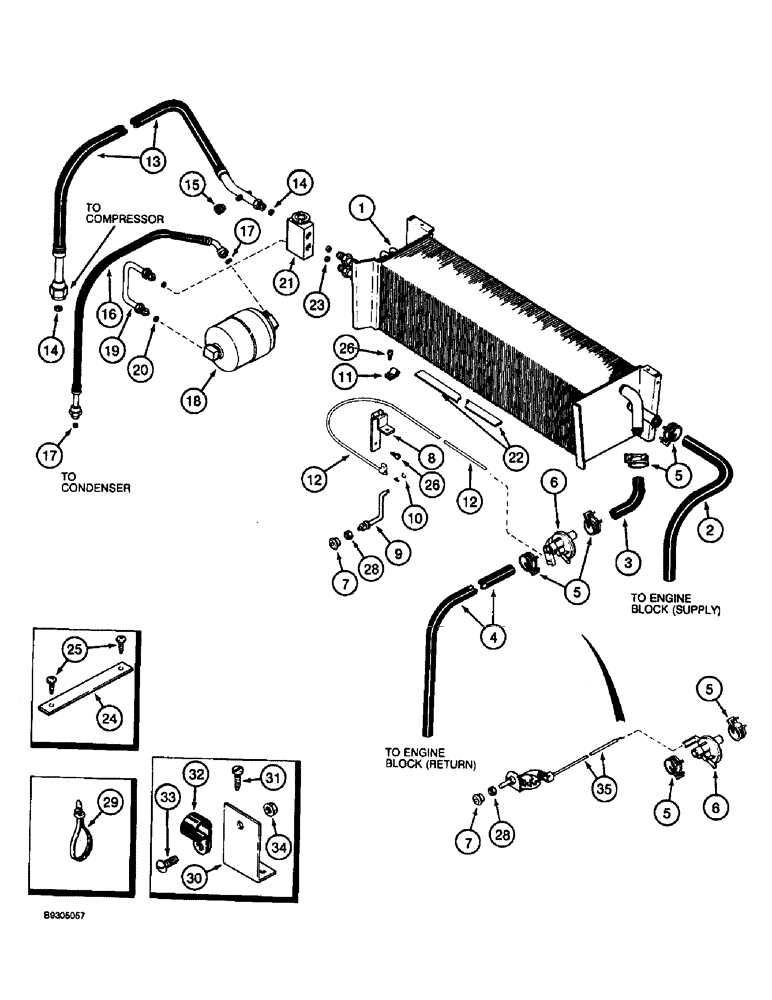

Запчасти Case IH 2055 (9E-30) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

1

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, includes item 21, valve and item 23, O-ring, complete parts list page 9E-24

1шт.

2

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HEATER HOSE - Heater to chassis junction, Cut from 97252CX bulk hose, Shown below 15.50 mm ID x 3302.00 mm

1шт.

3

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

HOSE , Heater to Valve, Cut from 97252CX bulk hose, See below 15.50 mm ID x 127.00 mm

1шт.

4

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

HEATER HOSE - Heater to valve to chassis, Cut from 97252CX bulk hose, See below 15.50 mm ID x 2921.00 mm

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special, Retaining #24

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1989808C1

SUPPORT

- cable, heater valve control, if used

1шт.

9

1989809C1

ARM

LEVER - heater control, if used

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, (Replaces 379310R1) #25, .207" Dia, E-Type

1шт.

11

1954626C1

SPRING CLIP

CLIP - spring, cable retainer, if used

1шт.

12

1989810C1

CABLE

- control, heater valve, if used

1шт.

13

1276164C1

HOSE

ASSEMBLY - evaporator discharge, 106 inch (2700 mm) long

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

16

1276163C2

HOSE

ASSEMBLY - drier to cab, 118 inch (3000 mm) long

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system, mounting hardware listed on page 9E-24

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1990756C1

VALVE

- expansion (Replaces valve 98370C3)

1шт.

22

83822C1

TAPE

- 24 inch (610 mm) long, cut from 1954475C1 bulk tape, see below

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch, if used

3шт.

28

109311H

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

30

98158C1

BRACKET

- heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

32

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type (Replaces clamp 27291R1) 1", Insul, 3/8" Bolt

1шт.

33

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

123855A1

CONTROL

CABLE - heater valve control, replaces items 8 - 12 and 26 on some models

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE - bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.
