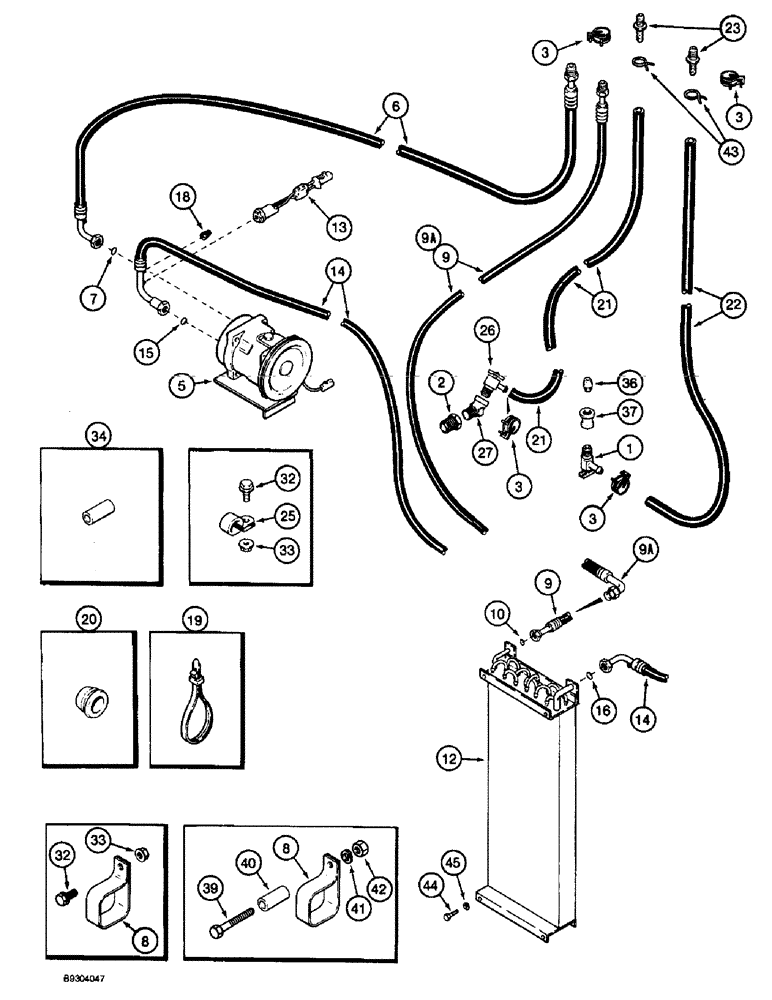

Запчасти Case IH 2055 (9E-28) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater, 90 degree

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

if used 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

2

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female, if used

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special, Retaining #24

2-4шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning, parts list page 9E-34

1шт.

6

1982311C2

LARGE HOSE

HOSE ASSEMBLY - 167-5/16 inch (4250 mm) long, Serial Range: compressor-cab

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

8

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

9

1321292C4

HOSE

- condenser to cab, 187 inch (4743 mm) long, no longer used, order 1546385C1 hose, item 9A

1шт.

9a

1546385C1

HOSE

ASSEMBLY - condenser to cab, 192-29/32 inch (4900 mm) long

1шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

84581C1

CONDENSER

- air conditioning, hose connectors on side

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

14

1977857C4

HOSE

ASSEMBLY - compressor to condenser, 77-1/2 inch (1970 mm) long, replaces 1977857C3 1811 mm long hose

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

18

1250593C1

FITTING

ADAPTER - straight, special, 1/4 inch

2шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, retaining

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

2шт.

21

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

- Heater supply, Cut from 97252CX bulk hose, See below 15.50 mm ID x 3700.00 mm

1шт.

22

1982313C2

HEATER HOSE,15.50 mm ID x 4803.00 mm

Return Cut From 97252CX Bulk Hose, See Below 15.50 mm ID x 4803.00 mm

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special, heater hose inlet fitting

2шт.

25

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type, Hose retaining to coolant bottle (Replaces clamp 299608C1) 1 1/4", Insul, 1/2" Bolt

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - heater, 90 degree

1шт.

27

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 45 degree, 3/8 inch PT x female PT

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

- tubular, 21/64 x 1/2 x 1-13/64 inch

2шт.

36

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - straight, 1/2 PT x 2 inch

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

COUPLER - pipe reducer, 1/2 x 3/8 inch

1шт.

39

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

40

580883R1

SPACER,3/8" Pipe x 3 1/4"

- 1/2 x 3-1/4 inch

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

425-106

NUT,3/8"-16, Cl 5

1шт.

43

214-1314

HOSE CLAMP,#14, 7/8", Spring

CLAMP, HOSE, , If Used #14, 7/8", Spring

2шт.

44

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.
