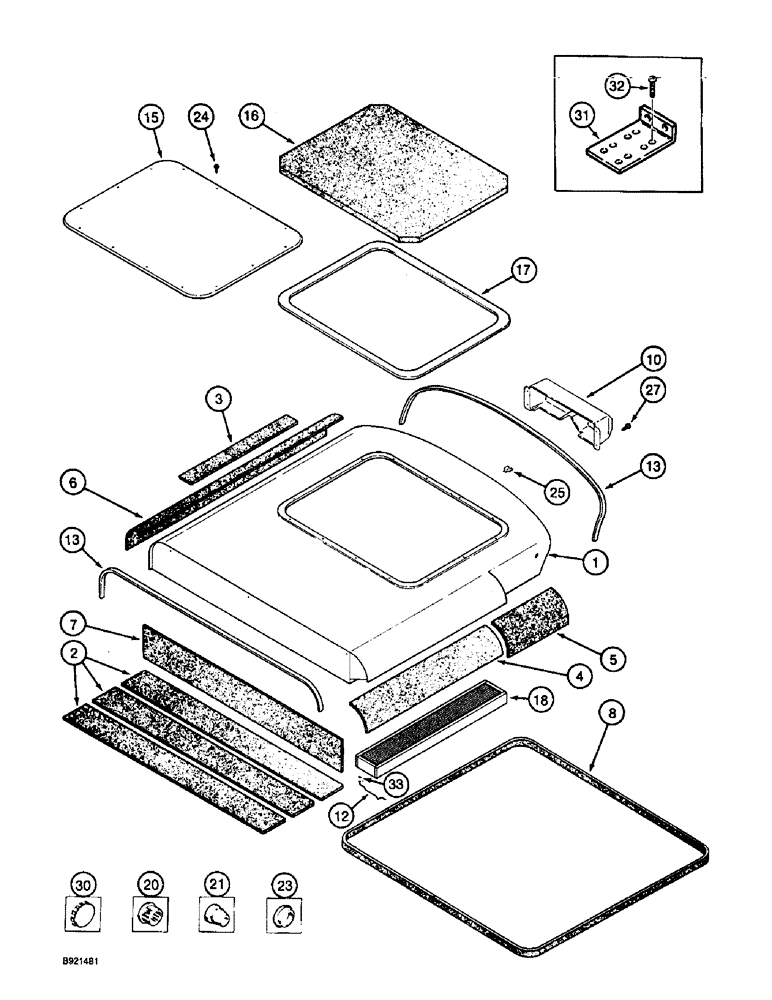

Запчасти Case IH 2055 (9E-22) - CAB ASSEMBLY, ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab

1шт.

2

1276339C2

INSULATOR

PANEL - insulation top, 12 inch (305 mm) long, cut from 1327515C2 bulk seal, see below

3шт.

3

1281980C2

INSULATOR

PANEL - insulation, left-hand top, 12 inch (305 mm) long, cut from 1327515C2 bulk seal, left-hand top, see below

1шт.

4

1276337C2

RUBBER INSULATOR

PANEL - 10-1/2 (266) x 38-1/8 (970) x 1/2 inch (13 mm) thick, cut from 1327515C2 bulk seal, right-hand rear, see below

1шт.

5

1276336C2

INSULATOR

PANEL - insulation, right-hand front, 12 inch (305 mm) long, cut from 1327515C2 bulk seal, right-hand front, see below

1шт.

6

1276338C2

INSULATOR

PANEL - insulation, left-hand side, 12 inch (305 mm), cut from 1327515C2 bulk seal, left-hand side, see below

1шт.

7

1281740C2

INSULATOR

PANEL - insulation, rear, 60 inch (1524 mm) long, cut from 1327515C2 bulk seal, rear, see below

1шт.

8

180637C2

SEAL

TRIM - edge, 220 inch (5588 mm) long, cut from 182747C1 bulk trim, roof, see below

1шт.

10

1990987C1

COVER

ASSEMBLY - windshield wiper motor

1шт.

REF

INSTRUCTION

DECAL - Cotton Express, see item 12 on page 9F-28

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

1281996C1

SEAL

TRIM - roof, front and rear, 72 inch (1829 mm) long, cut from 1327666C1 bulk trim, see below

1шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C2

INSULATOR

COVER - insulation, access cover

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

REF

INSTRUCTION

FILTER - cab, see item 12 shown on page 9E-20

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

2шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- rubber, diagonal cut, 5/8 inch ID

2шт.

23

353-252

PLUG,1"

- button, 1 inch

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

30

179093

HOLE PLUG BUTTON,9/32"

8шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

2шт.

31

3177098R2

SUPPORT

- beacon lamp

1шт.

32

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

6шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

1327515C2

INSULATOR

SEAL - bulk sheet, 54 (1372) wide x 120 (3048) long x 1/2 inch (13 mm) thick (Replaces bulk seal 1327515C1)

1шт.

182747C1

DOOR SEAL

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.

1327666C1

SEAL

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
