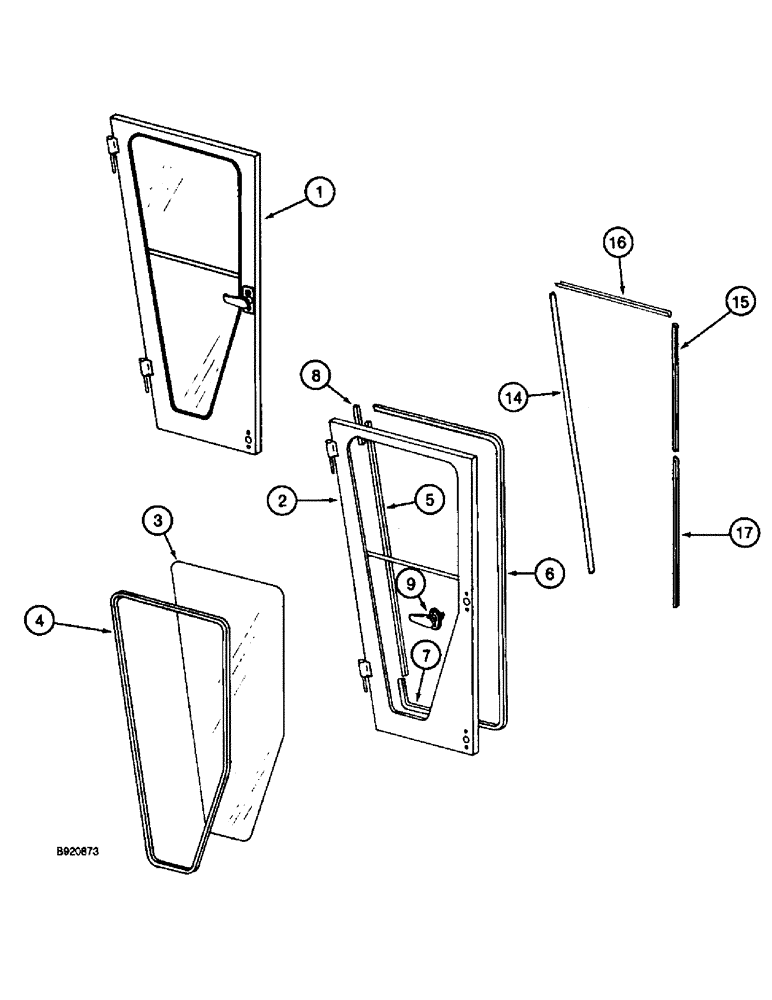

Запчасти Case IH 2055 (9E-14) - CAB ASSEMBLY (10) - CAB & AIR CONDITIONING

1

1329477C3

DOOR

ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

3

198184C1

GLASS

- cab, right-hand front

1шт.

4

180606C2

SEALING STRIP

SEAL - door glass, 130-1/2 (3315 mm) long, cut from 198131C2 bulk seal, see below

1шт.

5

180608C3

SEALING STRIP

TRIM - door front, edge, 52 inch (1321 mm) long, cut from 198522C2 bulk trim, see below

1шт.

6

180609C2

SEALING STRIP

TRIM - door rear, upper and lower, edge, 99 inch (2515 mm) long, cut from 198522C2 bulk trim, see below

1шт.

7

1330065C1

SEALING STRIP

TRIM - lower door, edge, 19 inch (483 mm) long, cut from 198522C2 bulk trim, see below

1шт.

8

1330066C1

SEALING STRIP

TRIM - upper door, front corner, edge, 3-5/16 inch (84 mm) long, cut from 198522C2 bulk trim, see below

1шт.

9

1329468C1

HANDLE

ASSEMBLY - door, parts list page 9E-16

1шт.

14

180618C1

STRIP

TRIM - upper front, edge, 54 inch (1372 mm) long, cut from 1330108CX bulk trim, see below

1шт.

15

1330194C1

ORNAMENTAL STRIP

TRIM - upper rear cab door opening, edge, 25 inch (635 mm) long, cut from 1330108CX bulk trim, see below

1шт.

16

180617C1

STRIP

TRIM - upper cab door opening, edge, 26-1/8 (664 mm) long, cut from 1330108CX bulk trim, 26-1/8 inch, see below

1шт.

17

1330195C1

ORNAMENTAL STRIP

TRIM - lower rear, cab door opening, edge, 27 inch (686 mm) long, cut from 1330108CX bulk trim, see below

1шт.

198131C2

SEAL, GLASS

SEAL - bulk, 120 inch (3048 mm) long

1шт.

198522C2

GASKET

SEAL - rubber, 600 inch (15240 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.
