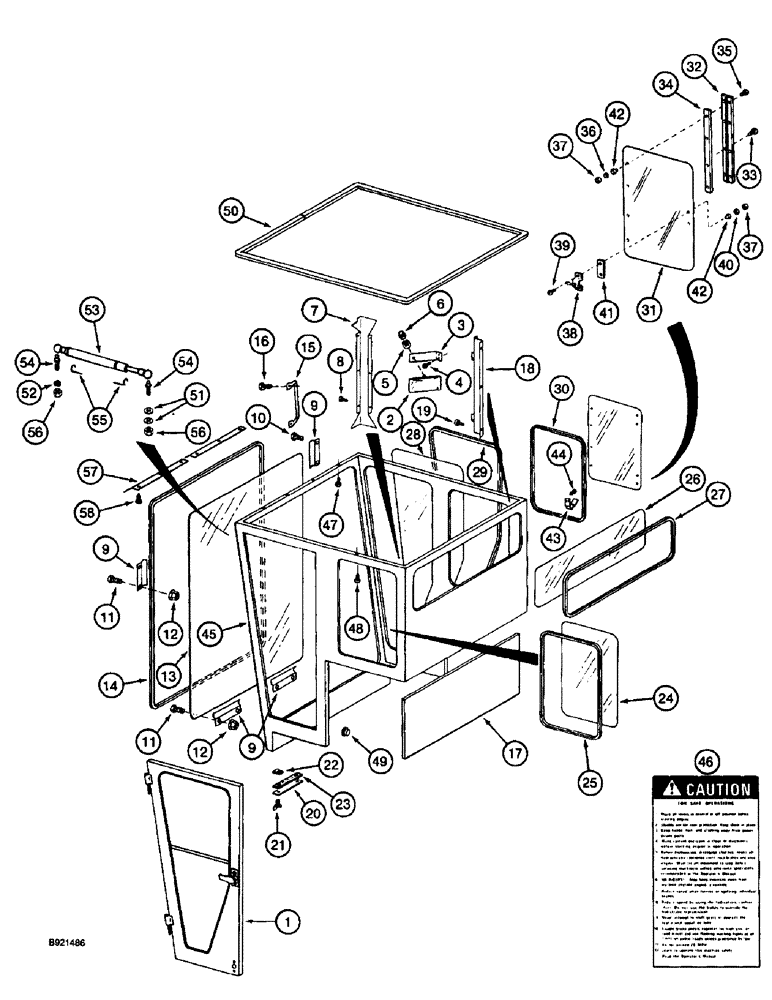

Запчасти Case IH 2055 (9E-10) - CAB ASSEMBLY (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, order from Machinery Price List, with heater and air conditioning

1шт.

1

1329477C3

DOOR

ASSEMBLY - cab, parts list page 9E-14

1шт.

2

66518C1

MIRROR

- interior rear view

1шт.

3

1329283C1

ANGLE BAR

BRACKET - mirror mounting

1шт.

4

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch, polyseal

2шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

329-106

NUT,3/8"-16, G8

1шт.

7

1276305C1

SUPPORT

- hose cover, left-hand

1шт.

8

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

9

196742C3

LARGE PLATE

SUPPORT - windshield retainer

5шт.

10

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd

2шт.

11

113-198

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

6шт.

12

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

6шт.

13

1957276C1

GLASS

- cab windshield (Replaces glass 198242C1)

1шт.

GLASS IS TEMPERED SAFETYPLATE OR FLOAT, BLUE-GREEN TINT

1шт.

14

180607C2

STRIP

TRIM - windshield glass, 225 inch (5715 mm) long, cut from part number 198131C2 bulk trim, see below

1шт.

15

1321545C1

HANDLE

- grab

1шт.

16

113-198

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

2шт.

17

1321286C3

LINING

SHEET - foam insulation, rear, acoustical, used with 929460C1 adhesive, see below

1шт.

18

1987173C1

PANEL ASSY.

SUPPORT - filler, right-hand

1шт.

19

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

20

1301129C1

DOOR

- clean out

1шт.

21

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

- clean out cover

2шт.

22

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- U-type, 1/4 inch NC

2шт.

23

1301130C1

SEAL

- seal, 9-11/16 inch (246 mm) long, cut from part number 1300025C1 bulk hose, see below

1шт.

24

198244C1

GLASS

- left-hand rear

1шт.

25

180604C2

STRIP

TRIM - cab left-hand rear glass, edge, 87 inch (2210 mm) long, cut from part number 198131C2 bulk trim, see below

1шт.

26

198247C1

GLASS

- cab rear

1шт.

27

180605C2

STRIP

TRIM - cab rear glass, edge, 123 inch long, cut from part number 198131C2 bulk trim, see below

1шт.

28

198184C1

GLASS

- cab, right-hand front

1шт.

29

180606C2

SEALING STRIP

SEAL - cab right-hand front glass, 130-1/2 (3315 mm) long, cut from part number 198131C2 bulk seal, see below

1шт.

30

109594C1

SEAL

- right-hand rear window, 88 inch (2235 mm) long, cut from part number 1263038C1 bulk seal, see below

1шт.

31

1987172C1

GLASS

- right-hand rear window

1шт.

32

1301233C2

HINGE

- right-hand rear window

1шт.

33

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1/2 inch

4шт.

34

1301234C1

STRIP

SHIM - hinge, right-hand rear window

1шт.

35

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

4шт.

36

495-31022

WASHER,#10

4шт.

37

196922C1

LOCK NUT

- hex, self-locking, No. 10

6шт.

38

170404C1

HANDLE

- right-hand rear window lock

1-2шт.

39

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2-4шт.

40

495-31022

WASHER,#10

2-4шт.

41

183585C1

STRIP

SHIM - right-hand rear window

1-2шт.

42

896274C1

BUSHING

- window retainer cushion

6-8шт.

43

1281761C2

SPRING

- window latch

1шт.

44

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

2шт.

45

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

46

2753929R5

DECAL

- Caution, for safe operation

1шт.

47

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self-tapping, special, 5/16 inch

10шт.

48

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self-tapping, special

4шт.

49

1329797C1

PLUG

- tube, rubber

1шт.

50

180637C2

SEAL

TRIM - body to headliner joint, edge, 220 inch (5588 mm) long, cut from part number 182747C1 bulk trim, see below

1шт.

51

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

53

1280157C1

GAS STRUT

SPRING - gas, door control

1шт.

54

1340345C1

BALL STUD

STUD - ball

2шт.

55

1304647C1

CLIP

- retaining

2шт.

56

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

57

1288548C1

ANGLE BAR

ANGLE - deflector

2шт.

58

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

6шт.

929460C1

FLUID

ADHESIVE - fluid, 11 oz cartridge, purchase locally

1шт.

198131C2

SEAL, GLASS

SEAL - bulk, 120 inch (3048 mm) long

1шт.

1300025C1

GASKET

STRIP - seal, 12 inch (305 mm) long

1шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.

182747C1

DOOR SEAL

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.
