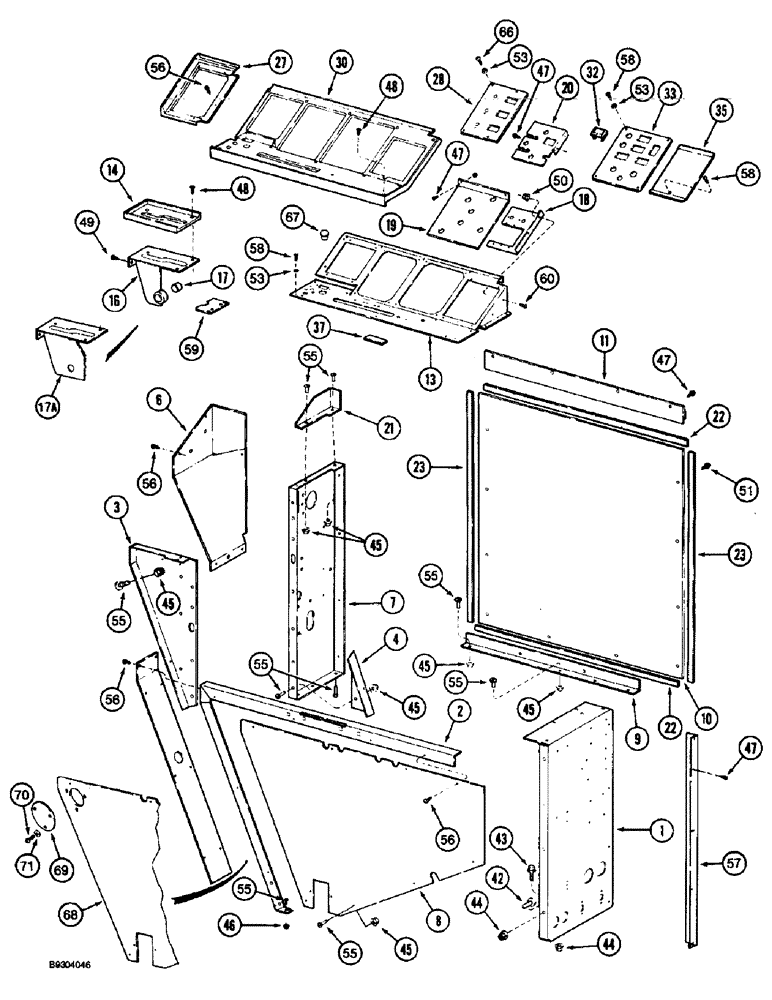

Запчасти Case IH 2055 (9E-04) - RIGHT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

1988764C2

SUPPORT

- console, rear

1шт.

2

193031C3

SUPPORT

FRAME - console, front

1шт.

3

195992C2

SUPPORT

- console extension

1шт.

4

195991C1

SUPPORT

- console extension, lower

1шт.

5

193034C1

SUPPORT

- console extension, front

1шт.

6

1283101C2

SUPPORT

- console extension, lower front

1шт.

7

1987556C2

COVER

SUPPORT - console, front (Replaces support 1987556C1)

1шт.

8

193035C3

LARGE PLATE

PLATE - console inner, if used

1шт.

9

193033C2

ANGLE

- lower, right-hand console

1шт.

10

1301218C2

COVER

PLATE - outer, right-hand console

1шт.

11

1301334C1

SUPPORT

- outer cover, right-hand

1шт.

13

1301210C6

SUPPORT

- upper console, right-hand

1шт.

14

198988C1

COVER

- hydrostatic drive support

1шт.

16

193277C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - hydrostatic drive, with bushing, if used

1шт.

17

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- drive support

1шт.

17a

1994841C1

SUPPORT

- hydrostatic drive, without bushing, if used

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - rear lamp machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - rear lamp front control

1шт.

21

1327501C1

SUPPORT

- front panel

1шт.

22

1301228C1

STRIP

SEAL - adhesive-backed, 26-11/16 inch (678 mm) long, cut from 195917C2 bulk seal, right-hand console cover, see below

2шт.

23

187788C1

SEALING STRIP

FOAM - adhesive-backed, 27-13/64 inch (691 mm) long, cut from 195917C2 bulk foam, right-hand console cover, see below

2шт.

27

1280125C1

FRAME

- control panel, front

1шт.

28

1280158C2

PANEL

- control, front

1шт.

30

87366C1

COVER

- console instrument panel

1шт.

32

245334C1

PLUG

- panel switch cover, right-hand

5шт.

33

1276211C1

PANEL

- machine control

1шт.

35

187573C1

COVER

- fuse panel

1шт.

37

187780C1

STRIP

FOAM - adhesive-backed, 3 inch (76 mm) long, cut from 195917C2 bulk foam, see below

2шт.

42

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

43

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

13шт.

46

1254276C1

PUSH-ON NUT

- push-on type, 5/16 inch

1шт.

47

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

12шт.

48

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

21шт.

195917C2

SEAL

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

49

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

4шт.

50

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

51

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

53

1329968C1

WASHER

- oval head, finishing, No. 10

8шт.

55

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

13шт.

56

260-1358

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2"

24шт.

57

1285451C1

ANGLE BAR

ANGLE - right-hand corner

1шт.

58

260-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 inch

4шт.

59

1285462C1

LARGE PLATE

PLATE - propulsion restrictor

1шт.

60

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss head, polyseal, 1/4 NC x 1/2 inch

2шт.

66

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10-16 x 1/2 inch

4шт.

67

183617C1

PLUG

- right-hand console, ether start button

1шт.

68

111615A1

LARGE PLATE

PLATE - console, inner, with hole, if used

1шт.

69

1994886C1

COVER

- inner plate, used with item 68 plate, if used

1шт.

70

260-1358

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2", If used

3шт.

71

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch, if used

3шт.
