(8-74) - DRUM SPREAD CYLINDER ASSEMBLY

Запчасти Case IH 2055 (8-74) - DRUM SPREAD CYLINDER ASSEMBLY (07) - HYDRAULICS

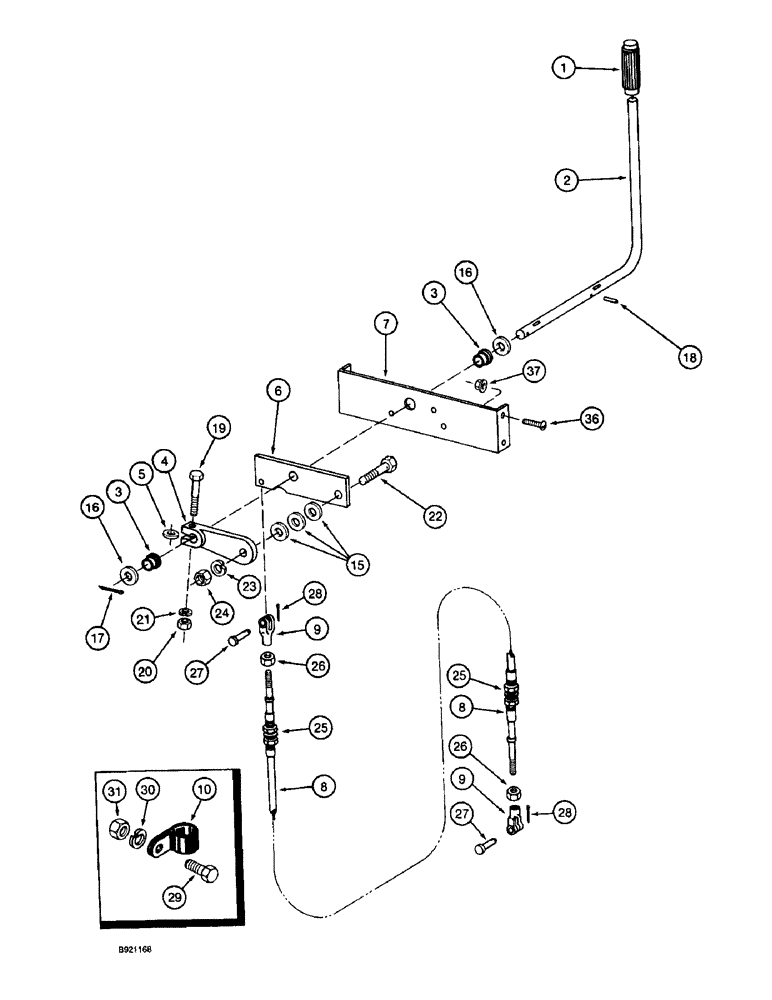

Схема запчастей Case IH 2055 - (8-74) - DRUM SPREAD CYLINDER ASSEMBLY (07) - HYDRAULICS
1
18
15
8
26
9
17
30
8
21
36
6
27
4
3
26
7
37
19
25
22
23
27
5
28
25
2
29
9
16
10
3
31
16
20
28
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1542544C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum spread, 2-1/4 (57) ID x 14-3/4 inch (375 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282222C1

PISTON ROD

ROD - piston

1шт.

3

127919C1

GLAND

- cylinder

1шт.

4

1543363C1

PISTON

- cylinder

1шт.

5

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 153362C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - piston rod

1шт.

Part of Seal Kit P/N 153362C1

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of Seal Kit P/N 153362C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 153362C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 153362C1

1шт.

11

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 153362C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

Part of Seal Kit P/N 153362C1

1шт.

13

439-11664

HEADED PIN,1" x 4"

PIN - headed, 1 x 4 inch, grade 2, cylinder to toolbar

2шт.

14

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

PIN - headed, 1 x 3-1/2 inch, grade 2, cylinder to toolbar

2шт.

15

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

4шт.

1543362C1

SEAL KIT

KIT - seal, Includes: Ref. 6-12

1шт.
