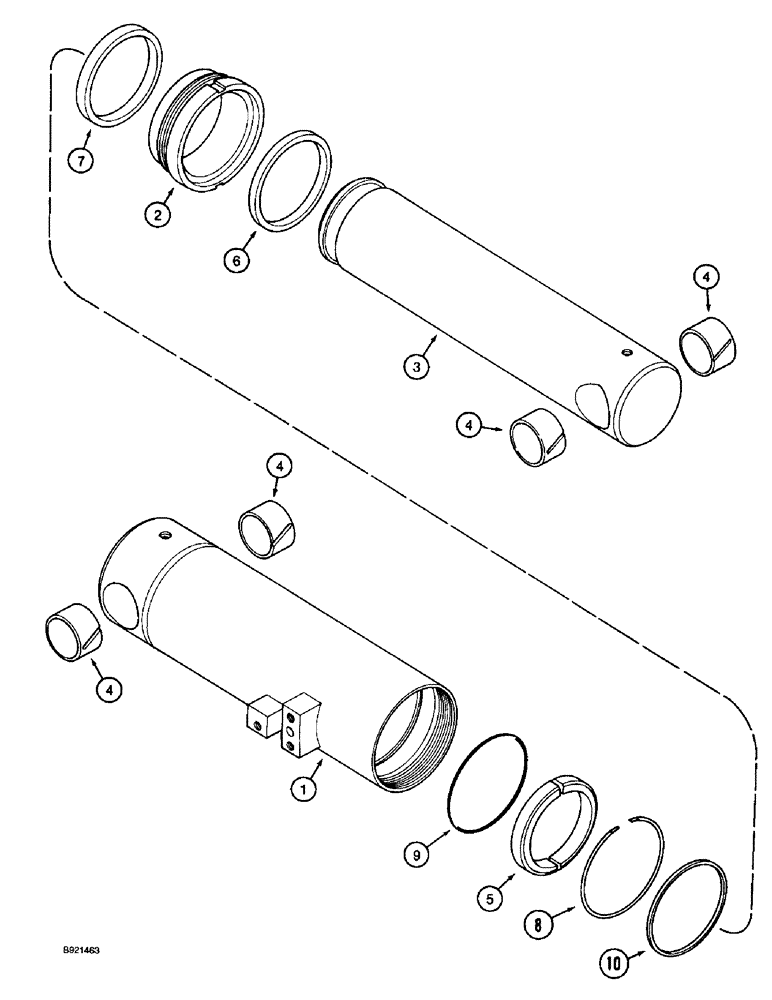

Запчасти Case IH 2055 (8-72) - DRUM TILT CYLINDER ASSEMBLY (07) - HYDRAULICS

1343761C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum tilt, 4 (102) ID x 7-1/4 inch (185 mm) stroke, no longer available, order 107785A1 cylinder assembly

1шт.

107785A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum tilt, 4 (102) ID x 7-1/4 inch (185 mm) stroke (Replaces cylinder assembly 1343761C1)

1шт.

1

107840A1

TUBE

- cylinder

1шт.

2

1980306C1

GLAND

- cylinder

1шт.

3

1346280C1

PISTON ROD

ROD - piston

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.

5

NSS

NOT SOLD SEPARAT

PISTON - two-piece

1шт.

1980307C1

SEAL KIT

KIT - seal service

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.
