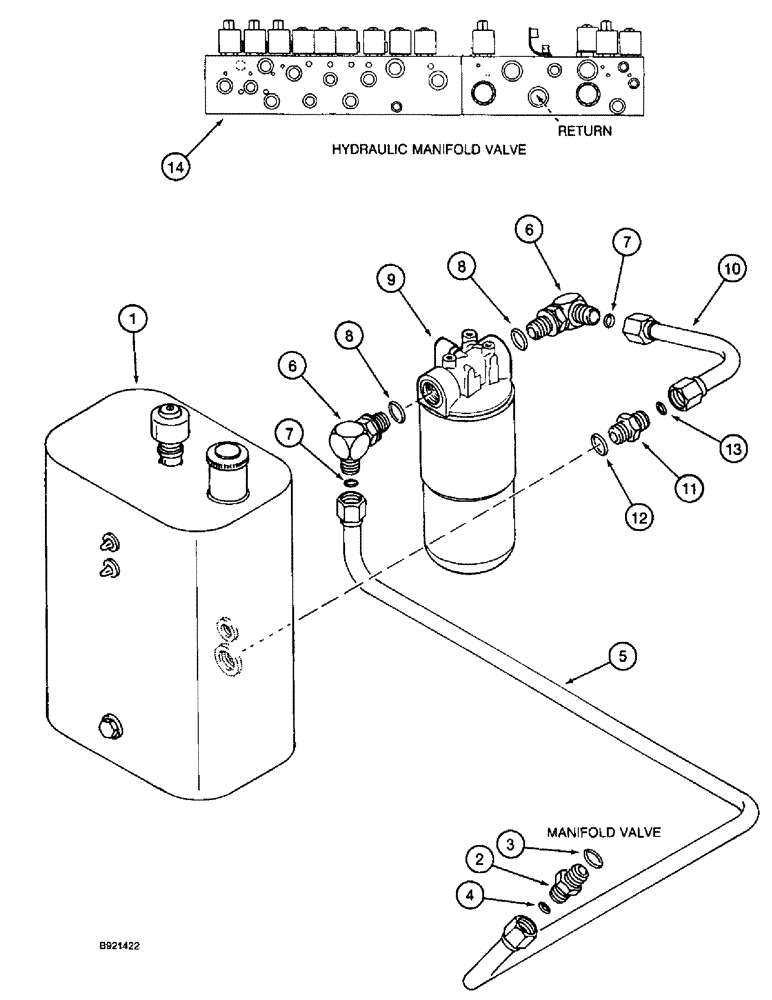

Запчасти Case IH 2055 (8-70) - HYDRAULIC RETURN SYSTEM TO RESERVOIR (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon, see page 8-2 for correct assembly and parts list

1шт.

2

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end -025, 90 Duro, 1.176" ID x .070" Thk

1шт.

5

1988942C1

TUBE

- tank return (Replaces 1988942C1)

1шт.

6

201-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

- 90 degree, 1-11/16-12 face seal x 1-5/8-12 inch adj O-ring boss

2шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end -025, 90 Duro, 1.176" ID x .070" Thk

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

9

87784C91

FILTER ASSY

FILTER ASSEMBLY - system return, parts list page 8-6

1шт.

10

1988943C1

HYD TUBE,1.25" OD

TUBE - valve return (Replaces 1988943C1)

1шт.

11

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

13

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end -025, 90 Duro, 1.176" ID x .070" Thk

1шт.

14

1986598C3

VALVE

ASSEMBLY - manifold, parts list pages 8-32 and 8-34

1шт.
