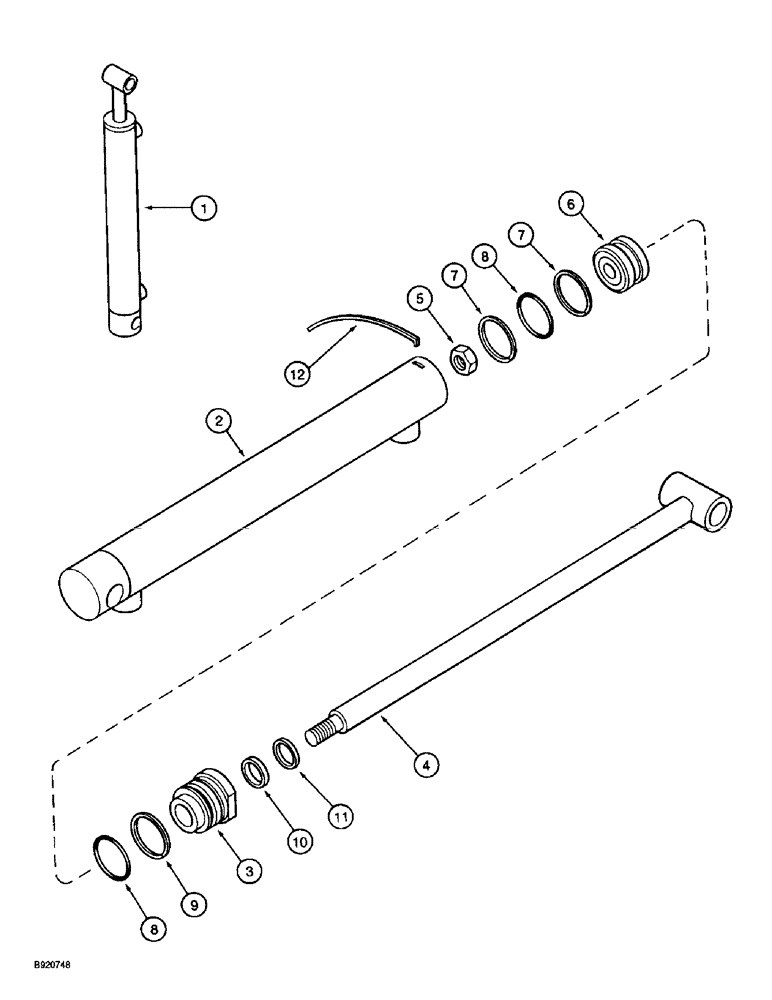

Запчасти Case IH 2055 (8-68) - BASKET DOOR CYLINDER (07) - HYDRAULICS

1

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

CYLINDER ASSEMBLY - basket door hydraulic, 2 (51) ID x 14-3/4 inch (374 mm) stroke

2шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

1282222C1

PISTON ROD

ROD - piston

1шт.

5

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

108640C2

PISTON

- cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit P/N 63884C92

1шт.

8

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

2шт.

Part of Seal Kit P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Seal Kit P/N 63884C92

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of Seal Kit P/N 63884C92

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Seal Kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, Includes: Ref. 7-12

1шт.
