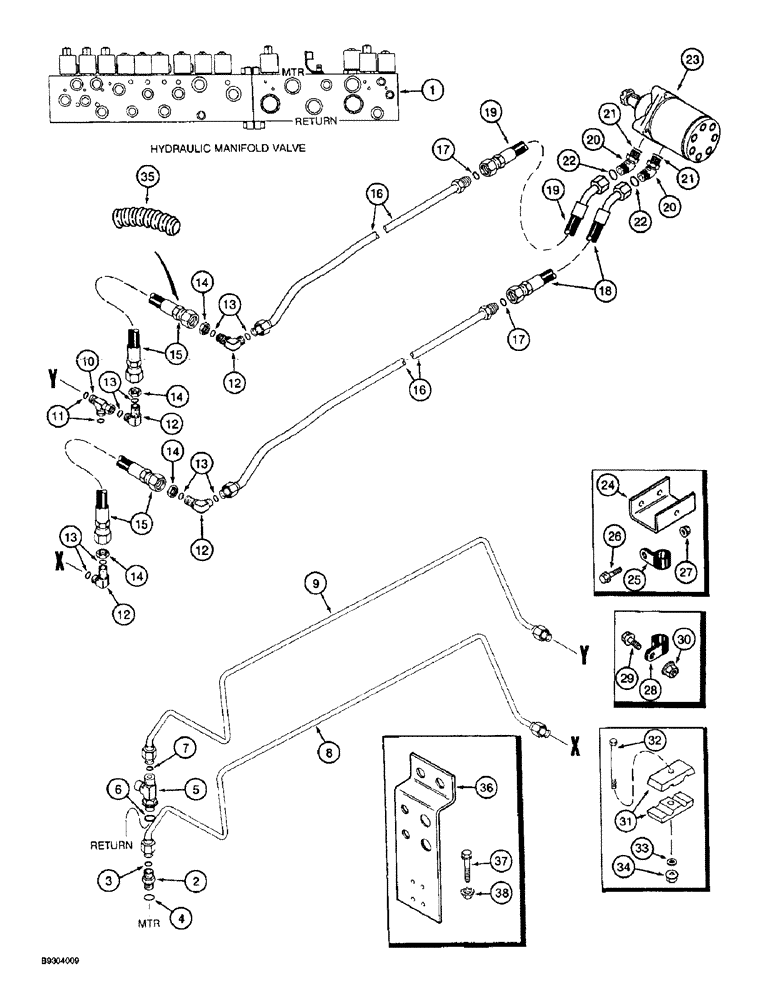

Запчасти Case IH 2055 (8-62) - CONVEYOR UNLOADER MOTOR SYSTEM (07) - HYDRAULICS

1

1986598C3

VALVE

ASSEMBLY - manifold, parts lift pages 8-32 and 8-34

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

5

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

- 1-3/16-12 face seal branch x face seal x 1-1/16-12 inch adj O-ring boss

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

2шт.

8

1988938C1

TUBE

- conveyor, supply

1шт.

9

1988939C1

TUBE

- conveyor, return

1шт.

10

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

- 1-3/16-12 inch face seal branch x face seal x swivel face seal

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

12

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

- 90 degree, 1-3/16 12 face seal x bulkhead face seal

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

NUT - hex, lock, bulkhead, 1-3/16-12 inch NF

4шт.

15

1984274C1

HOSE,19.05mm ID x 2500mm L

- conveyor bulkhead, 98-7/16 inch (2500 mm) long

2шт.

16

1983197C2

HYD TUBE,0.75" OD

TUBE - conveyor, bulkhead

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

1984272C1

HOSE

- conveyor supply, 49-7/32 inch (1250 mm) long, used on 4 Row Wide or 5 Row Narrow models

1шт.

18

140183A1

HYDRAULIC HOSE

HOSE - conveyor supply, 68 inch (1732 mm) long, used on 5 Row Wide models

1шт.

19

1984273C1

HOSE

- conveyor return, 49 inch (1250 mm) long, used on 4 Row Wide or 5 Row Narrow models

1шт.

19

140185A1

HOSE

- conveyor return, 67 inch (1707 mm) long, used on 5 Row Wide models

1шт.

20

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

45°, 1 3/16"-12 x 7/8"-14. Adj, ORFS

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

MOTOR ASSEMBLY - conveyor unloader, parts list page 8-64

1шт.

24

1349851C1

SUPPORT

BRACKET - conveyor hose support

1шт.

25

515-25254

CLAMP,1", Insul, 1/2" Bolt

Hose retaining 1", Insul, 1/2" Bolt

2шт.

26

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Hose retaining 3/4", Insul, 1/2" Bolt

2шт.

29

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

1546027C1

CLAMP

- double, 3/4 inch ID

2шт.

32

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

33

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

35

1546058C2

PROTECTOR

SLEEVE - hose guard, 54 inch (1372 mm) long

1шт.

Also used with hoses shown on pages 8-58 and 8-66.

1шт.

36

1349852C1

SUPPORT

BRACKET - bulkhead

1шт.

Also used with hoses shown on pages 8-58 and 8-66.

1шт.

37

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

Also used with hoses shown on pages 8-58 and 8-66.

1шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

Also used with hoses shown on pages 8-58 and 8-66.

1шт.
