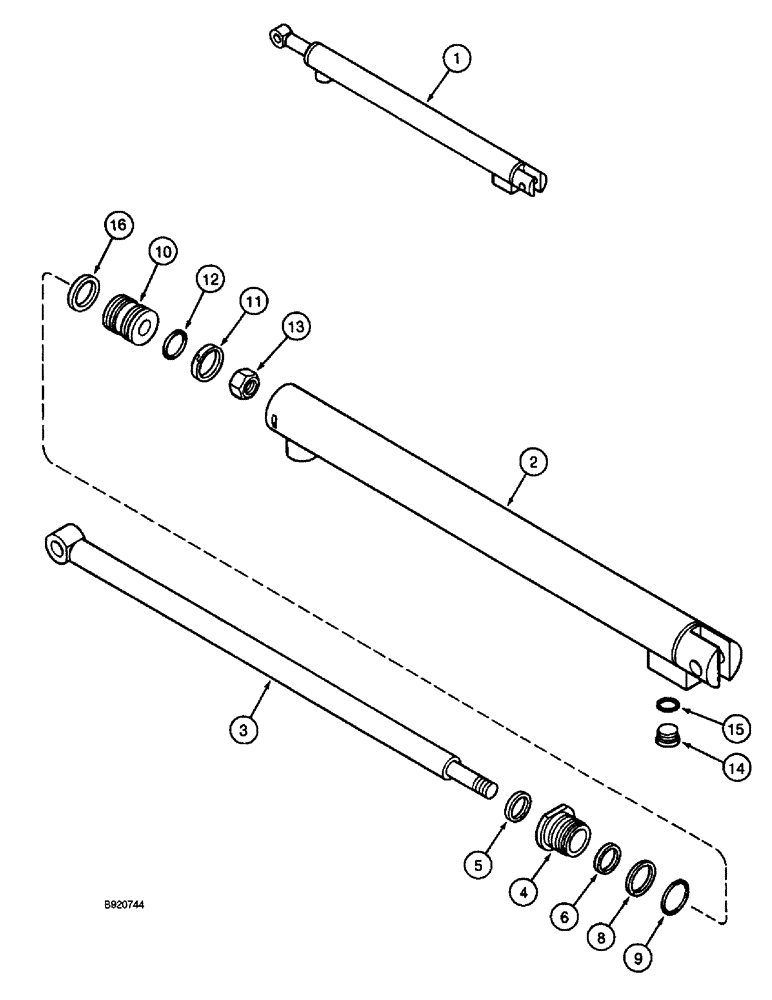

Запчасти Case IH 2055 (8-60) - BASKET COMPACTOR CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - basket compactor, 1-1/2 (38) ID x 19-3/4 inch (501 mm) stroke (Replaces cylinder assembly 1343726C2)

2шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

1285720C1

ROD

- piston

1шт.

4

1343723C1

GLAND

- cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 92611C3

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod, urethane

1шт.

Part of Seal Kit P/N 92611C3

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit P/N 92611C3

1шт.

9

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- 1-5/16 ID x 3/32 inch wide

1шт.

Part of Seal Kit P/N 92611C3

1шт.

10

92608C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of Seal Kit P/N 92611C3

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

Part of Seal Kit P/N 92611C3

1шт.

13

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut 9411658) 5/8"-11, GC

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

If used (Replaces plug 224582C1) Hex Soc, 3/4"-16 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD tube, if used

1шт.

Part of Seal Kit P/N 92611C3

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 92611C3

1шт.

92611C3

SEAL KIT

KIT - seal, Includes: Ref. 5-9, 11, 12, 15 and 16

1шт.
