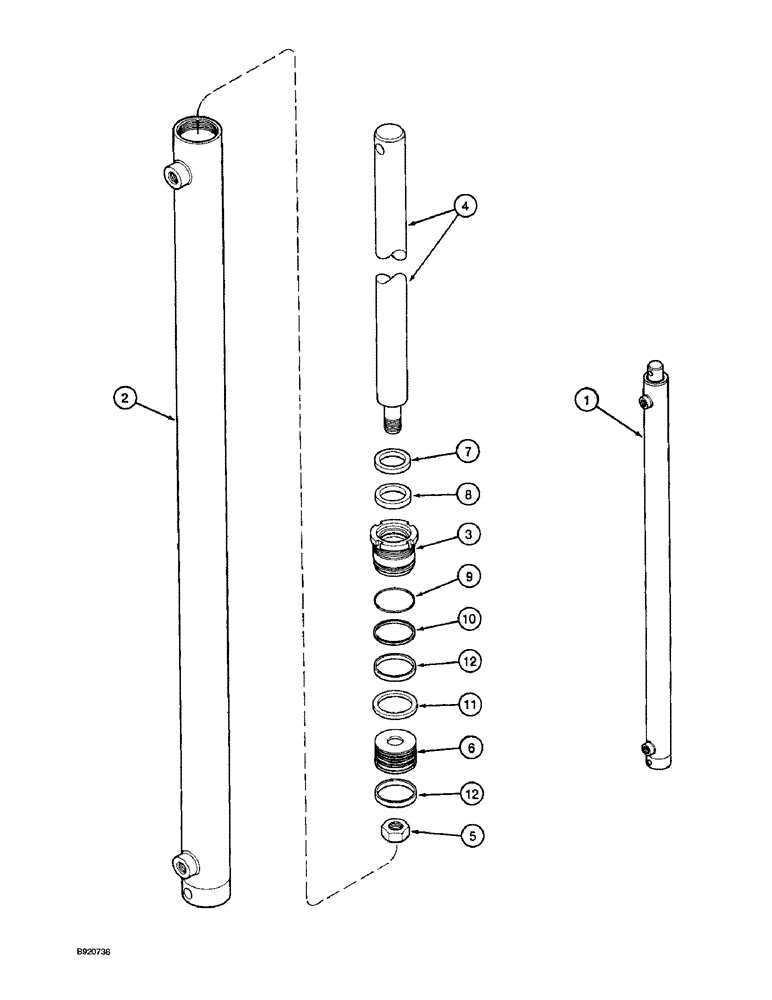

Запчасти Case IH 2055 (8-54) - BASKET LIFT MASTER CYLINDER (07) - HYDRAULICS

1

1282276C92

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 1828.8mm Stroke

CYLINDER ASSEMBLY - master, basket lift, 3-1/2 (90) ID x 72 inch (1829 mm) stroke, if used

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

1286338C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

1286336C1

PISTON ROD

ROD - piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

6

1286337C1

JACK PISTON

PISTON - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

Part of Seal Replacement Kit P/N 1282390C1

1шт.

1282390C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 7-12

1шт.
