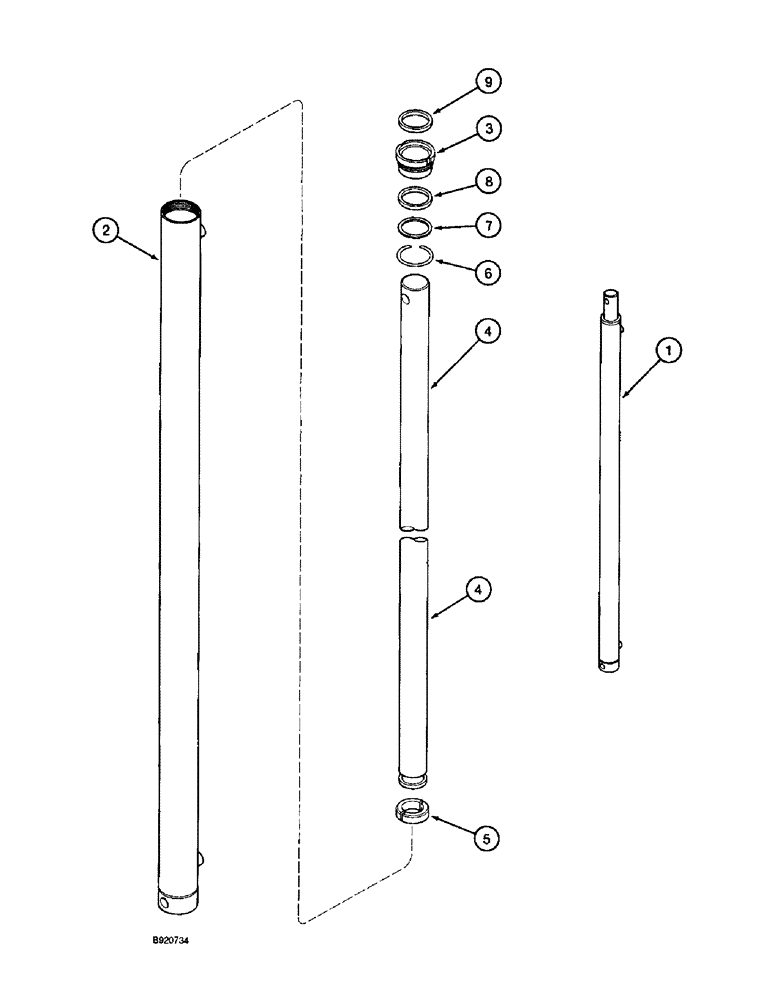

Запчасти Case IH 2055 (8-50) - BASKET LIFT SLAVE CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1282195C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - slave, basket lift, 3 (76) ID x 72 inch (1829 mm) stroke

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

1286335C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

1286331C1

PISTON ROD

ROD - piston

1шт.

5

1286332C1

RETAINER

- piston rod, 2 halves

1шт.

6

1286333C1

CIRCLIP

RING - retaining

1шт.

7

1286334C1

WASHER

RING - backup

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Replacement Kit P/N 1282389C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Replacement Kit P/N 1282389C1

1шт.

1282389C1

SEAL KIT

KITseal replacement, Includes: Ref. 8 and 9

1шт.
