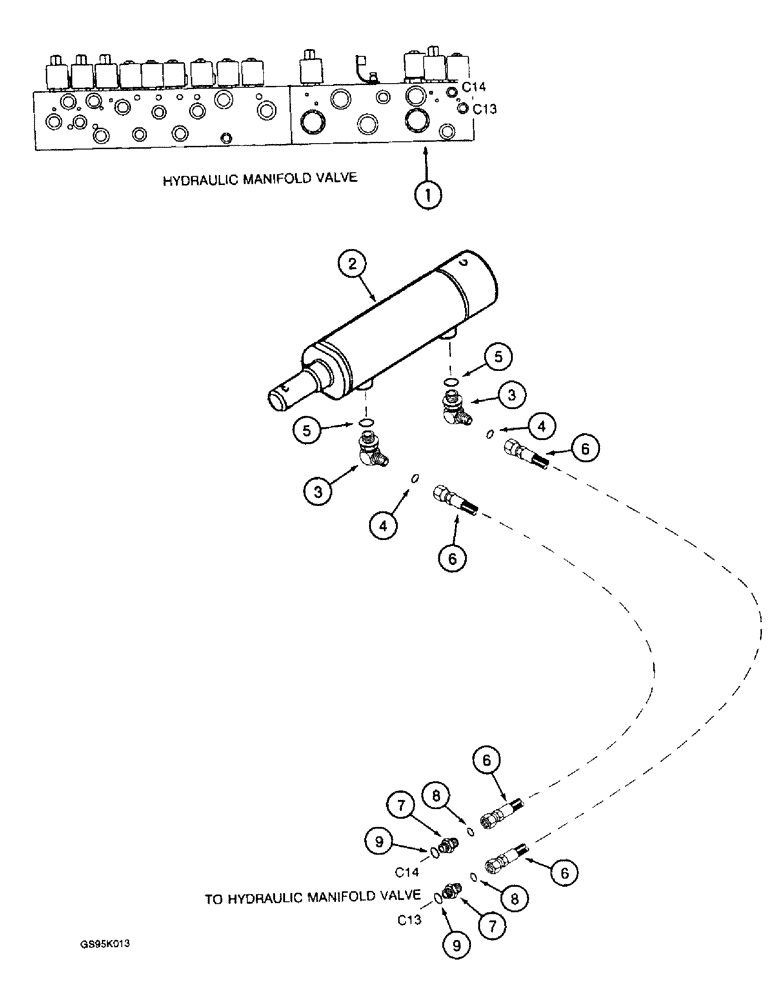

Запчасти Case IH 2055 (8-44) - FAN ENGAGEMENT CYLINDER SYSTEM (07) - HYDRAULICS

1

1986598C3

VALVE

ASSEMBLY - manifold, parts list pages 8-32 and 8-34

1шт.

2

133405C92

CYLINDER

ASSEMBLY - fan engagement, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, parts list page 8-46

1шт.

2

87337239R

REMAN-HYD CYLINDER

2055 CASE IH COTTON EXPRESS COTTON PICKER, Assembly fan engagement, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke (4/93-), Reman for New PN 133405C92

1шт.

2

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS

2шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

1шт.

6

1990117C1

HOSE

- hydraulic, fan clutch cylinder engage and disengage, 63-3/4 inch (1620 mm) long

2шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss

2шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
