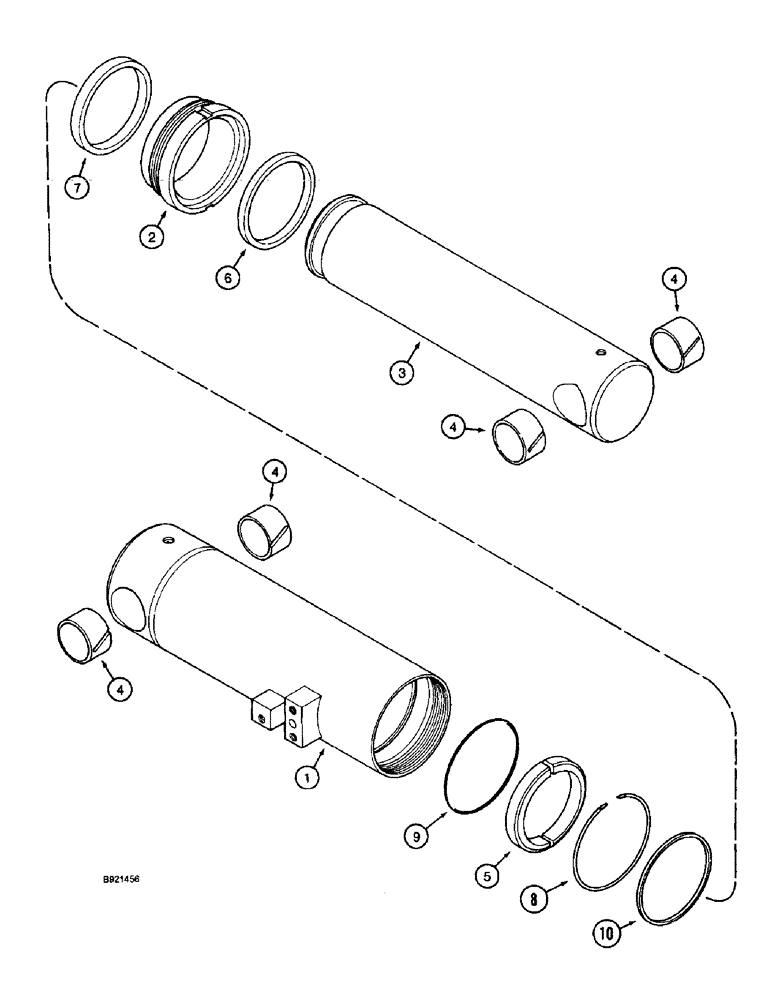

Запчасти Case IH 2055 (8-42) - DRUM LIFT CYLINDER (07) - HYDRAULICS

1343760C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum lift, 4 (102) ID x 10-11/16 inch (272 mm) stroke, no longer available, order 107784A1 cylinder assembly

2шт.

107784A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum lift, 4 (102) ID x 10-5/8 inch (269 mm) stroke

2шт.

1

107838A1

TUBE

- cylinder

1шт.

2

1980306C1

GLAND

- cylinder

1шт.

3

1346283C1

PISTON ROD

ROD - piston

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.

5

NSS

NOT SOLD SEPARAT

PISTON - two-piece

1шт.

1980307C1

SEAL KIT

KIT - seal service

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.
