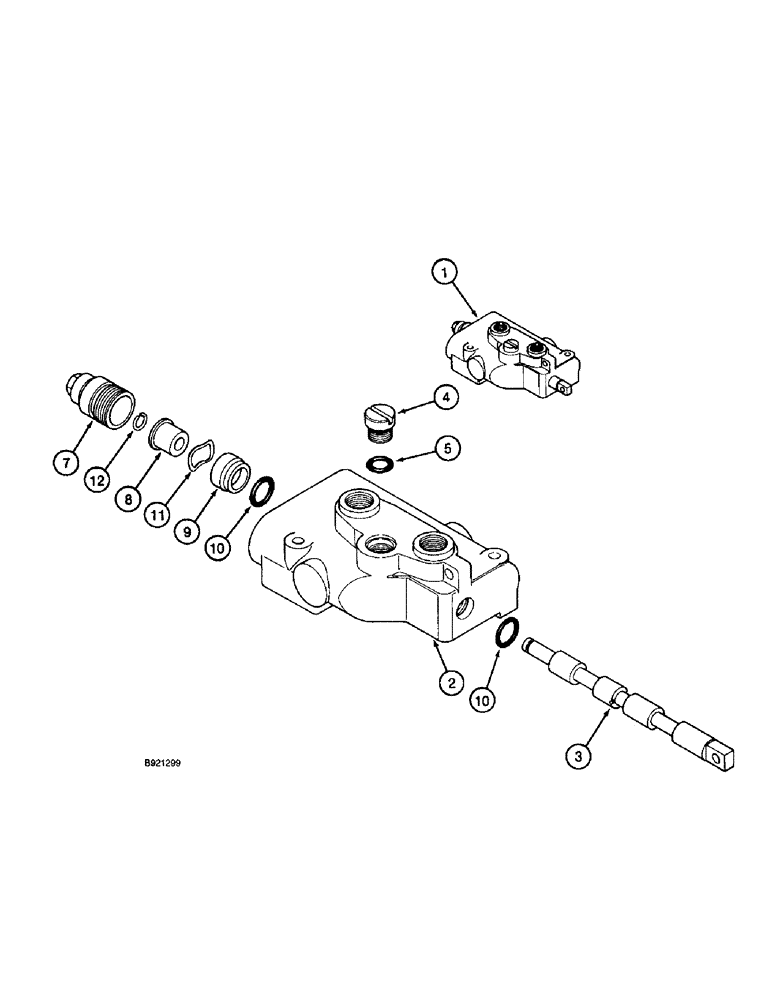

Запчасти Case IH 2055 (8-40) - DRUM HEIGHT CONTROL VALVE, WITH BELLEVILLE WASHER - ITEM 11 (07) - HYDRAULICS

1

104735A1

VALVE

ASSEMBLY - drum height control, no longer available, order 120813A2 valve assembly

2шт.

#1: 104735A1 is id'd w/ 30931CED

1шт.

#1: prints on both of these valves do not show #8 and #11. Correct set up is a spring with a retaing ring - no wavy washer

1шт.

1a

120813A2

CONTROL VALVE

VALVE ASSEMBLY - drum height control, replaces 120813A1 valve assembly

2шт.

REF: #1A - FOR 120813A2 VALVE ASSY. NEW KIT- SPOOL RETAINER IS 301221A1.

1шт.

#1: 120813A2 is id'd w/ 30931CEH

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

H229203

PLUG

ASSEMBLY - valve, included with 104735A1 and 120813A1 valve assemblies

1шт.

4

201844C91

PLUG

ASSEMBLY - valve, included with 120813A2 valve assembly

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Included with H229203 and 201844C91 plug assemblies

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - valve

1шт.

Part of KIT part number 87144C1.

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - valve

1шт.

Part of KIT part number 87144C1.

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - spool

1шт.

Part of KIT part number 87144C1.

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

Part of KIT part number 87144C1.

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - Belleville, bushing

1шт.

Part of KIT part number 87144C1.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of KIT part number 87144C1.

1шт.

87144C1

VALVE POPPET

KIT - spool retainer, used with 120813A1 and 120813A2 valves only, includes Refs. 7 through 12

1шт.
