(8-38) - DRUM HEIGHT CONTROL VALVE, WITH FLAT WASHER - ITEM 11

Запчасти Case IH 2055 (8-38) - DRUM HEIGHT CONTROL VALVE, WITH FLAT WASHER - ITEM 11 (07) - HYDRAULICS

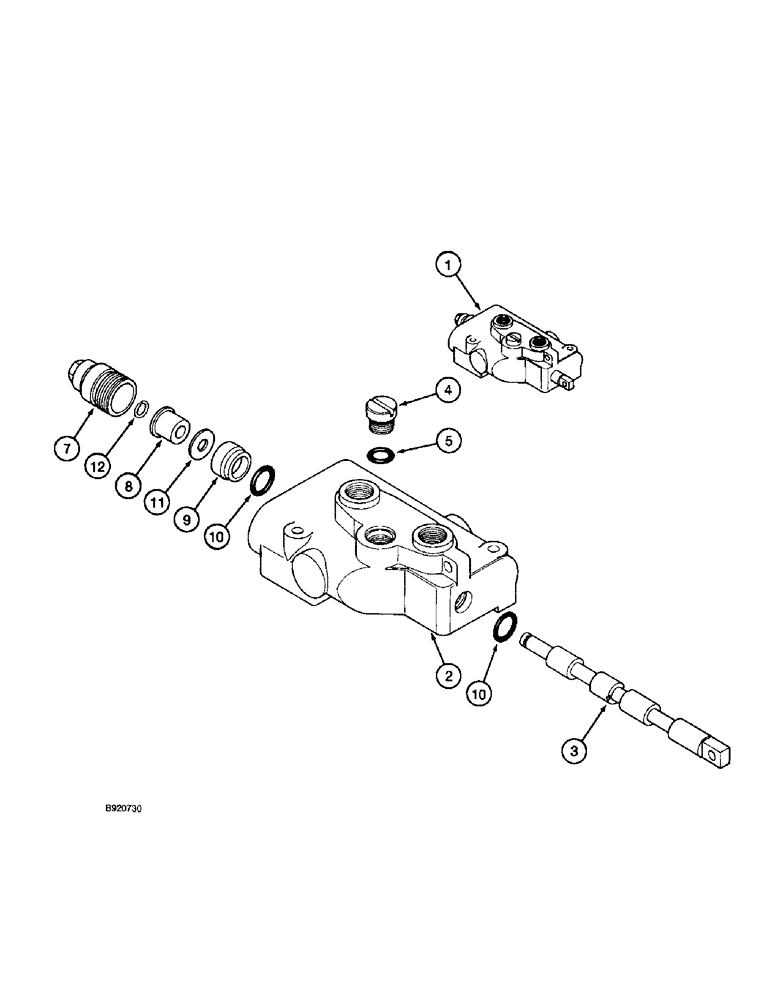

Схема запчастей Case IH 2055 - (8-38) - DRUM HEIGHT CONTROL VALVE, WITH FLAT WASHER - ITEM 11 (07) - HYDRAULICS
8
5
4
11
7
1
10
10
2
9
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

92667C92

VALVE

ASSEMBLY - drum height control, if used

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

H229203

PLUG

ASSEMBLY - valve

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

87144C1

VALVE POPPET

KIT - spool retainer

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - valve

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - spool

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER - flat, bushing

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.
