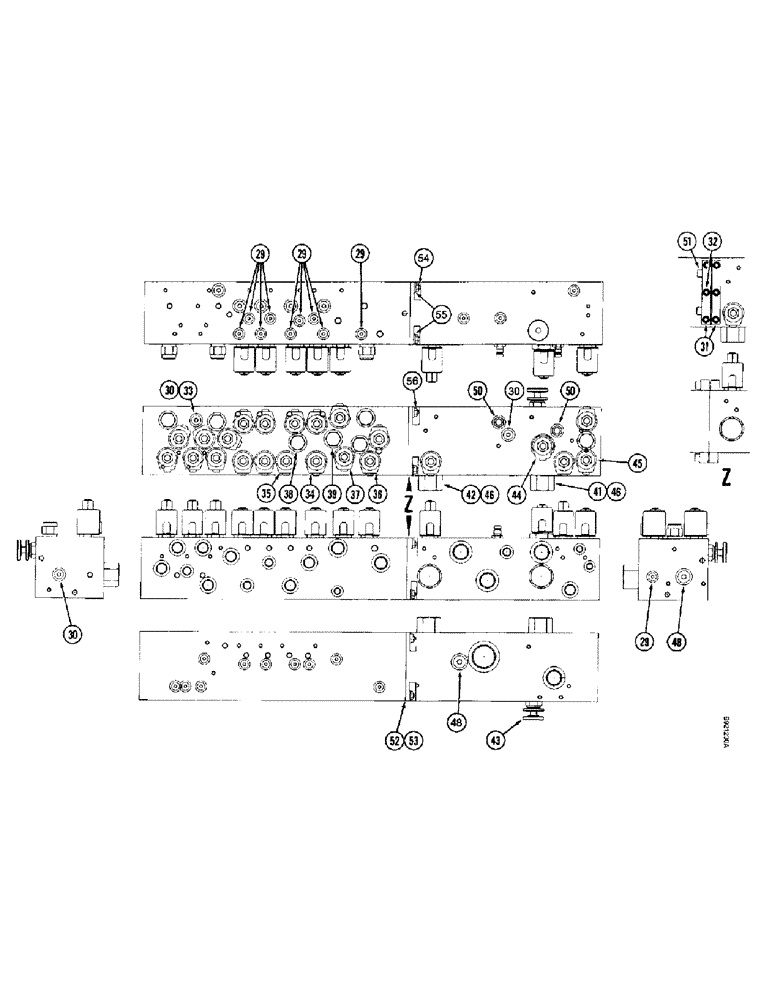

Запчасти Case IH 2055 (8-34) - HYDRAULIC MANIFOLD VALVE (07) - HYDRAULICS

1986598C3

VALVE

ASSEMBLY - manifold, continued from page 8-32

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

10шт.

30

9625178

PLUG,9/16" - 18 ORB

3шт.

31

NSS

NOT SOLD SEPARAT

BLOCK - clamp, is used

4шт.

32

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, , If used Hex Soc Hd, 5/16"-18 x 1"

6шт.

33

107419A1

PLUG

- orifice, 0.125 inch diameter

1шт.

34

87252C1

SOLENOID VALVE

VALVE - two way solenoid, basket door raise tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

35

87252C1

SOLENOID VALVE

VALVE - two way solenoid, basket door lower tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

36

87252C1

SOLENOID VALVE

VALVE - two way solenoid, compactor raise tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

37

87252C1

SOLENOID VALVE

VALVE - two way solenoid, compactor lower tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

149942C1

SEAL KIT

KIT - solenoid valve seal replacement, includes (2) O-rings and (1) backup washer

1шт.

38

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, basket door

1шт.

39

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, compactor

1шт.

149942C1

SEAL KIT

KIT - check valve seal replacement, includes (2) O-rings and (1) backup washer

1шт.

41

1340838C1

PILOT VALVE

VALVE - pilot operated three-way, basket lift

1шт.

42

1340838C1

PILOT VALVE

VALVE - pilot operated three-way, unloader motor

1шт.

1341812C1

O-RING KIT

KIT - directional control valve seal replacement, includes (4) O-rings and (6) backup washers

1шт.

43

107420A1

VALVE PRESSURE RELIE

VALVE - needle

1шт.

44

1288953C1

VALVE

- two-way solenoid, basket lower

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

1288954C1

SEAL KIT

KIT - solenoid valve seal replacement, includes (2) O-rings and (1) backup washer

1шт.

45

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only, fan clutch

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

187850C1

SEAL KIT

KIT - solenoid valve seal replacement, includes (4) O-rings and (3) backup washers

1шт.

46

107421A1

PLATE

- orifice, 0.063 inch diameter

2шт.

48

71100209

PLUG,Hex Soc, 3/4"-16 ORB

3шт.

50

S243647

COUPLING

- quick disconnect

2шт.

51

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket, 3/8 NC x 1-1/4 inch, if used

4шт.

52

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

53

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

54

NSS

NOT SOLD SEPARAT

STUD - clamping, if used

4шт.

55

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16"), If used 3/8"

4шт.

56

129-139

NUT,3/8"-16, G8

NUT, , If used 3/8"-16, G8

4шт.

1341807C1

SOLENOID

KIT - solenoid coil, 10 volt

1шт.

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.
