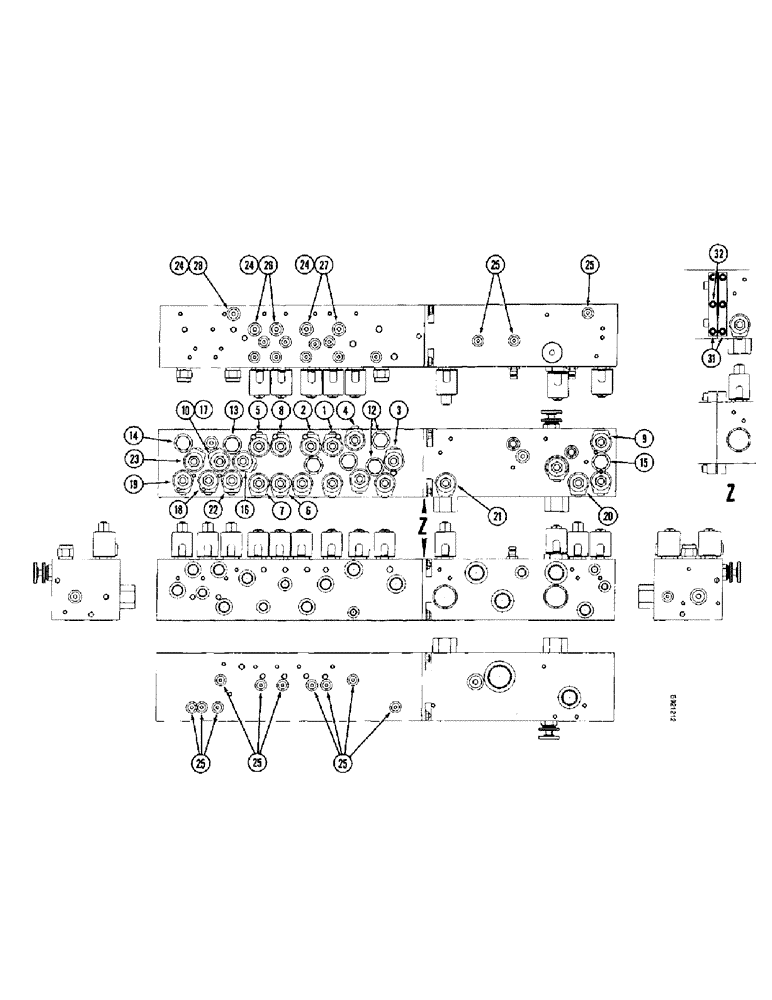

Запчасти Case IH 2055 (8-32) - HYDRAULIC MANIFOLD VALVE (07) - HYDRAULICS

1986598C3

VALVE

ASSEMBLY - manifold (Replaces valve assembly 1986598C2)

1шт.

1

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, basket door lower

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

2

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, basket door raise

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

3

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, compactor lower

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

4

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, compactor raise

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

5

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum field pressure

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

6

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum field tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

7

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum service tank

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

8

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum service pressure

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

9

1288972C1

SOLENOID VALVE

VALVE - two-way solenoid, drum lube

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

149942C1

SEAL KIT

KIT - solenoid valve seal replacement, includes (2) O-rings and (1) washer

1шт.

10

107467A2

ORIFICE

DISC - orifice, 0.125 inch diameter, replaces 107467A1 (0.090 inch diameter) disc

1шт.

12

1542812C1

VALVE

- compactor flow control, 5.0 GPM

2шт.

1272308C1

SEAL KIT

KIT - flow control valve seal, includes (2) O-rings and (1) backup washer

1шт.

13

1346479C1

VALVE

- flow control, 6.3 GPM, drum lift, right-hand

1шт.

14

1346479C1

VALVE

- flow control, 6.3 GPM, drum lift, left-hand

1шт.

15

1346479C1

VALVE

- flow control, 6.3 GPM, drum lube

1шт.

1272308C1

SEAL KIT

KIT - flow control valve seal, includes (2) O-rings and (1) backup washer

1шт.

16

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, left-hand drum lift, manual

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

17

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, rockshaft tiltback

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

18

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, rockshaft rollout

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

19

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, right-hand drum lift, manual

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

20

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, basket raise

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

21

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, unloader motor

1шт.

Use 1340843C1 12 volt kit for coil service.

1шт.

22

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, left-hand auto drum lift

1шт.

Use 1341807C1 10 volt kit for coil service.

1шт.

23

1288958C2

SOLENOID VALVE

VALVE - three-way solenoid, right-hand auto drum lift

1шт.

Use 1341807C1 10 volt kit for coil service.

1шт.

1260872C91

SEAL KIT

KIT - solenoid valve seal replacement, includes (3) O-rings and (2) backup washers

1шт.

24

9625178

PLUG,9/16" - 18 ORB

5шт.

25

1341811C1

SPRING-CHECK

KIT - sense check

13шт.

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

26

107416A1

PLUG

- orifice, 0.080 inch diameter

2шт.

27

107417A1

PLUG

- orifice, 0.106 inch diameter

2шт.

28

107418A1

PLUG

- orifice, 0.024 inch diameter

1шт.

1341807C1

SOLENOID

KIT - solenoid coil, 10 volt

1шт.

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.
