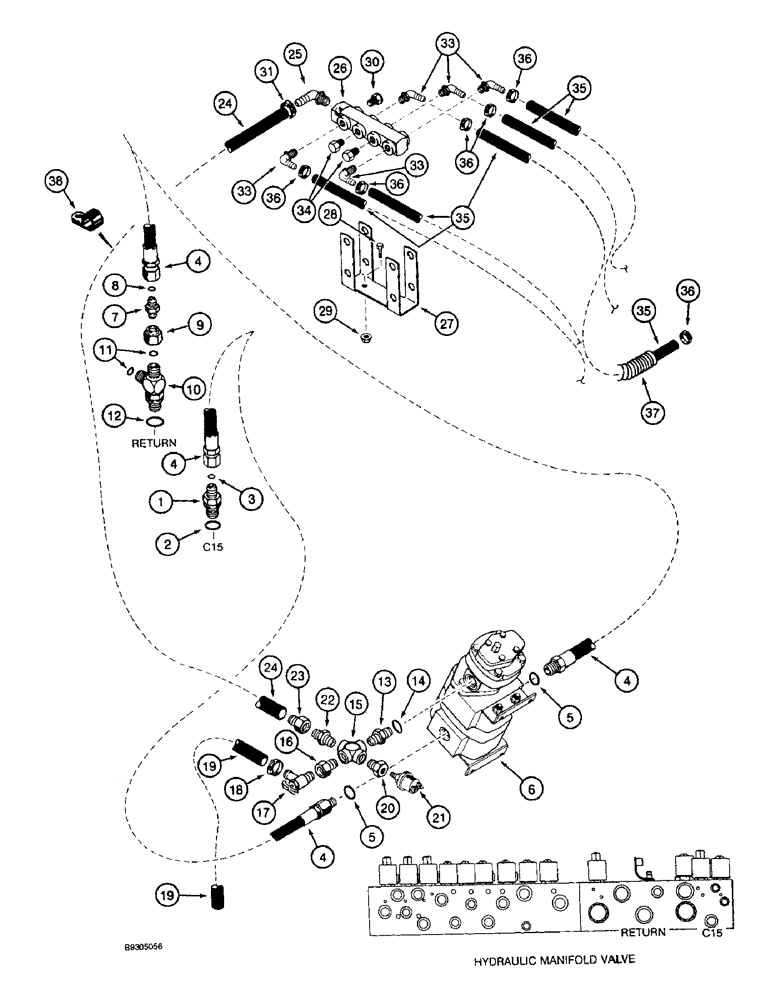

Запчасти Case IH 2055 (8-28) - DRUM BAR LUBRICATION PLUMBING SYSTEM MODELS THAT HAVE RESERVOIR WITH TWO LOWER PORTS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB
1шт.
2
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Boss end
1шт.
3
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face end -012, 90 Duro, .364" ID x .070" Thk
1шт.
4
1988889C1
HOSE,12.7mm ID x 900mm L
- grease pump, 35-7/16 inch (900 mm) long
2шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
2шт.
6
1988896C2
PUMP, HYDRAULIC
PUMP ASSEMBLY - system supply, 225 PSI, component parts not serviced separately
1шт.
250706A2R
REMAN-HYD PUMP
2055 (4/93-), Reman for New PN 1988896C2
1шт.
250706A2C
CORE-HYDRAULIC PUMP
Return Number
1шт.
6a
197012A1
SEAL KIT
KIT - seal repair, lubrication pump motor, not shown
1шт.
7
201-143
REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS
ADAPTER - reducing, 13/16-16 face seal x 1-3/16-12 inch female face
1шт.
9
203-904
TUBE NUT,1 3/16"-12 ORFS
NUT - hex, tube, 1-3/16-12 inch face seal, tube
1шт.
10
201-428
TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB
- 1-3/16-12 face seal branch x face seal x 1-1/16-12 inch adj O-ring boss
1шт.
11
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face end -018, 90 Duro, .739" ID x .070" Thk
2шт.
12
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Boss end
1шт.
13
218-5441
HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT
ADAPTER - straight, 7/8-14 O-ring boss x 1/2 inch PT
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
15
217-1203
4 WAY CONNECTION,Female, 1/2"-14
CROSS - 1/2 inch female PT
1шт.
16
217-44
REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT
to 3/8" pipe 1/2"-14 NPTF x 3/8"-18 Fem NPTF
1шт.
19
1329977C2
HOSE,15.75 mm ID x 840.00 mm
Bleed; Order 1977295C1, and Cut to Required Length; See Below 15.75 mm ID x 840.00 mm
1шт.
20
221-87
REDUCER,1/2" NPT x 1/8" NPT
- pipe, 1/2 male x 1/8 inch female
1шт.
21
1987419C1
PROBE
SENDER - bar lube pressure
1шт.
22
443992
REDUCER,1/2"-14 NPTF x 3/8"-18 NPTF
- special, 1/2 to 3/8 inch, to 3/8 inch
1шт.
23
1990010C1
FITTING
ADAPTER - compression, special
1шт.
24
1990013C1
HOSE
- pump outlet, 80 inch (2032 mm) long, cut from 1990211C1 bulk hose, see below
1шт.
24a
1990255C1
OLIVE
INSERT - nylon, 1/2 inch, not shown
2шт.
25
1990008C1
FITTING
ELBOW - manifold, 90 degree, special, 1/2 inch female PT x 11/16-20 straight thread
1шт.
26
1546015C1
MANIFOLD
- grease
1шт.
27
1546016C1
SUPPORT
BRACKET - manifold
1шт.
28
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
2шт.
29
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
30
37290D
LUBE NIPPLE,1/4"-18 NPT x 1.25" lg, But Hd
FITTING - special
1шт.
31
221-84
REDUCER,Hex, 1/4" x 1/8" NPT
- pipe, 1/4 male x 1/8 inch female
4-5шт.
32
1988875C1
ELBOW
- 90 degree, special, 1/8 PT x 1/4 inch stem end
4-5шт.
33
217-294
FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF
ELBOW - 90 degree, 1/4 inch barb end x 1/4 inch PT
4-5шт.
34
217-86
PLUG,Hex Hd, 1/4"-18, Brass
- hex, 1/4 inch PT
2-3шт.
35
1546369C1
HOSE
- drum lube, 200 inch (5080 mm) long, cut from 1546370C1 bulk hose, see below
4-5шт.
36
214-1404
HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm
CLAMP - adj, 1/4 - 5/8 inch dia (Qty. 8-10)
1шт.
REF#36 PART 217-117 IS 1/4" x 1/4" ST BARB.
1шт.
37
1546371C1
PROTECTOR
GUARD - hose, conduit
4-5шт.
38
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type, Hose retaining 3/4", Insul, 3/8" Bolt
2шт.
1977295CX
LARGE HOSE
HOSE - bulk, 7/8 (22) ID x 600 inch (15240 mm) long
1шт.
1990211C1
HOSE,100' Bulk
100' Bulk
1шт.
1546370C1
HOSE
- bulk, 1/2 (12) ID x 600 inch (15240 mm) long
1шт.
Выбрано товаров: 46
