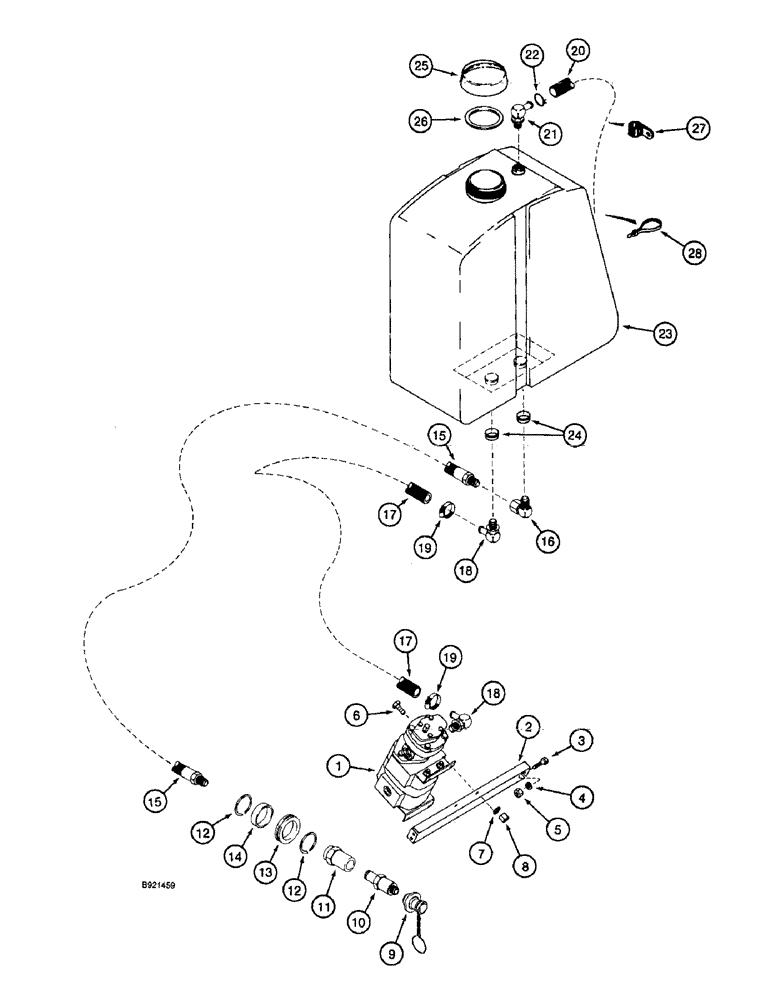

Запчасти Case IH 2055 (8-26) - DRUM BAR LUBRICATION RESERVOIR SYSTEM RESERVOIR WITH TWO LOWER PORTS (07) - HYDRAULICS

1

1988896C2

PUMP, HYDRAULIC

PUMP ASSEMBLY - system supply, component parts not service separately, 225 PSI (Replaces pump 1988896C1)

1шт.

250706A2R

REMAN-HYD PUMP

2055 (4/93-), Reman for New PN 1988896C2

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1a

197012A1

SEAL KIT

KIT - seal repair, lubrication pump motor, not shown

1шт.

2

1988883C1

SUPPORT

CHANNEL - pump mounting support

2шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

1954133C1

PLUG

PLUG - coupling, dust

1шт.

10

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

11

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

1шт.

12

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

2шт.

13

A139805

RETAINER

- coupling

1шт.

14

1994808C2

SPACER

- female coupling

1шт.

15

1990210C1

HYDRAULIC HOSE,12.70 mm ID x 3810.00 mm, SAE 100R6 Class 1

Reservoir Fill 12.70 mm ID x 3810.00 mm, SAE 100R6 Class 1

1шт.

16

217-1018

ELBOW,3/4" - 14 Male x 1/2" - 14 Female

- street, 90 degree, 3/4 PT x 1/2 inch female PT

1шт.

17

1990220C1

HYDRAULIC HOSE,25.40 mm ID x 2388.00 mm

HOSE - pump inlet, 116 inch (2946 mm) long, cut from 1990222C1 bulk hose, see below

1шт.

18

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT

2шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. (Replaces clamp 311164C91) #20, 0.81/1.75 Type F Worm

2шт.

20

201763C2

HOSE,12.70 mm ID x 1371.60 mm

Cut from 665181R1 bulk hose, Tank Overflow, See below 12.70 mm ID x 1371.60 mm

1шт.

21

1329210C1

ELBOW

- 90 degree, 1/2 stem, end x 3/4-16 inch

1шт.

22

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch, if used

1шт.

22

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2 - 29/32 inch dia, if used

1шт.

23

1984322C1

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - bar lubrication, two lower ports

1шт.

24

1345186C1

FITTING

- nylon, 4 piece, 3/4 inch PT

3шт.

25

1345185C1

CAP

ASSEMBLY - reservoir

1шт.

26

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

27

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type (Replaces clamp 27291R1) 1", Insul, 3/8" Bolt

1шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

1990222C1

HYDRAULIC HOSE,25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

25.40 mm ID x 15240.00 mm Bulk, SAE 100R4 Class 4

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.
