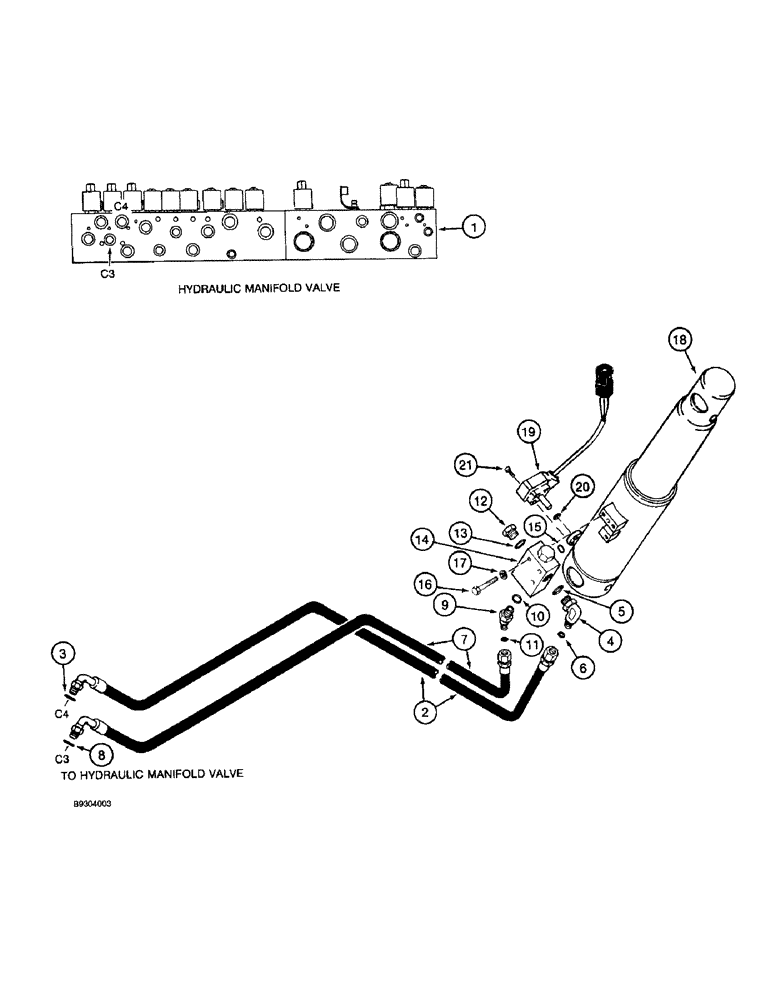

Запчасти Case IH 2055 (8-24) - DRUM TILT SYSTEM (07) - HYDRAULICS

1

1986598C3

VALVE

ASSEMBLY - manifold, parts list pages 8-32 and 8-34

1шт.

2

1988949C1

HOSE

- hydraulic, drum tilt, pressure, 40-3/8 inch (1025 mm) long

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, 13/16-16 face seal x 3/4-16" adj O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

7

1988950C1

HOSE

- hydraulic, drum tilt, pilot, 38-3/8 inch (975 mm) long

1шт.

9

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

1346043C1

VALVE, CHECK

VALVE ASSEMBLY - pilot operated check, parts list page 8-30

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

3шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

1343761C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum tilt, 4 (102) ID x 7-1/4 inch (185 mm) stroke, parts list page 8-72

1шт.

19

1983691C1

SWITCH

- kickback control

1шт.

Replace 1983691C1 with the following: 111669A1 kit, which includes 112291A1 switch port cover (3), 238-6018 O-ring (3), 1546498C1 switch (3), 1546432C1 bracket - lift switch (2), 1546433C1 bracket - tilt switch (1) , 413-516 bolt (6), 492-11031 lockwasher (6), 495-11034 flat washer (6), 425-105 nut (6), and 495-81202 flat washer (6). See page 4-18 or 4-20 for parts.

1шт.

20

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

21

461-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

4шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
