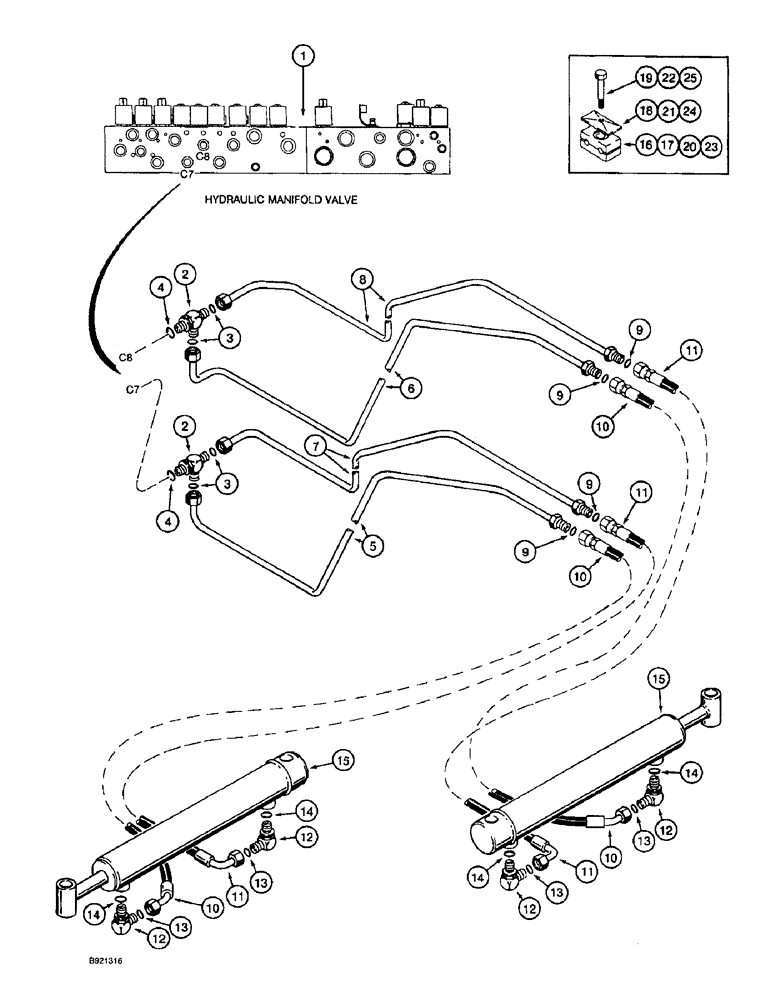

Запчасти Case IH 2055 (8-22) - DRUM SERVICE - CLOSE AND SPREAD SYSTEM (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1986598C3
VALVE
ASSEMBLY - manifold, parts list pages 8-32 and 8-34
1шт.
2
201-406
TEE,11/16"-16 x 9/16"-18 Run, ORFS
- 11/16-16 face seal branch x face seal x 9/16-18 inch Adj O-ring boss
2шт.
3
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face end -012, 90 Duro, .364" ID x .070" Thk
2шт.
5
1988932C1
TUBE
- hydraulic, drum close, right-hand
1шт.
6
1988933C1
TUBE
- hydraulic, drum spread, right-hand
1шт.
7
1988934C1
TUBE
- hydraulic, drum close, left-hand
1шт.
8
1988935C1
TUBE
- hydraulic, drum spread, left-hand
1шт.
9
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
4шт.
10
1984281C2
HOSE
- hydraulic, drum service, close, 62 inch (1575 mm) long, replaces 1984281C1 hose (1675 mm long)
2шт.
11
1984282C2
HOSE
- hydraulic, drum service, spread, 57 inch (1450 mm) long, replaces 1984282C1 hose (1550 mm long)
2шт.
12
201-345
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
- 90 degree, 11/16-16 face seal x 3/4-16 inch adj O-ring boss
4шт.
13
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face end -012, 90 Duro, .364" ID x .070" Thk
1шт.
14
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Boss end
1шт.
15
1542544C1
CYLINDER ASSY.
CYLINDER ASSEMBLY - drum spread, 2-1/4 (57) ID x 14-3/4 inch (375 mm) stroke, parts list page 8-74
2шт.
16
1546025C1
CLAMP
- double, 1/2 inch ID, hose retaining
2шт.
17
1546024C1
CLAMP
- double, 3/8 inch ID, hose retaining
2шт.
18
1347127C1
PLATE
- clamp
2шт.
19
413-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
- hex, 5/16 NC x 2-3/4 inch
2шт.
20
1546024C1
CLAMP
- double, 3/8 inch ID, hose retaining
2шт.
21
1347127C1
PLATE
- clamp
2шт.
22
413-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
- hex, 5/16 NC x 1-3/8 inch
2шт.
23
1546026C1
CLAMP
- double, 5/8 inch ID, hose retaining
2шт.
24
1347127C1
PLATE
- clamp
2шт.
25
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
4
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
Выбрано товаров: 25
