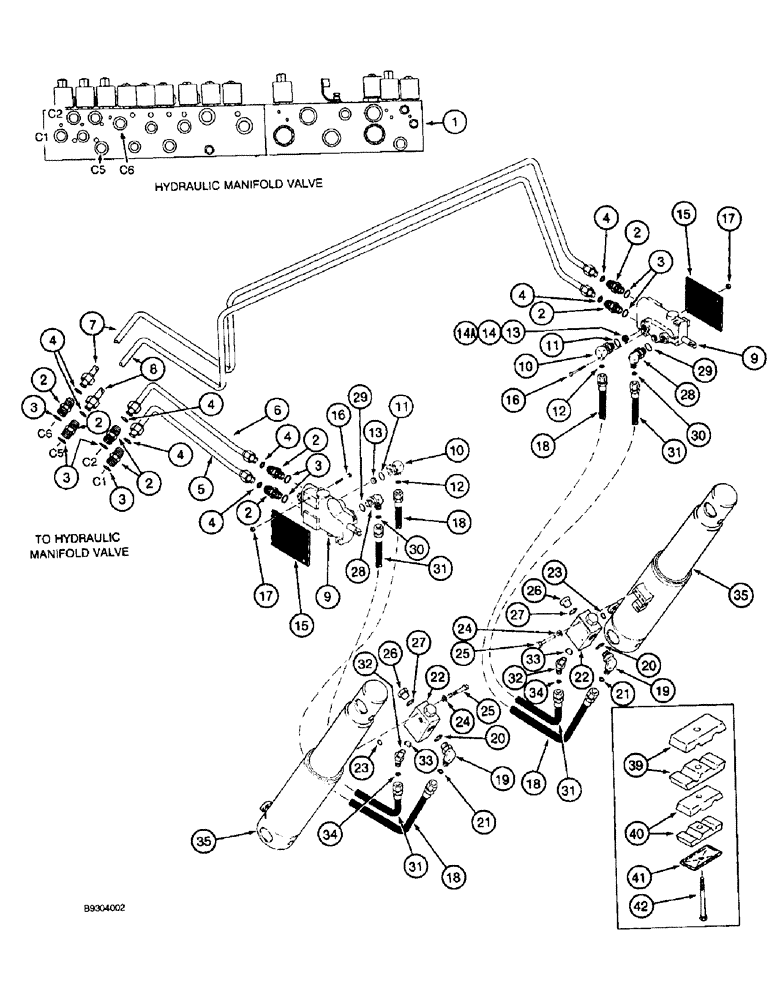

Запчасти Case IH 2055 (8-20) - DRUM CONTROL VALVES AND LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

1986598C3

VALVE

ASSEMBLY - manifold, parts list pages 8-32 and 8-34

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

8шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

1988929C1

TUBE

- hydraulic, right-hand drum lift, manual supply

1шт.

6

1988928C1

TUBE

- hydraulic, left-hand drum lift, automatic supply

1шт.

7

1988931C1

TUBE,0.5" OD

- hydraulic, left-hand drum lift, manual supply

1шт.

8

1988930C1

TUBE

- hydraulic, left-hand drum lift, automatic supply

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - drum height control, see pages 8-38 and 8-40 for the correct assembly and parts list

2шт.

10

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss

2шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

13

1288998C3

PLATE

- orifice, 0.081 inch diameter

1-2шт.

14

1288997C2

LARGE PLATE

PLATE - orifice, 0.067 inch diameter

1-2шт.

14a

1546331C1

PORT

PLATE - orifice, 0.094 inch diameter

1-2шт.

15

1988976C1

PLATE

- rubber, valve isolation

2шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

18

1984279C1

HOSE

- hydraulic, drum lift, pressure, 33-1/2 inch (850 mm) long

2шт.

19

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, 13/16-16 face seal x 3/4-16" adj O-ring boss

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

22

1346043C1

VALVE, CHECK

VALVE ASSEMBLY - pilot operated check, parts list page 8-30

2шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

25

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

6шт.

26

214389

PLUG,3/4" - 16 ORB

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss

2шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

31

1984280C1

HOSE

- hydraulic, drum lift, pilot, 30-1/2 inch (775 mm) long

2шт.

32

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss

2шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

REF

INSTRUCTION

CYLINDER ASSEMBLY - drum lift, see page 8-42 for correct assembly and parts list

2шт.

39

1546025C1

CLAMP

- double, 1/2 inch ID, hose retaining

1шт.

40

1546024C1

CLAMP

- double, 3/8 inch ID, hose retaining

1шт.

41

1347127C1

PLATE

- clamp

1шт.

42

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
