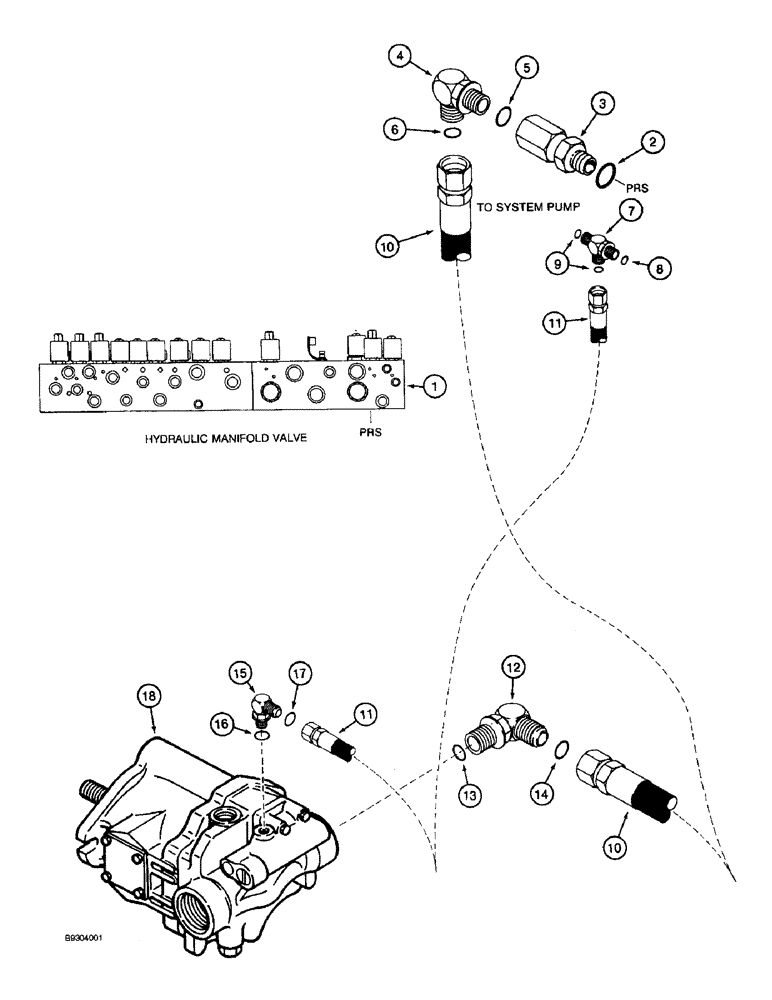

Запчасти Case IH 2055 (8-18) - MANIFOLD VALVE SUPPLY AND PRESSURE COMPENSATOR SYSTEM (07) - HYDRAULICS

1

1986598C3

VALVE

ASSEMBLY - manifold, parts list pages 8-32 and 8-34

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

93306C2

FILTER

- inline

1шт.

4

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/6-12 inch adj O-ring boss

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

7

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

- 9/16-18 face seal branch x face seal x 7/16-20 inch adj O-ring boss

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

2шт.

10

1988892C1

HOSE

- hydraulic, valve supply, 55-1/8 inch (1400 mm) long

1шт.

11

1990123C1

HOSE

- hydraulic, valve sense, 31-1/2 inch (800 mm) long

1шт.

12

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-5/16-12 inch adj O-ring boss

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thke, Boss end

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

15

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 degree, 9/16-18 face seal x 7/16-20 inch adj O-ring boss

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

1шт.

18

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, new, parts list page 8-10

1шт.
