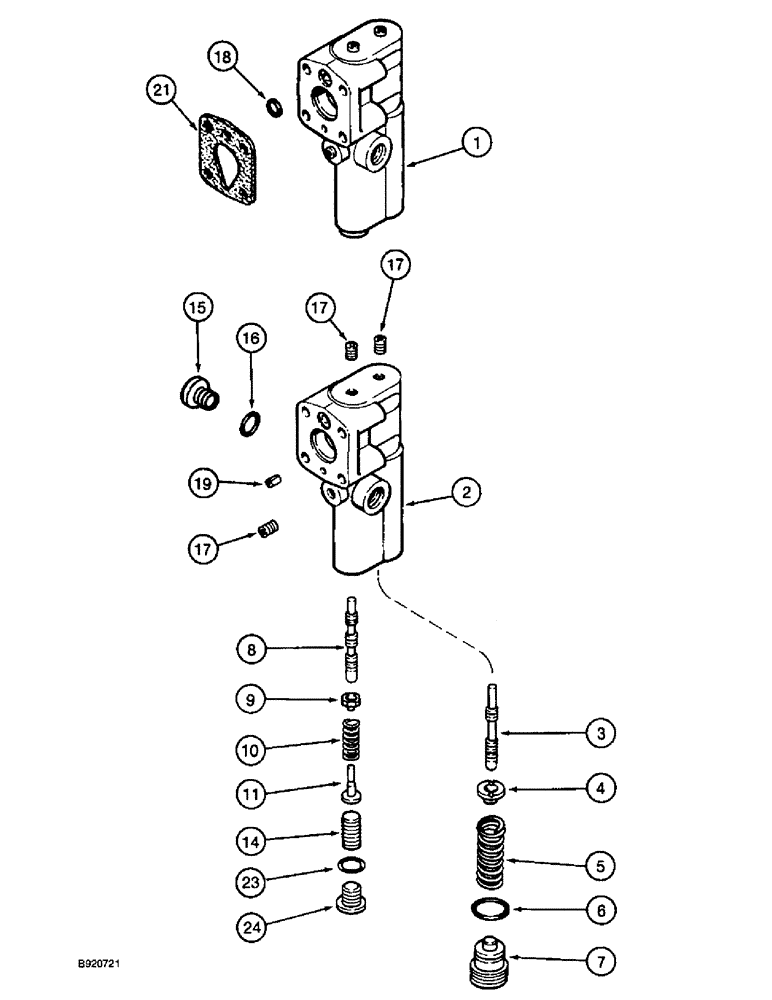

Запчасти Case IH 2055 (8-14) - HYDRAULIC PUMP COMPENSATOR (07) - HYDRAULICS

1

1288981C1

EQUALIZER

COMPENSATOR ASSEMBLY - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - pressure limiter

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - pressure limiter spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - pressure limiter spool

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - pressure plug

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - spool adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - load sensing

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - load sensing spool

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - load sensing spool

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - load sensing

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - set, load sensing

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - hex socket, 7/16 inch NF

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - compensator

3шт.

18

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - valve

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.

1263244C2

PACKAGE

KIT - seal replacement, Includes: Ref. 6, 16, 18, 21 and 23, plus parts in Figure 8-10.

1шт.
