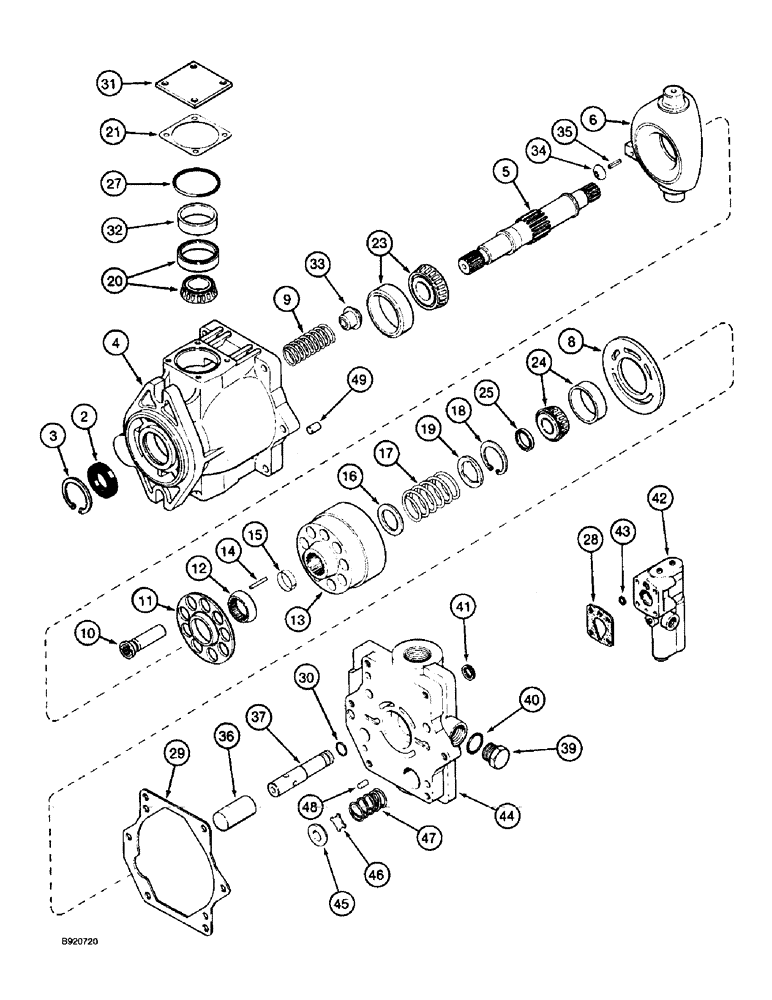

Запчасти Case IH 2055 (8-10) - HYDRAULIC PUMP ASSEMBLY (07) - HYDRAULICS

1282249C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, new

1шт.

1288976C91

REMAN-HYD PUMP

PUMP ASSEMBLY - hydraulic, remanufactured, North America only

1шт.

1949241C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

2

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

- oil, shaft (Replaces seal 145587C1)

1шт.

3

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces 309107R1) 1.75", Int, #175

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

5

1288979C1

SHAFT

- drive

1шт.

6

A47284

YOKE

- pump shaft (Replaces yoke 1263235C1)

1шт.

8

1288980C1

PLATE

- wafer

1шт.

9

A47281

SPRING

- yoke (Replaces spring 1263237C1)

1шт.

1263239C1

REPAIR KIT

KIT - rotating group

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

11

NSS

NOT SOLD SEPARAT

PLATE - piston shoe

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - cylinder block

3шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - spring front

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

18

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

1263241C1

WHEEL BEARING KIT

KIT - yoke bearing

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - pump

2шт.

21

NSS

NOT SOLD SEPARAT

KIT - shim

1шт.

1263242C1

KIT

- shaft bearing

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - pump

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - pump

1шт.

145582C1

KIT

- spacer

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.139 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.142 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.145 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.148 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.151 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.154 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.157 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.160 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.163 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.166 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.169 inch

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - cover

2шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: compensator-pump

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - body

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

31

NSS

NOT SOLD SEPARAT

COVER - housing

2шт.

32

NSS

NOT SOLD SEPARAT

SPACER - bearing

2шт.

33

NSS

NOT SOLD SEPARAT

SEAT - yoke spring

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - spherical

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1/2 inch

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - pump

1шт.

37

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - valve port

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - valve port plug

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

41

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

42

1288981C1

EQUALIZER

COMPENSATOR ASSEMBLY - pump, parts list page 8-15

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

Part of Seal Replacement Kit P/N 1263244C2

1шт.

44

NSS

NOT SOLD SEPARAT

VALVE BLOCK - pump

1шт.

45

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

46

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

47

NSS

NOT SOLD SEPARAT

SPRING - valve block

1шт.

48

NSS

NOT SOLD SEPARAT

PIN - headless, 1/4 x 1/2 inch

1шт.

49

NSS

NOT SOLD SEPARAT

PIN - housing to valve body

2шт.

1263244C2

PACKAGE

KIT - seal replacement, Includes: Ref. 27-30, 40 and 43. plus parts on Figure 08-14

1шт.
