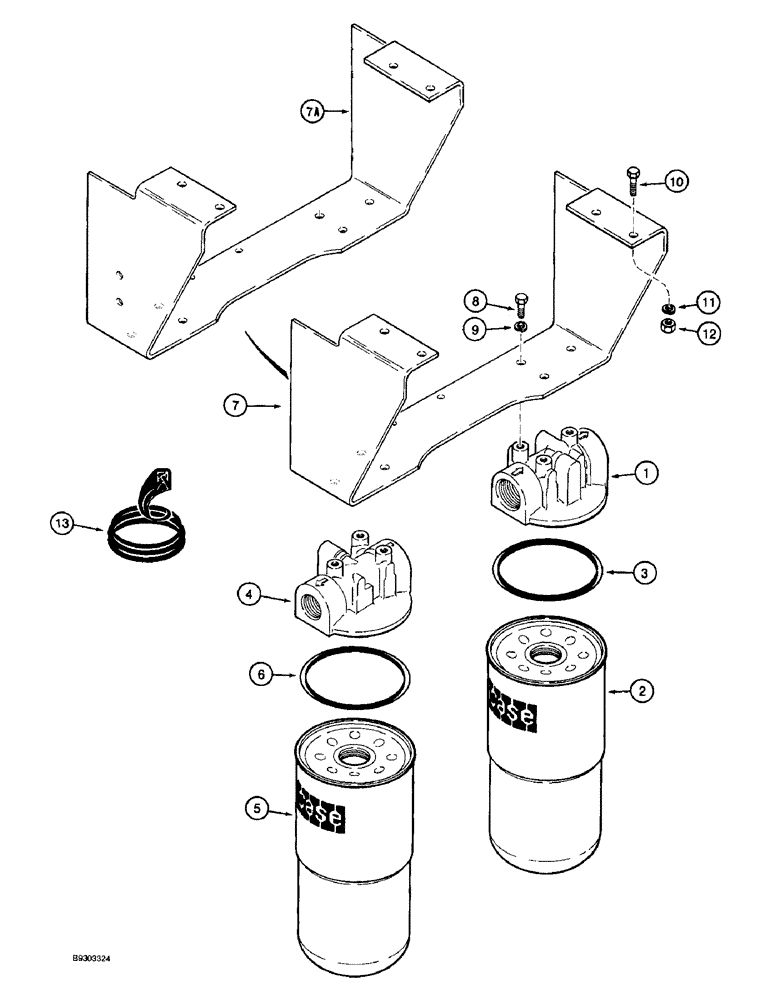

Запчасти Case IH 2055 (8-06) - HYDRAULIC FILTER ASSEMBLIES (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - auxiliary return

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, round, if used

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

3

123010C2

GASKET

- filter element, square, if used

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

87785C91

FILTER ASSY

FILTER ASSEMBLY - hydro suction

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

5

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

6

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, round, if used

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

6

123010C2

GASKET

- filter element, square, if used

1шт.

Part of Filter Element Kit P/N 1329214C1

1шт.

7

1349918C1

BRACKET

- filter, if used

1шт.

7a

1349918C2

SUPPORT

BRACKET - filter, with two end holes, if used

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

1327979C1

MOLDING

TRIM - edge protector, 6 inch (152 mm) long, cut from 1330108CX bulk trim, see below

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, Includes: Ref. 2, 3, 5 and all 6's

1шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.
