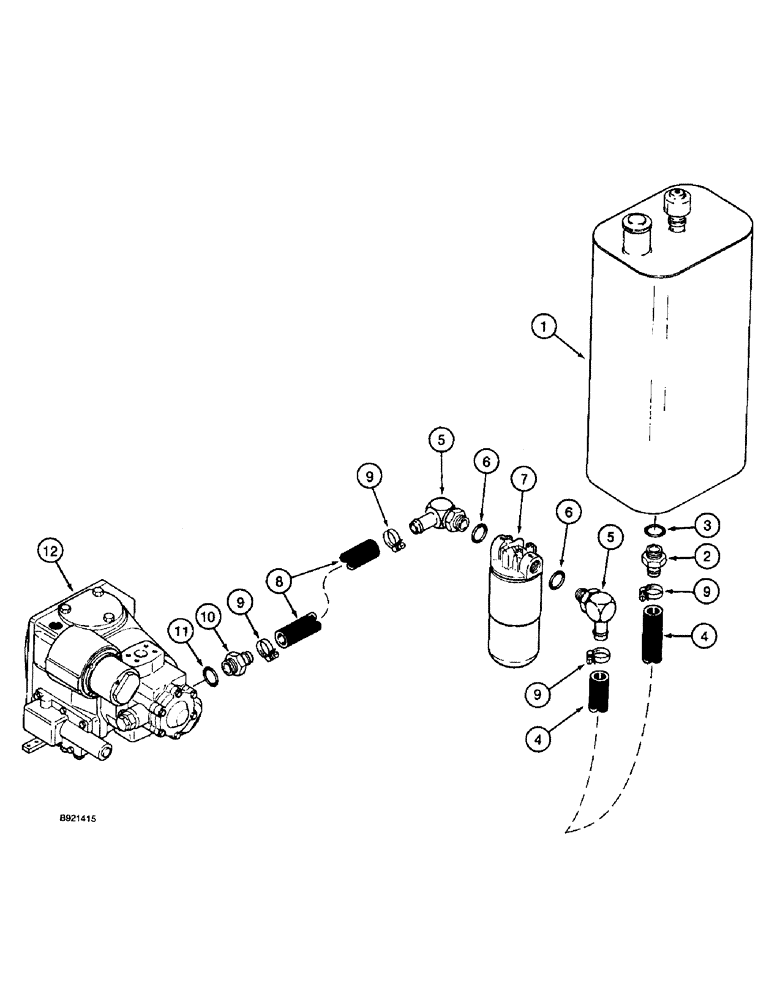

Запчасти Case IH 2055 (8-04) - HYDRAULIC RESERVOIR TO HYDROSTATIC PUMP SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon, see page 8-2 for correct assembly and parts list

1шт.

2

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-1/4 stem end x 1-5/8-12 inch O-ring boss

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

1988944C2

HOSE

- hydraulic, filter suction, 25-19/32 inch (650 mm) long

1шт.

5

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, 1-1/4 stem end x 1-5/16-12 inch adj O-ring

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

87785C91

FILTER ASSY

FILTER ASSEMBLY - hydro suction, parts list page 8-6

1шт.

8

1988945C1

HOSE

- hydraulic, hydrostatic pump suction, 20-21/32 inch (525 mm) long

1шт.

9

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adj, 1-1/16 - 2 inch dia

4шт.

10

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, see pages 6-18 - 6-32 for correct pump assembly and parts list

1шт.
