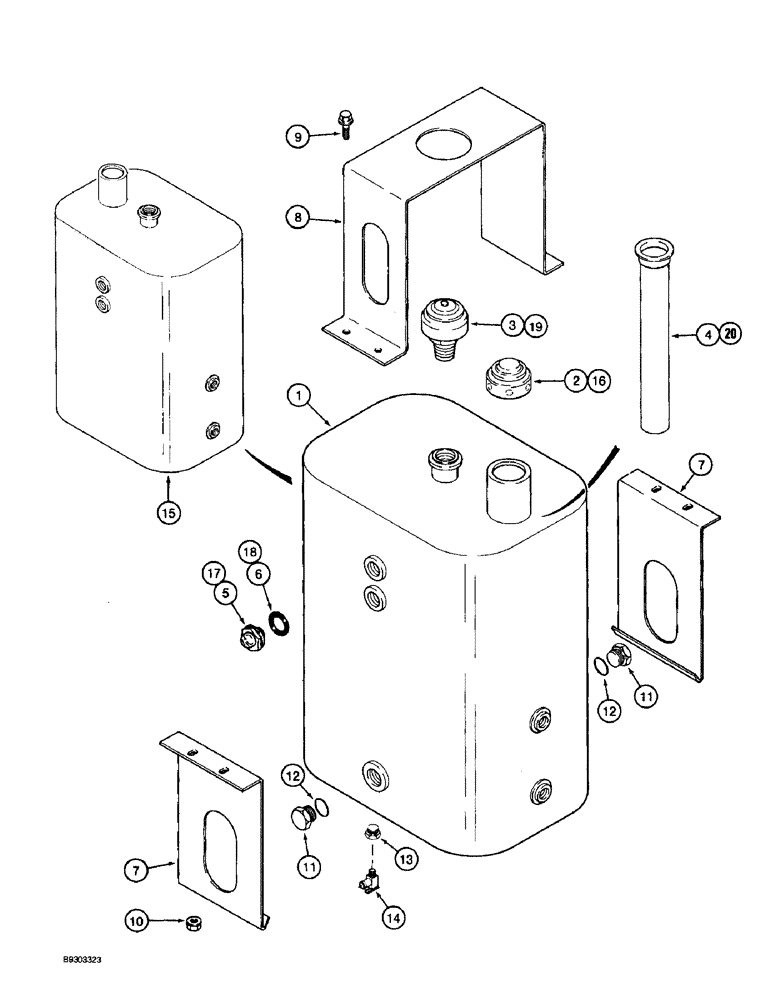

Запчасти Case IH 2055 (8-02) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon, part number stamped on top of reservoir, if used (Replaces reservoir assembly 134660C1)

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

2

1346309C1

PLUG

CAP - reservoir fill, non-vented

1шт.

3

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

4

104407A1

SCREEN

- filter, reservoir

1шт.

5

244600R92

SIGHTGLASS

GAUGE - sight, oil level

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

- hydraulic reservoir

2шт.

8

1347146C1

CLAMP

- reservoir

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

11

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

14

301803R1

SHUT-OFF VALVE

VALVE - reservoir drain

1шт.

117880A1

RESERVOIR ASSY.

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon capacity, part number stamped on top of reservoir, if used

1шт.

15

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

16

1346309C1

PLUG

CAP - reservoir fill, non-vented

1шт.

17

244600R92

SIGHTGLASS

GAUGE - sight, oil level

2шт.

18

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

19

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

20

104407A1

SCREEN

- filter, reservoir

1шт.
