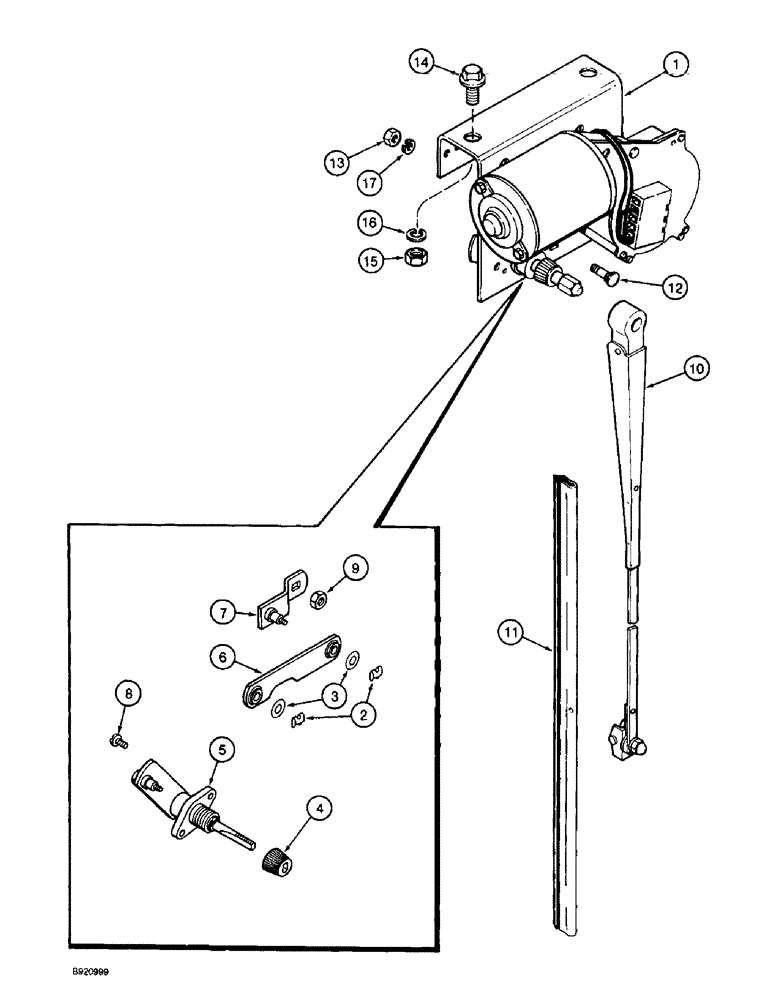

Запчасти Case IH 2055 (4-48) - WINDSHIELD WIPER (06) - ELECTRICAL SYSTEMS

1

1276130C92

WIPER MOTOR

MOTOR ASSEMBLY - wiper, includes bracket

1шт.

1267542C91

PACKAGE

KIT - wiper linkage, no longer available, order individual components

1шт.

2

739487C1

CLIP

- spring

2шт.

3

148074R1

WASHER

- flat, hardened, 6.0 x 14.4 x 0.4 mm

2шт.

4

1267556C1

BUTTON

NUT - knurled drive

1шт.

5

N7274

KIT

SHAFT - pivot

1шт.

6

260514C91

LINK

- connecting

1шт.

7

A36091

ARM

- drive

1шт.

8

118129C1

SCREW

- retaining, includes washer

2шт.

9

27122R1

LOCK NUT,1/4"-28, GC

NUT - retaining

1шт.

10

1321282C1

ARM

- wiper, 18 inch (457 mm)

1шт.

11

1327520C1

WIPER BLADE

BLADE - wiper, 22 inch (559 mm)

1шт.

12

412-416

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1", Gr 2

BOLT - carriage, 1/4 NC x 1 inch, grade 2

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

14

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
