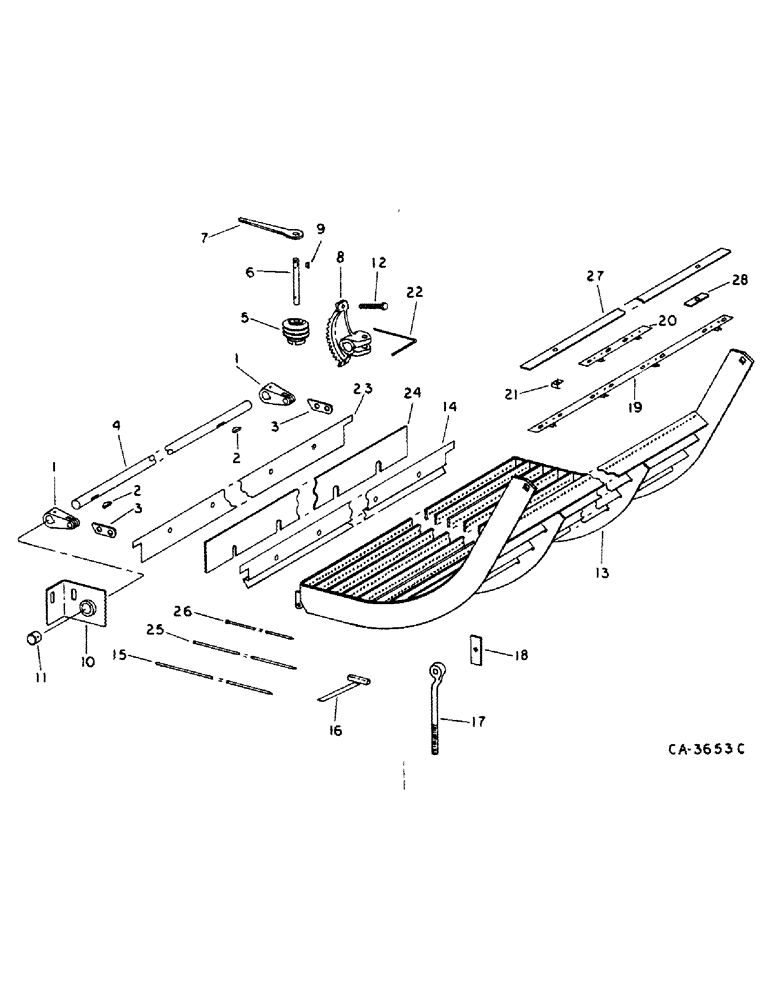

Запчасти Case IH 914 (21-12) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND CONTROL (14) - THRESHING

1

157569C3

ARM

concave control frt

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 znd hex, jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 sq-hd set

1шт.

2

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard

3шт.

3

157871C2

BAR

concave control frt arm support

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 182 x 1-27/64 C-Z rod end

1шт.

4

179851C1

SHAFT, adj arm pivot

1шт.

5

179852C1

GEAR, worm

1шт.

6

179853C1

SHAFT, adj control

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

7

170282C1

HANDLE

control

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

8

178255C1

GEAR, concave adj driven

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 znd hex-hd type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex, type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

9

106751

KEY

3/16 x 3/4 Woodruff

1шт.

10

179854C1

BRACKET ASSY, leveling, includes ref. no. 11

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga znd

1шт.

11

454172R1

BUSHING

1шт.

12

564638R1

BOLT, gear stop

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

13

177385C91

CONCAVE

ASSY, includes ref. no. 15, serial no. 8000 and below

1шт.

13

189738C92

CONCAVE

ASSY, low small wire, includes ref. nos. 25 and 26, serial no. 8001 and above, parts accessory, to convert from high wire to low wire

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow

1шт.

21434R1

NUT,5/8"-11, G8

5/8 hex

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga znd

1шт.

14

177389C1

RETAINER, concave rod front

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

177381C1

ROD

concave plain, serial no. 8000 and below, use W/177385C91 concave

53шт.

16

196225C1

GAGE ASSY, concave to cylinder check

1шт.

17

157641C1

BOLT, concave rear adjustment

2шт.

280954

NUT,3/4"-10, G5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

18

565572R1

SEALING STRIP

concave rear adj bolt slt

2шт.

19

174547C92

STRIP

ASSY, concave filler long, includes ref. no. 21, use W/177385C91 concave

3шт.

20

174550C92

STRIP

ASSY, concave filler shore, includes ref. no. 21, use W/177385C91 concave

6шт.

21

174549C1

CLIP

concave filler strip, use W/177385C91 concave

48шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 pln but/hd sol

1шт.

22

179856C1

ROD, adj indicator

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

23

196268C1

BAR

SEAL, stone retarder, for very stony condition

1шт.

24

196269C1

BAR, stone retarder, for very stony condition

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

25

189741C1

ROD

concave long, use W/189738C92 concave, serial no. 8001 and above

59шт.

26

189742C1

ROD

concave short, use W/189738C92 concave, serial no. 8001 and above

58шт.

27

654924R1

BAR

STRAP, concave filler, use W/189738C92 concave, serial no. 8001 and above

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

1шт.

28

585209R1

WASHER, concave filler strap, use W/189738C92 concave, serial no. 8001 and above

12шт.
