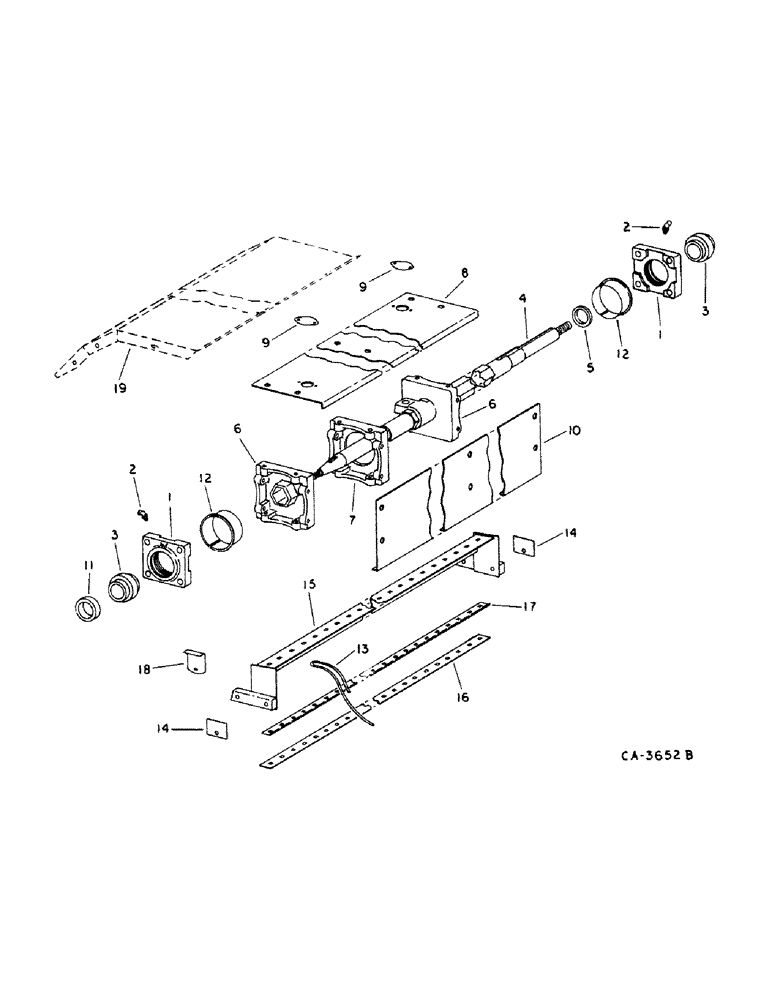

Запчасти Case IH 914 (21-08) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER AND SUPPORT STANDARD (14) - THRESHING

1

172317C11

HOUSING

W/BRG, cyl beater brg, includes ref. no. 3

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

2шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cyl beater ball

2шт.

4

160196C31

SHAFT

W/LOCK NUT, cyl beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-NF P/T lock type 5

1шт.

U14294

WASHER

1-5/16 x 2-7/8 x 16 ga

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

5

160236C1

BUSHING

SPACER, cyl beater shaft inner

1шт.

6

174769C1

HUB

cyl beater end

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

174770C1

HUB, cyl beater center

1шт.

8

174773C1

BLADE

cyl beater, first

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

9

634728R1

COVER

hub bolt access hole

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd

1шт.

10

174774C1

BLADE

cyl beater

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

11

612023R11

COLLAR ASSY.

COLLAR ASSY, cyl beater shaft left brg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd

1шт.

12

177299C1

RING

cyl beater brg

2шт.

13

179844C1

FINGER, cyl beater grate

27шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

568276R1

SEAL, cyl beater grate adj slot

2шт.

15

179842C2

SUPPORT

ASSY, cylinder beater grate

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

170534C1

STRAP, finger clamp

1шт.

17

582715R1

CLAMP, cyl beater grate finger

1шт.

171140R1

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18

574525R1

DOOR, cylinder beater finger grate inspection

1шт.

19

DEFLECTOR ASSY, cylinder beater, refer to group 20 under separator

1шт.
