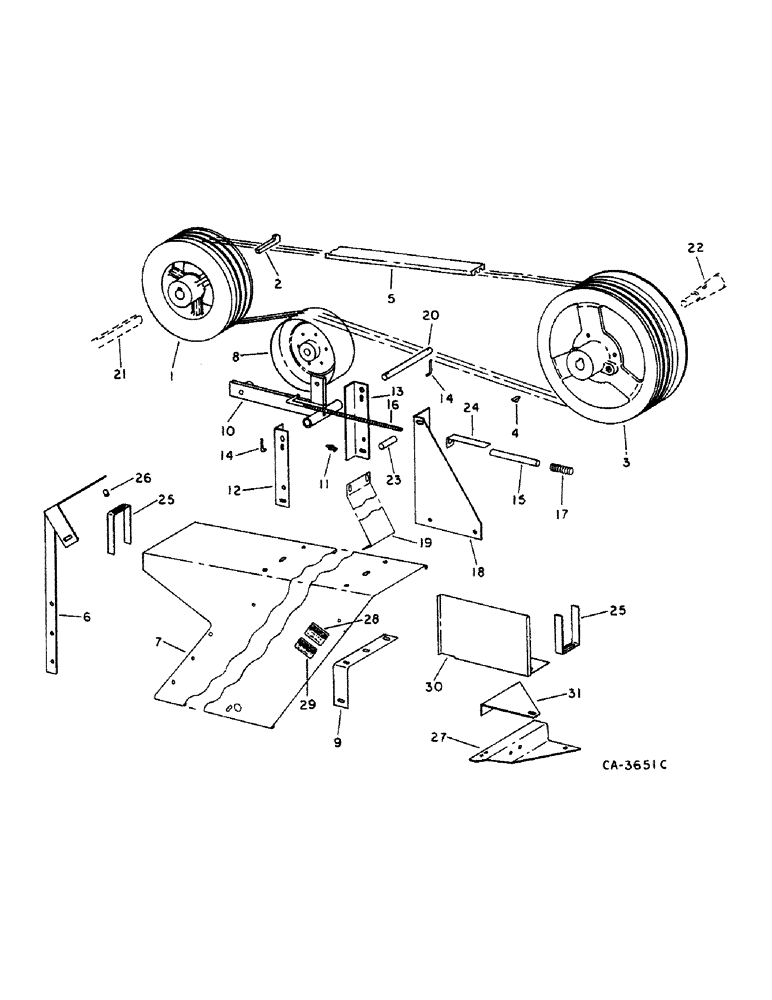

Запчасти Case IH 914 (21-06) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER DRIVE (14) - THRESHING

1

169853C2

PULLEY, cyl beater drive, 14 in. OD

1шт.

2

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib hd

1шт.

3

169854C1

PULLEY, cylinder beater driven, 18-11/16 in. OD

1шт.

4

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff, hard

1шт.

5

166598C2

V-BELT,0.63" W x 199.87" L, 3 Ribs

Cylinder Beater Drive 0.63" W x 199.87" L, 3 Ribs

1шт.

6

179829C1

SUPPORT ASSY, main drive front shield

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

1шт.

7

180566C91

SHIELD ASSY, main drive, includes ref. nos. 28 and 29

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt-tr-hd

1шт.

8

173115C91

PULLEY ASSY.

PULLEY, cyl beater drive belt tightener, 10 in. OD

1шт.

280954

NUT,3/4"-10, G5

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4 x 4 znd hex-hd cap Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

9

179830C1

ANGLE, main drive shield attaching

1шт.

10

179832C1

ARM ASSY, main drive idler

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self, tap lub

1шт.

12

179836C1

ANGLE, idler pivot LH

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex cap

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

13

179837C1

ANGLE, idler pivot RH

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex cap

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

14

55074C1

PIN

STOP, pin

1шт.

15

179841C1

TUBE,.531" ID x .625" OD x 6.25" L

drawbolt spacer

1шт.

16

179840C2

ROD,1/2" - 13 x 15 1/2"

BOLT, draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10 znd

1шт.

460908R1

WASHER

17/32 x 1-1/2 x ga znd

1шт.

464623R1

WASHER

.66 x 1.5 x .10 znd

1шт.

17

MA22159

SPRING

1шт.

18

179838C1

SUPPORT, drawbolt

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10 znd

1шт.

19

169865C1

SUPPORT, main drive shield rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

20

179839C1

PIN, main drive pivot

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

495-11081

WASHER,3/4", SAE

.81 x 1.5 x .13

1шт.

21

SHAFT, main drive output, refer to group 7 under main drive case

1шт.

22

SHAFT, cylinder beater, refer to this group under cylinder beater and support

1шт.

23

21367R1

SPACER,1/4" Pipe x 2 1/2"

1/4 x 2-1/2 std pipe

1шт.

120376

NUT,5/16"-18, G5

1шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

SCREW, 5/16 x 3-1/2 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

1шт.

24

174655C1

SUPPORT

INDICATOR, spring length

1шт.

25

189140C1

CHANNEL, belt guide

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24497R1

WASHER

.34 x 1.25 x .12

1шт.

26

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe 1/4" Pipe x 3/4"

1шт.

27

189141C2

SUPPORT

belt guide

1шт.

28

56630C1

PRODUCT GRAPHIC

caution instruction

1шт.

29

2754442R1

PRODUCT GRAPHIC

caution instruction

1шт.

30

187279C1

SUPPORT, beater driven pulley

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

31

187278C1

SUPPORT, beater driven shield

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

180424C91

MAIN DRIVE BELT GUIDE, serial no. 19000 and below, includes ref. nos. 25 thru 27, parts accessory

1шт.
