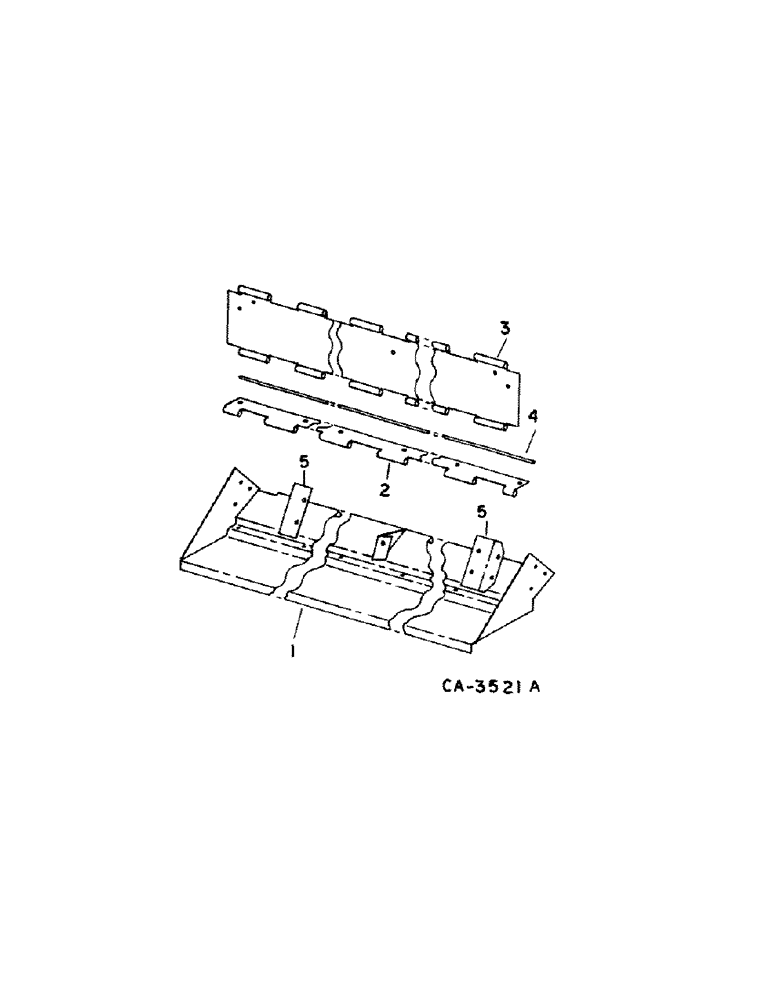

Запчасти Case IH 914 (21-05) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER, SERIAL NUMBER 19000 AND BELOW (14) - THRESHING

1

177704C1

RETARDER ASSY, stone

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znd slt-truss-hd

1шт.

2

177706C1

HINGE

stone retarder lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

3

177707C1

HINGE, stone retarder double

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

175931C1

ROD

stone retarder hinge

1шт.

5

177698C1

ANGLE ASSY, hinge support

2шт.
