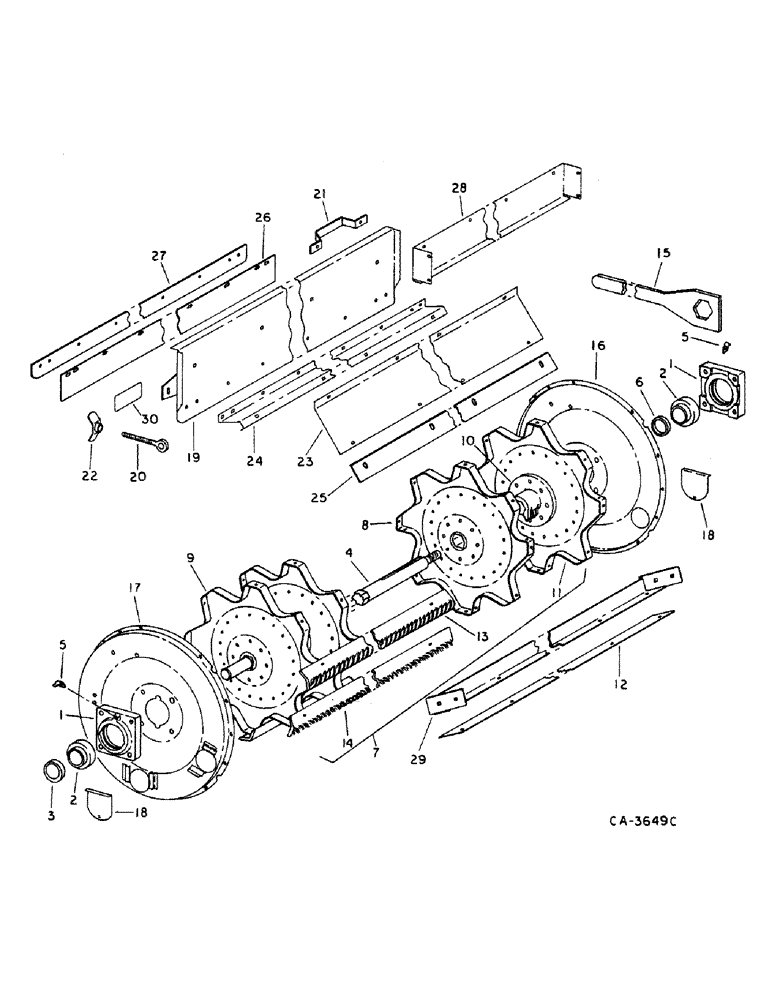

Запчасти Case IH 914 (21-01) - THRESHING CYLINDER AND CONCAVE, RASP BAR CYLINDER (14) - THRESHING

1

172316C11

HOUSING

ASSY, cylinder shaft brg, includes ref. nos. 2 and 3

2шт.

2

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING, cylinder shaft

2шт.

3

618032R11

COLLAR

ASSY, cyl shaft left brg lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd

1шт.

4

172314C11

SHAFT ASSY, cylinder

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex lock

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga

1шт.

21787R1

WASHER

2-1/16 x 2-15-16 x 16 ga

1шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

2шт.

6

629712R1

SPACER

cylinder shaft

1шт.

7

177220C91

CYLINDER ASSY, rasp bar, includes ref. nos. 8, 9, 11, 13 and 14

1шт.

8

177223C1

HEAD ASSY, cylinder inner

3шт.

9

177224C92

HEAD

W/HUB ASSY, cylinder outer LH, includes ref. no. 10

1шт.

10

172312C1

HUB, outer head

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 znd hex, type 8

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 b-hd

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

366864C1

LOCK WASHER,1/2"

WASHER, LOCK, , 166067C91 package 1/2"

1шт.

25710R1

WASHER

.53 x 1.06 x .13 znd hard

1шт.

11

177225C92

HEAD W/HUB ASSY, cylinder outer RH, includes ref. no. 10

1шт.

12

177539C1

FLAP

cylinder stripper

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad prev torque

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

1шт.

13

180501C1

BAR

cylinder LH rasp

4шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 znp hex lock

1шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-NF x 3/4 type 5

1шт.

181627

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

SCREW, 3/8-24 x 1/2 znd hex-hd cap

1шт.

191637

SCREW, 3/8-24 x 1 znd hex-hd cap

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

180502C1

BAR

cylinder RH rasp

4шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 znp hex lock

1шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-NF x 3/4 type 5

1шт.

181627

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

SCREW, 3/8-24 x 1/2 znd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 znd hex-hd cap

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

170432C1

IGNITION KEY

TOOL ASSY, cylinder rocking bar

1шт.

16

172451C1

COVER ASSY, cylinder right end

1шт.

20816R1

BOLT, 3/8 x 1/2 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

172450C1

COVER ASSY, cylinder left end

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex, jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

469668R1

WASHER

13/32 x 3/4 16 ga C-Z

1шт.

18

633518R1

DOOR

cyl inspection

4шт.

19

180561C91

DOOR ASSY, cylinder front, includes ref. nos. 30

1шт.

20

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

EYEBOLT, cyl frt door

2шт.

21

160638C1

HANDLE

cyl frt door

1шт.

22

177531C1

FLANGE NUT

NUT ASSY, cyl frt door locking

2шт.

23

177520C1

DEFLECTOR, cyl

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

24

177521C1

SUPPORT, cyl deflector lower

1шт.

25

174820C1

PLATE, cyl deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flane lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

26

197957C1

SUPPORT

SEAL, cyl deflector backing

1шт.

27

197963C1

STRIP, cyl deflector backing seal

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

450629

SCREW, 1/4 x 3/8 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

177528C1

SUPPORT, cyl door upper

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

29

177536C1

STRIPPER ASSY, cyl

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

179749C2

PRODUCT GRAPHIC

caution instruction

1шт.
