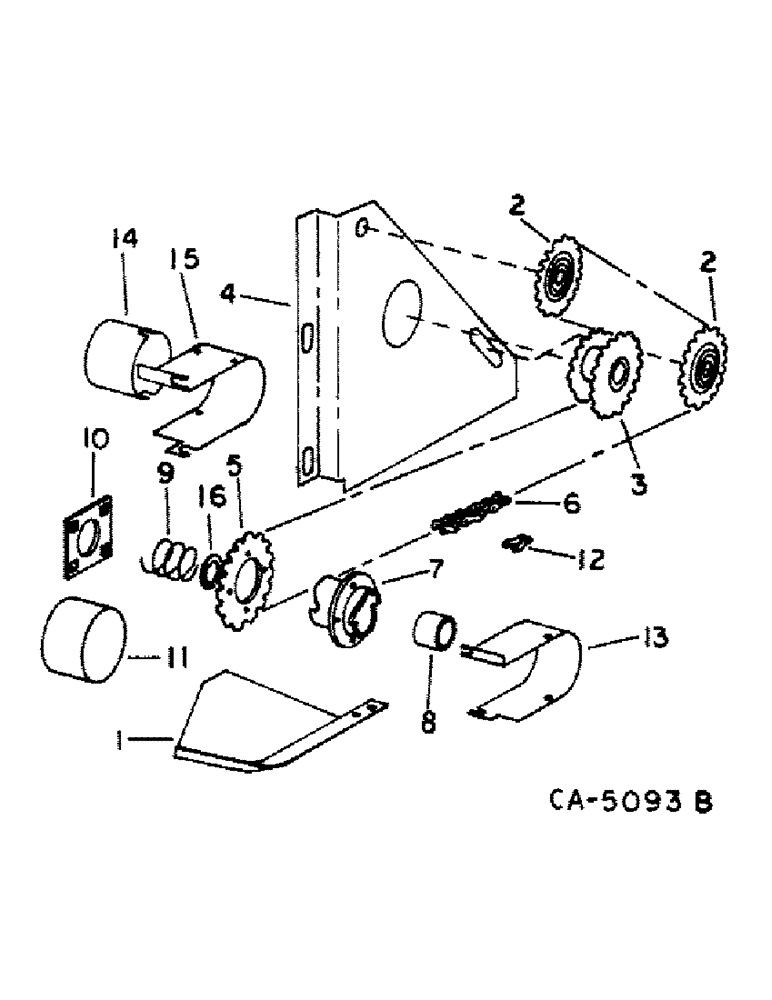

Запчасти Case IH 914 (33-27) - FEEDER AND HEADER, WINDROW PICKUP LEFT HAND DRIVE (13) - FEEDER

1

177723C2

GUARD

SHIELD ASSY, lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

2

565442R91

SPROCKET

idler bearing, 17T

2шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

3

197598C1

SPROCKET ASSY.

SPROCKET ASSY, auger & pickup drive, 16T and 18T

1шт.

4

197597C1

SUPPORT

rear drive idler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-tr-hd

1шт.

5

162251C1

SPROCKET ASSY.

SPROCKET, driven, 22T

1шт.

5

162248C1

SPROCKET ASSY.

SPROCKET, driven, 24T

1шт.

5

162249C1

SPROCKET ASSY.

SPROCKET, driven, 27T

1шт.

5

162252C1

SPROCKET ASSY.

SPROCKET, driven, 30T

1шт.

6

CHAIN ASSY, pickup drive, use 183 links from a 10 ft marked 1791D 2 connecting links 1310D and 1 roller link 1309D

1шт.

7

181608C91

RATCHET

W/BUSHING, pickup clutch, includes ref no. 8

1шт.

Ref #7 - 189699C93 Ratchet w/Notches both sides.. 11/17/95

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

8

157560C1

BUSHING

ratchet

1шт.

9

473238R1

SPRING

compression

1шт.

21214R1

WASHER

1.16 x 2.00 x .12

1шт.

10

181610C1

CLUTCH PLATE

DISC, clutch

1шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

BOLT, 5/16 x 3-1/2 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

181611C1

SPACER

3.12 x 3.25 x 2.0

1шт.

12

1309D

LINK

roller

1шт.

12

1310D

LINK

connecting

1шт.

12

1315D

LINK

offset

1шт.

13

187082C2

GUARD

SHIELD, LH drive inner

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 X 1/2 slt-truss-hd

1шт.

14

176960C1

GUARD

SHIELD, drive outer

1шт.

935735R1

WING NUT

1/4-20 wing

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

15

176959C2

GUARD

SHIELD, inner drive RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

16

181612C1

SPACER

1.15 x 1.31 x 2.0

1шт.
