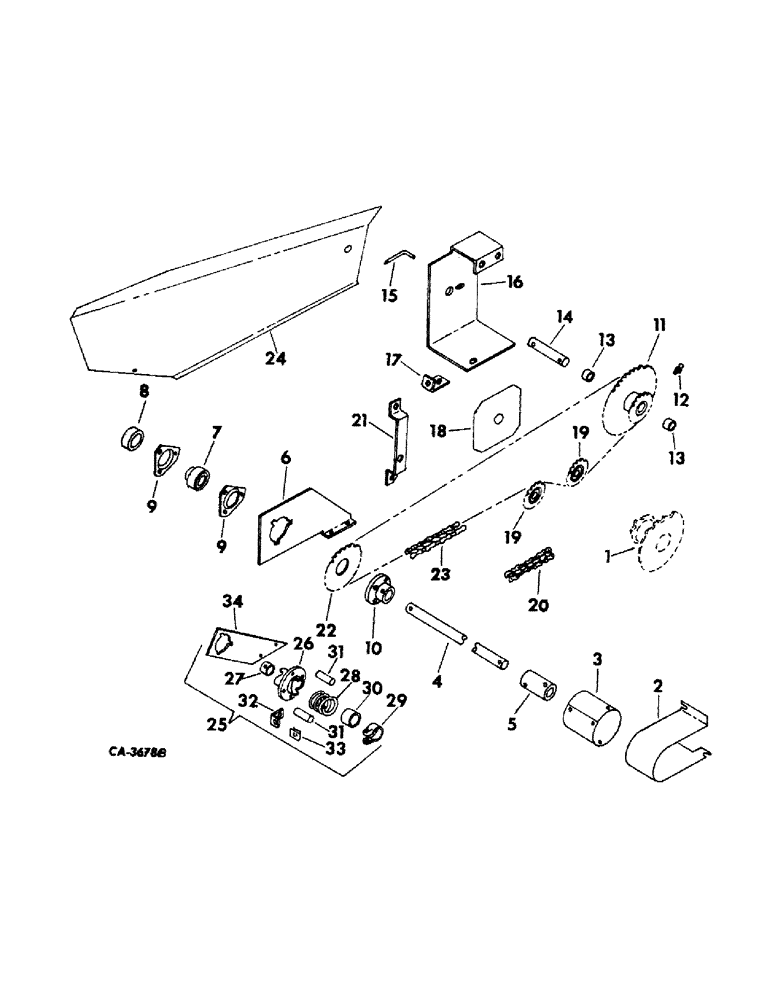

Запчасти Case IH 914 (33-25) - FEEDER AND HEADER, WINDROW PICKUP RIGHT HAND DRIVE (13) - FEEDER

1

SPROCKET W/BUSHINGS, jackshaft double, refer to this group under mechanical jackshaft drive

1шт.

2

176959C2

GUARD

SHIELD, inner drive RH, for 110 in. pickup, for 132 in. pickup

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

3

176960C1

GUARD

SHIELD, outer drive, for 110 in. pickup, for 132 in. pickup

1шт.

935735R1

WING NUT

1/4 C-Z wing

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

4

179865C1

SHAFT, pickup drive, for 110 in. pickup

1шт.

4

179866C1

SHAFT, pickup drive, for 132 in. pickup

1шт.

5

176947C1

COUPLING, BREAK AWAY

COUPLING, drive shaft, for 110 in. pickup, for 132 in. pickup

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

6

176952C1

SUPPORT

pickup drive shaft, for 110 in. pickup, for 132 in. pickup

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

142619H

WASHER

.406 x .75 x .12

1шт.

7

455960R91

BALL BEARING

BEARING, drive shaft ball, for 110 in. pickup, for 132 in. pickup

1шт.

8

557115R11

COLLAR

COLLAR W/SET SCREW, for 110 in. pickup, for 132 in. pickup

1шт.

9

571425R1

FLANGED BEARING

drive shaft brg, for 110 in. pickup, for 132 in. pickup

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

176961C1

HUB ASSY.

HUB ASSY, pickup driven

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

11

197589C91

SPROCKET ASSY.

SPROCKET ASSY, drive double, 42T, and 18T, includes ref no. 13

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 thd self-tap lub

1шт.

13

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

sprocket hub

2шт.

14

197591C1

SHAFT

reversing sprocket

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.06 x 2.00 x .13 znd

1шт.

15

55074C1

PIN

retaining

1шт.

16

197613C1

SUPPORT

drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

17

197612C1

SUPPORT

BRACE, drive support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

18

178060C1

GUARD

SHIELD, idler sprocket

2шт.

19

565442R91

SPROCKET

idler bearing, 17T

2шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd mach

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.53 x 1.50 x .12 sq znd

1шт.

20

CHAIN ASSY, drive extension, use 5 link from 10 ft roll marked 1791D and 2 connecting links 1310D, 1 offset link 1315D and roller link 1309D

1шт.

21

179285C1

SUPPORT

pickup drive idler

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

22

162251C1

SPROCKET ASSY.

SPROCKET, driven, 22T, 365 RPM

1шт.

22

162248C1

SPROCKET ASSY.

SPROCKET, driven, 24T, 334 RPM

1шт.

22

162249C1

SPROCKET ASSY.

SPROCKET, driven, 27T , 297 RPM

1шт.

22

162252C1

SPROCKET ASSY.

SPROCKET, driven, 30T, 267 RPM

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

CHAIN ASSY, drive, use 147 links from 10 ft roll marked 1791D, 1 connecting link 1310D, 2 offset links 1315D

1шт.

24

187265C1

GUARD

SHIELD, pickup drive

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

20803R1

WASHER

.41 x 1.0 x .12

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

180592C91

PACKAGE, overrunning clutch, serial nos. 8001 thru 2300, parts accessory, includes ref nos. 26 thru 34

1шт.

26

181608C91

RATCHET

W/BUSHING, pickup clutch, includes ref no. 27

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

27

157560C1

BUSHING

ratchet

1шт.

28

473238R1

SPRING

compression

1шт.

21214R1

WASHER

1.16 x 2.00 x .12

1шт.

29

384371R1

CLAMP

shaft

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16 x 2 hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

30

567961R1

SPACER, 1.157 x 625 tubing

1шт.

31

154783C1

SPACER

.334 x 1.312 tubing

4шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20893R1

WASHER

.34 x 1.00 x .12

1шт.

32

154971C1

ANGLE

shield support

2шт.

33

79993R1

NUT

1/4 speed

2шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

1шт.

34

187089C1

BAR, bearing brace

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22264R1

WASHER

.41 x 1.00 x .18

1шт.
