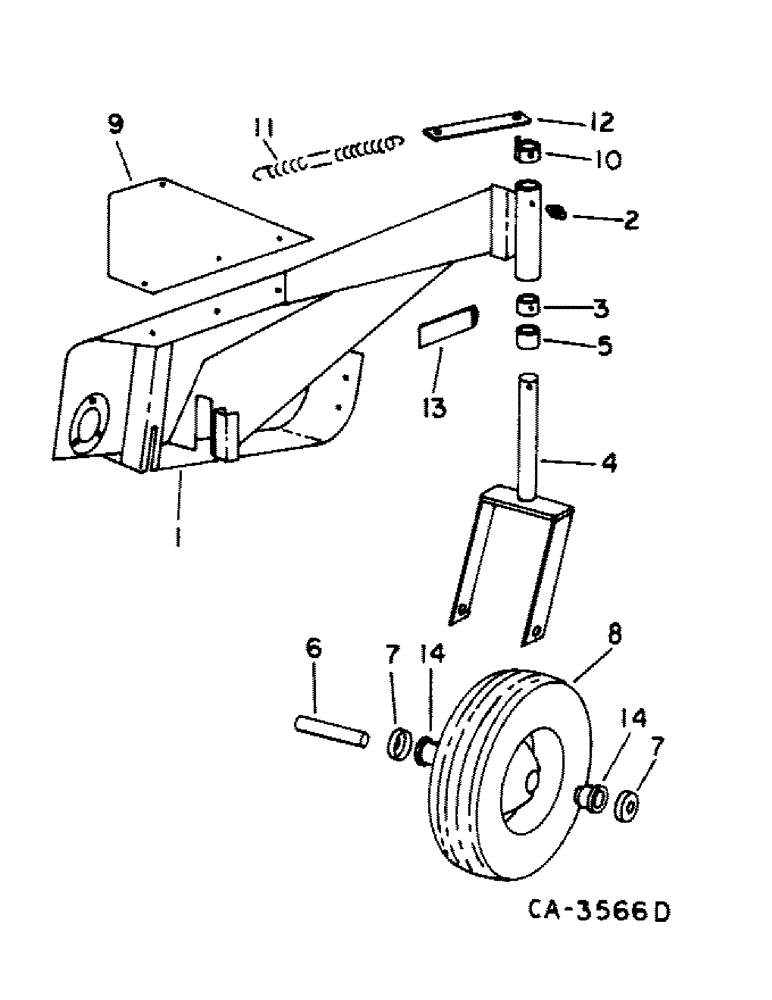

Запчасти Case IH 914 (33-23) - FEEDER AND HEADER, WINDROW PICKUP, GAUGE WHEELS (13) - FEEDER

1

197807C93

SUPPORT

ASSY, gauge wheel LH

1шт.

1

197808C93

SUPPORT

ASSY, gauge wheel RH, includes ref. no. 3

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tap str lub

2шт.

3

454172R1

BUSHING

pivot tube

4шт.

4

176919C1

YOKE ASSY, gauge wheel, serial no. 19000 and below

2шт.

4

197821C1

CLEVIS

YOKE ASSY, gauge wheel, serial no. 19001 and above

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

1шт.

5

155228C1

SPACER,1 3/8" Tube x 1"

6шт.

6

176923C1

BUSHING

gauge wheel inner

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8 x 7 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

176924C1

CUP

gauge wheel brg

4шт.

8

176925C1

WHEEL

W/TIRE AND TUBE, gauge, ref. no. 14

2шт.

9

176940C1

GUARD

SHIELD, gauge wheel rear

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

21496R1

WASHER

.34 x .75 x .12 znd

1шт.

10

179485C1

HUB

ASSY, wheel fork LH

1шт.

10

179486C1

HUB

ASSY, wheel fork RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 znd std, hd

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

11

580107R1

SPRING

wheel

2шт.

12

642187C1

BAR

wheel hub tie

2шт.

13

174732C1

REFLECTOR

amber

1шт.

14

180695C1

BUSHING

gauge wheel hub

4шт.

1

176972C1

FINGER

wind deflector, 11 for 110 in. pickup, 13 for 132 in. pickup

1шт.

2

176973C1

TUBE,110" Length

deflector, for 110 in. pickup

1шт.

2

176974C1

TUBE

deflector, for 132 in. pickup

1шт.

3

176975C1

BRACKET

deflector tube support

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

4

176976C1

SUPPORT

deflector tube adj

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 znd std, hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

5

181888C1

GUARD

DEFLECTOR ASSY, for 110 in. pickup

1шт.

5

181887C1

GUARD

DEFLECTOR ASSY, for 132 in. pickup

1шт.

137263

STRIP

3/16" x 2"

1шт.

20802R1

WASHER

1.28 x 2.50 x .12

1шт.

6

181885C1

SUPPORT

deflector LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

6

181886C1

SUPPORT

deflector RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

7

586329R1

SPACER,3/4" Tube x 13/16"

.750 x 812

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

8

176925C1

WHEEL

w/tire and tube, gauge, includes Ref. no. 14

2шт.

9

176940C1

GUARD

SHIELD, gauge wheel rear

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

21496R1

WASHER

.34 x .75 x .12 znd

1шт.

10

179485C1

HUB

ASSY, wheel fork LH

1шт.

10

179486C1

HUB

ASSY, wheel fork RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 znd std-hd

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

11

580107R1

SPRING

wheel

2шт.

12

642187C1

BAR

wheel hub tie

2шт.

13

174732C1

REFLECTOR

amber

1шт.

14

180695C1

BUSHING

gauge wheel hub

4шт.
