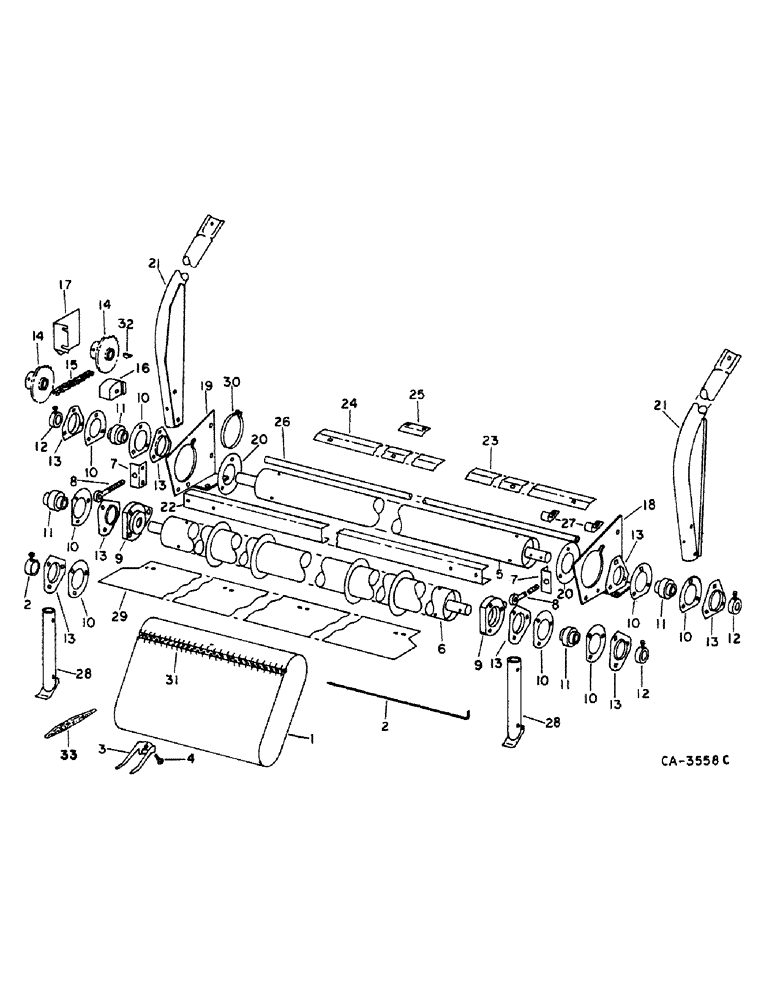

Запчасти Case IH 914 (33-21) - FEEDER AND HEADER, WINDROW PICKUP, BASIC (13) - FEEDER

NOTE- when replacing 197996C91 belts order 5 or 6 of 187045C91 belts so as to maintain proper belt tension

1шт.

1

187045C91

BELT

W/32 TEETH, pickup conveyor includes ref. nos. 2, 3 and 4, 5 for 110 in. pickup, 6 for 132 in. pickup

1шт.

1

185527C92

BELT

w/56 teeth pickup conveyor, special, 5 required for 110 in. pickup, 6 required for 132 in. pickup

1шт.

2

176887C1

ELECTRICAL WIRE

WIRE, belt lacing, 5 for 110 in. pickup, 6 for 132 in. pickup

1шт.

3

176888C1

TOOTH

pickup, 160 for 110 in. pickup for 32 teeth belt, 280 for 110 in. pickup for 56 teeth belt, 192 for 132 in. pickup for 32 teeth belt, 336 for 132 in. pickup for 56 teeth belt

1шт.

4

176889C1

BOLT,Elevator, Flat Hd, 1/4" - 20 x 19.05mm

pickup tooth, 160 for 110 in. pickup for 32 teeth belt, 280 for 110 in. pickup for 56 teeth belt, 192 for 110 in. pickup for 32 teeth belt, 336 for 132 in. pickup for 56 teeth belt

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

5

176890C2

ROLLER

ASSY, upper belt, for 110 in. pickup

1шт.

5

176892C2

ROLLER

ASSY, upper belt, for 132 in. pickup

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 znd

9шт.

6

176891C1

ROLLER

ASSY, lower belt, for 110 in. pickup

1шт.

6

176893C1

ROLLER

ASSY, lower belt, for 132 in. pickup

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

7

935379R1

BRACKET

ANGLE, lower roller tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-hd crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

8

935380R1

BOLT,1/2" - 13 x 5.50"

lower roller tightener

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

9

176900C1

RING

RETAINER, lower roll

2шт.

10

176935C1

SHIM

brg

8шт.

11

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

ball

4шт.

12

557115R11

COLLAR

COLLAR W/SET SCREW, brg lkg

4шт.

13

571425R1

FLANGED BEARING

brg

8шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd no. 3 plow

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

14

176901C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 17T

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2.250 hd type 1

1шт.

15

CHAIN ASSY, lower roller drive, use 89 links from a 10 ft roll marked 1791D, 2 connecting links 1310D, 1 offset link 1315D and 1 roller link 1309D

1шт.

16

575874R1

BLOCK

chain tightener, for use w/mechanical reel drive

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

1шт.

161946C1

NUT

5/16 flange lock

1шт.

17

176936C1

GUARD

SHIELD, lower roll drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x slt-truss-hd

1шт.

18

197594C1

SUPPORT

ASSY, pickup LH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 znd hex-hd, type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex, type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

19

197595C1

SUPPORT

ASSY, pickup RH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 znd hex-hd, type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex, type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

20

176908C1

RETAINER

support pivot

2шт.

21

179394C2

PIPE

ASSY, pickup support LH

1шт.

21

179395C2

PIPE

ASSY, pickup support RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

176927C1

CHANNEL

cross tie, for 110 in. pickup

1шт.

22

176928C1

CHANNEL

cross tie, for 132 in. pickup

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 znd hex-hd, type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex, type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

23

177721C1

SUPPORT

seal LH, for 110 in. pickup

1шт.

23

177709C1

SUPPORT

seal LH , for 132 in. pickup

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

24

177722C1

SUPPORT

seal RH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga znd

1шт.

25

177711C1

CLIP

backup seal, 4 for 110 in. pickup, 5 for 132 in. pickup

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

176933C1

STRIPPER

finger, for 110 in. pickup

1шт.

26

176934C1

STRIPPER

finger, for 132 in. pickup

1шт.

27

177712C1

CLIP

hose retainer, 6 for 110 in. pickup, 7 for 132 in. pickup

1шт.

28

177714C1

ROD

STAND ASSY, pickup

2шт.

153528C1

COTTER PIN

3/32 ga

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 std, hd

1шт.

29

176955C2

SEAL

front, for 110 in. pickup

1шт.

29

176956C2

SEAL

front, for 132 in. pickup

1шт.

30

179399C1

BAND

pickup pivot

2шт.

31

567631R92

STRAP

LACING, conveyor belt, consists of 20 cards of 50 clipper lacing no. 1-D hooks on each card

1шт.

32

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

33

180120C91

KIT

PACKAGE, pickup belt roller, parts accessory, 5 for 110 in. pickup, 6 for 132 in. pickup

1шт.

182148C1

TOOL

conveyor belt lacer, not illustrated

1шт.
