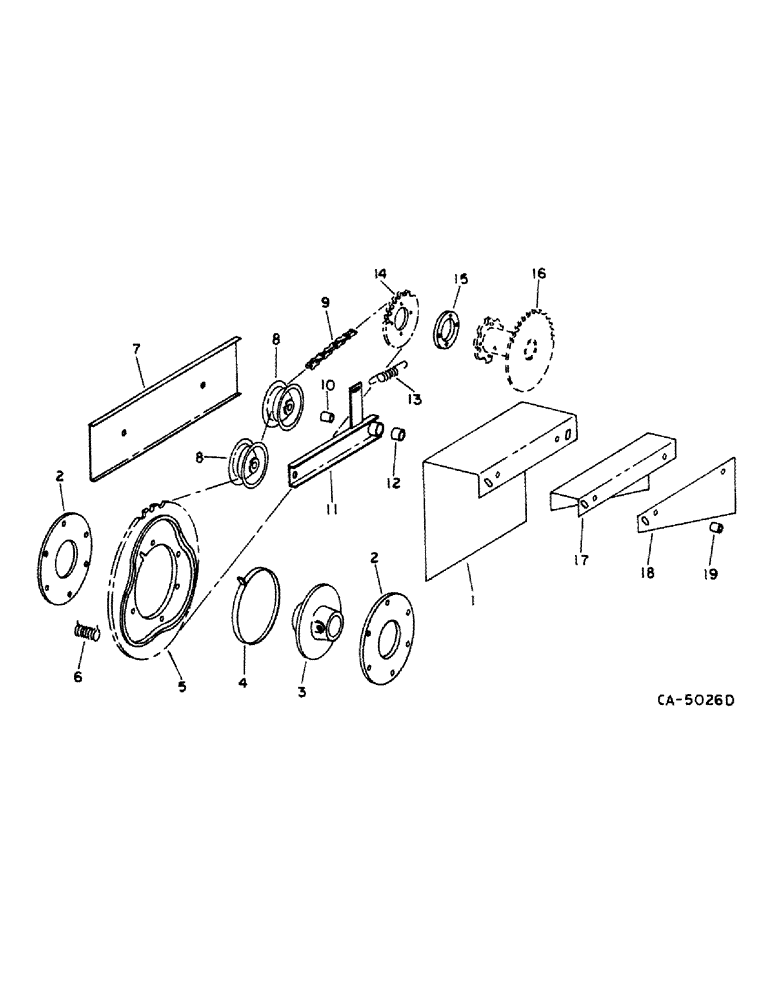

Запчасти Case IH 914 (33-20) - FEEDER AND HEADER, MECHANICAL REEL DRIVE (13) - FEEDER

1

187266C1

SUPPORT

reel driven slip clutch

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

569436R1

PLATE

reel clutch clamp

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

3

633173R1

HUB

reel clutch

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16 x 2-3/4 hex-hd

1шт.

271501

SOCKET

NUT, 7/16 hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

570029R1

BAND

reel clutch

1шт.

5

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft driven, 29T

1шт.

6

568243R1

SPRING

reel clutch

3шт.

7

187253C1

GUARD

SHEILD, reel idler

1шт.

8

559168R91

PTO

PULLEY, chain idler brg, 3-1/2 in OD

2шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

9

CHAIN ASSY, reel drive, use 85 links from 10 ft roll marked 569089R91 and two connecting links 587372R91, 1 offset link 456929R91 and 1 roller link 456979R91

1шт.

10

675601R1

SPACER

pivot

1шт.

11

170726C91

ARM

ASSY, chain idler, includes ref. no. 12

1шт.

18817R1

BOLT,Hex, 1/2" - 13 x 6", Gr 2

1/2 x 6 hex-hd mach

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .12 znd

1шт.

12

398274R1

BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L

idler arm

1шт.

13

662632R1

SPRING

idler

1шт.

14

179037C1

DRIVE SPROCKET

SPROCKET, reel drive, 19T, 36 RPM

1шт.

14

179038C1

DRIVE SPROCKET

SPROCKET, reel drive, 22T, 42 RPM

1шт.

14

179039C1

DRIVE SPROCKET

SPROCKET, reel drive, 25T, 48 RPM

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

179040C1

SPACER

reel drive sprocket

1шт.

16

SPROCKET W/BRUSHINGS, jackshaft double, refer to this group under mechanical jackshaft drive

1шт.

17

187251C1

SUPPORT

reel driven sprocket

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

187264C1

BAR

reel driven sprocket shield

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

142619H

WASHER

.41 x .75 x .12

1шт.

19

85490H

SPACER

reel driven sprocket

2шт.
