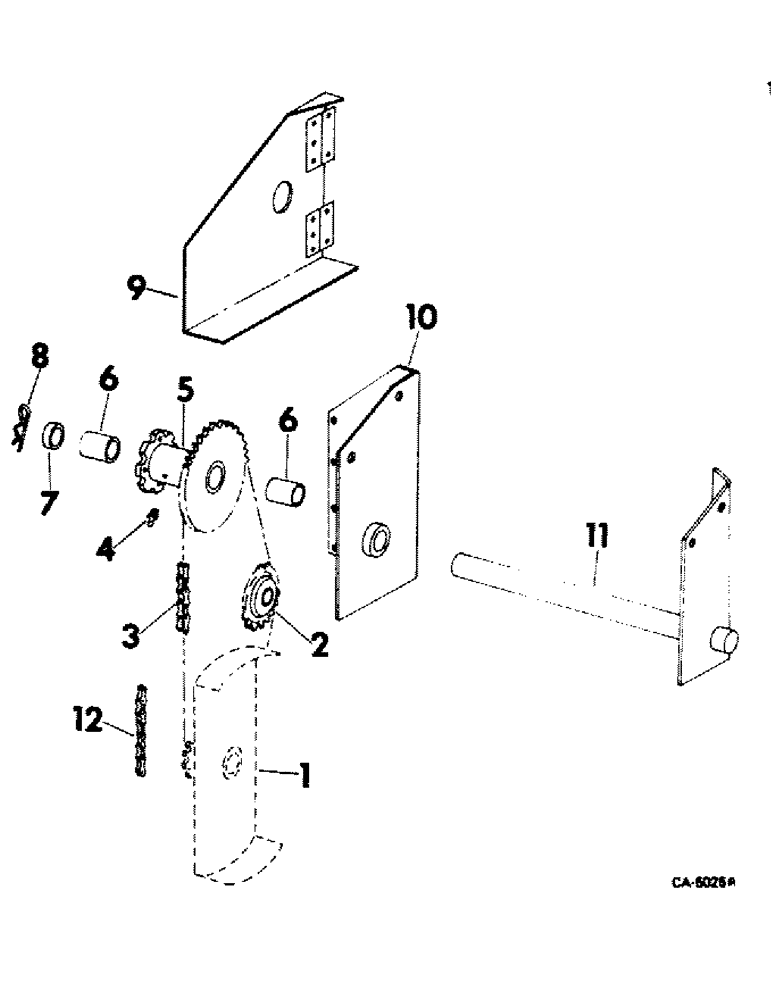

Запчасти Case IH 914 (33-19) - FEEDER AND HEADER, MECHANICAL JACKSHAFT DRIVE, FOR REEL OR WINROW PICKUP (13) - FEEDER

1

RETAINER W/BEARING AND SPROCKET, refer to this group under header auger

1шт.

2

565442R91

SPROCKET

idler brg, 17T, 1 used not for windrow pickup, 2 used for windrow pickup

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

.53 x 1.50 x .12

1шт.

3

CHAIN ASSY, jackshaft drive, use 89 links from 10 ft roll marked 1791D, 1 connecting link 1310D, 2 offset links 1315D

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self, tap lub

1шт.

5

179034C91

DRIVE SPROCKET

SPROCKET W/BRUSHINGS, jackshaft double, 8T and 31T, includes ref. no. 6

1шт.

6

571191R1

BUSHING

hub

2шт.

7

11449P

SPACER,1 1/4" Pipe x 1/2"

1-1/4 x 1/2 std, pipe

2шт.

8

520177R1

PIN

3/16 qa cot

1шт.

22050R1

WASHER

1.281 x 2.75 x .06

1шт.

9

179048C1

GUARD

SHIELD ASSY, reel jackshaft

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4 x 3/4 hex-hd

1шт.

10

179216C2

SUPPORT

ASSY, jackshaft outer

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

11

179044C1

SHAFT

JACKSHAFT ASSY, reel drive

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 hex-hd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

12

CHAIN ASSY, reel drive extension, use for windrow pickup, use 11 links from 10 ft roll marked 1791D and 1 connecting link 1310D and 1 offset link 1315D

1шт.
