Запчасти Case IH 914 (33-18) - FEEDER AND HEADER, REEL SUPPORT ARM AND MECHANICAL REEL LIFT (13) - FEEDER

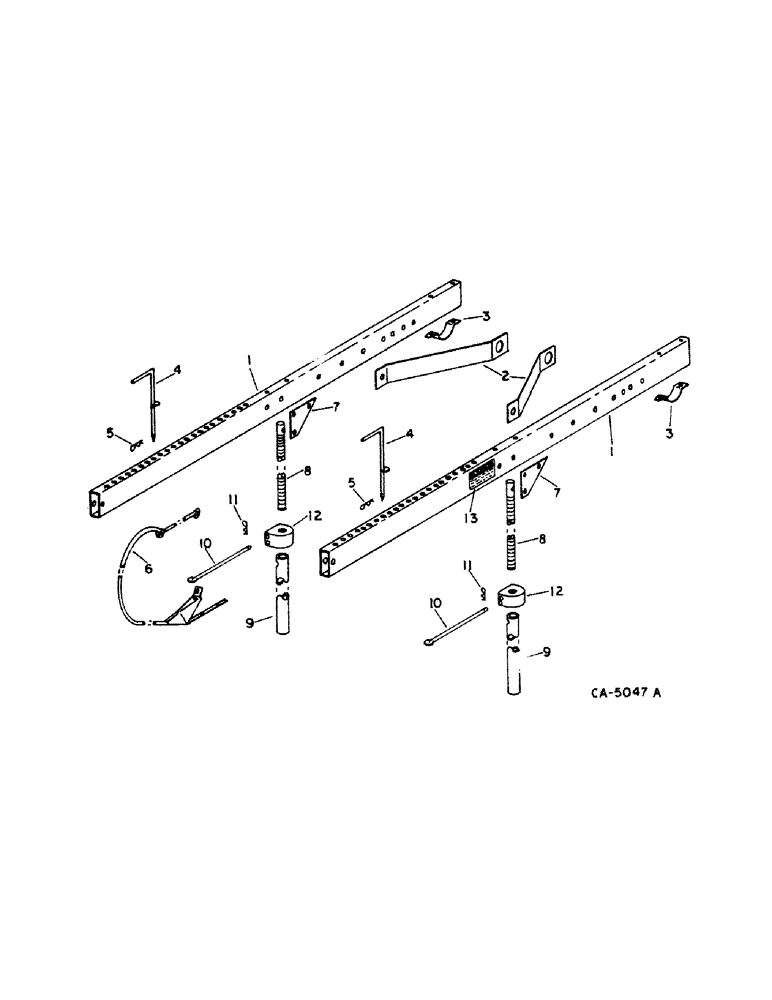

Схема запчастей Case IH 914 - (33-18) - FEEDER AND HEADER, REEL SUPPORT ARM AND MECHANICAL REEL LIFT (13) - FEEDER
7
8
4
3
4
12
8
5
1
7
5
13
10
1
6
10
3
12
11
11
9
9
2

Артикул

Название

Примечание

Количество

1

184593C91

ARM

reel support, includes ref. no. 13

2шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 znd hex-hd mach

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

176786C1

BRACE

ASSY, reel support arm

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

3

176787C2

CLAMP

reel arm

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD P/T lock type 5

1шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8 x 3-3/4 hex-hd cap

4шт.

4

176788C2

ROD ASSY.

ROD ASSY, reel locking

2шт.

5

586591R1

COTTER PIN

PIN, 1/8 qa cotter

2шт.

6

178619C1

ROD ASSY.

ROD ASSY, divider RH, long

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 nylon insert

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 8 ga

1шт.

7

176725C1

PLATE

reel lift bolt

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

176726C1

BOLT

reel lift turnbuckle

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 znd std, hd

1шт.

9

176727C1

TUBE,1.28" ID, 1.66" OD, 15.5" Length

reel lift

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 znd std, hd

1шт.

10

176730C1

ROD

reel lift

2шт.

11

520175R1

CLIP

PIN, 3/16 qa cot

2шт.

12

176731C1

BOLT,1" - 8

NUT, reel lift

2шт.

13

185944C1

PRODUCT GRAPHIC

danger

1шт.

Выбрано товаров: 32
