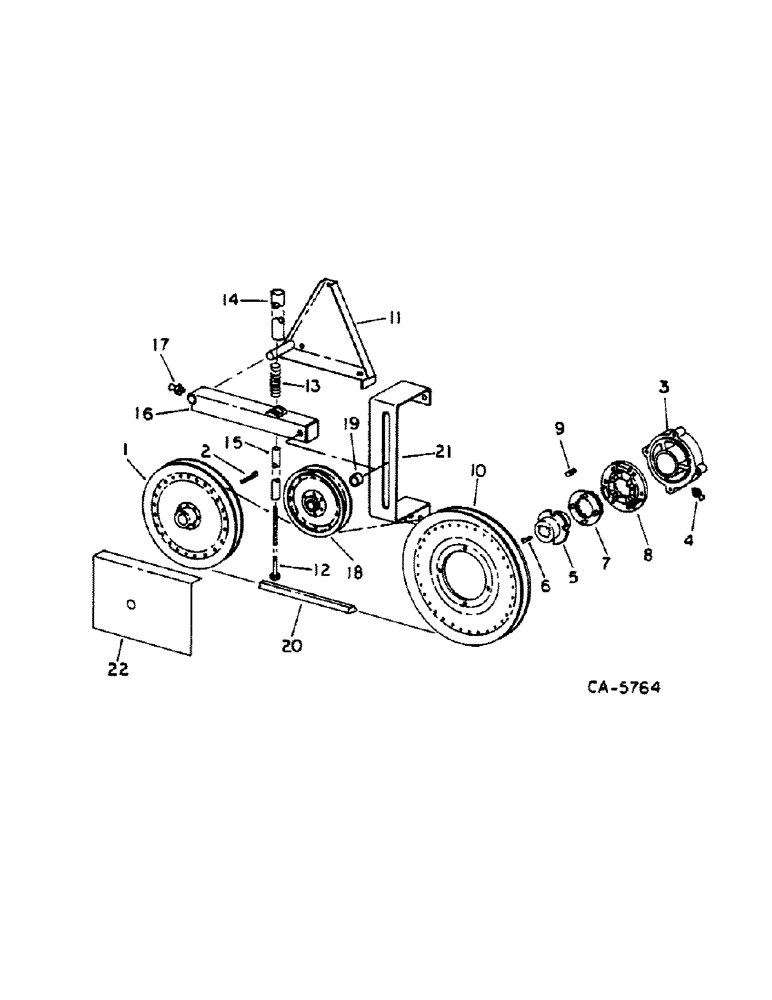

Запчасти Case IH 914 (33-15) - FEEDER AND HEADER, HEADER JACKSHAFT DRIVE (13) - FEEDER

1

176568C1

PULLEY

jackshaft drive, 13.5 OD

1шт.

2

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, hd sq tapered

1шт.

3

179031C2

HUB

feeder driven pulley

1шт.

4

16964R91

FITTING

1/4-28 90 deg self, tab lub

1шт.

5

179029C1

HUB CAP

HUB, feed conveyor slip clutch

1шт.

6

Q3730

KEY, 3/8 x 2-1/2 sq, tapered Gib, 3/8" Sq x 2 1/2" Tap

1шт.

7

179030C1

RATCHET

feeder slip clutch outer

1шт.

8

179032C1

RATCHET

feeder slip clutch inner

1шт.

27456R1

BOLT, 3/8 x 3-3/4 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

Q3500

WASHER

.656 x 1.125 x .067 PLN

1шт.

9

189000C1

SPRING

feed conveyor slip clutch

6шт.

10

176564C1

PULLEY

feeder jackshaft drive

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

176545C1

SUPPORT

ASSY, feeder jackshaft drive tightener pivot, serial no 19000 and below

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

12

176548C1

BOLT,Hex, 1/2" - 13

feeder jackshaft drive tightener adjusting, serial no. 19000 and below

1шт.

13

523267R1

SPRING

adjusting bolt, serial no. 19000 and below

1шт.

14

176569C1

SPACER

adjusting bolt spring, serial no. 19000 and below

1шт.

15

176544C2

SPACER

adjusting bolt spring inner, serial no. 19000 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21883R1

WASHER

.531 x 1.750 x .090

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

16

176549C1

ARM

ASSY, feeder jackshaft drive tightener pivot, serial no. 19000 and below

1шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self, tab lub, serial no. 19000 and below

1шт.

18

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

19

469072R1

SPACER, 3/4 x 2 extra strong pipe, serial no. 19000 and below

1шт.

19

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

657 x .875 x .625, serial no. 19001 and above

1шт.

20

176576C1

BELT,0.879" W x 195.99" L

V-BELT , Feeder jackshaft drive, OC 0.879" W x 195.99" L

1шт.

21

189013C1

SUPPORT, jackshaft drive idler, serial no. 19001 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22

185828C1

SHIELD ASSY, feeder jackshaft idler

1шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.
