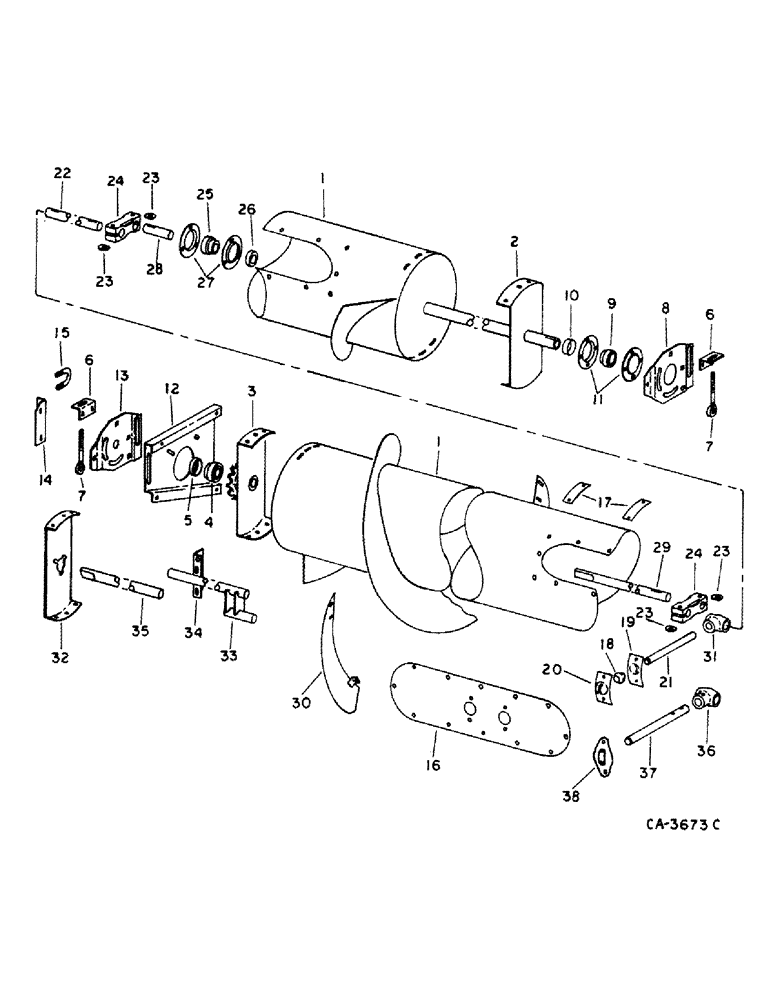

Запчасти Case IH 914 (33-13) - FEEDER AND HEADER, HEADER AUGER (13) - FEEDER

1

179876C1

AUGER

ASSY, header

1шт.

2

181581C1

SHAFT ASSY.

SHAFT ASSY, auger LH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 hex-hd type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 hex type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .81 x .065

1шт.

3

177659C1

RETAINER

W/BRG AND SPROCKET, RH shaft, includes ref. no. 4

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 hex-hd type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 hex type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .81 x .065

1шт.

4

586609R92

BEARING ASSY,1.0005" ID x 52 mm OD x 1.21875"

ASSY

1шт.

5

455102R21

COLLAR

W/SET SCREW, brg lkg

1шт.

6

177065C1

ANGLE

auger adjusting

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

177662C1

EYEBOLT,1/2" - 13 x 3 1/2"

BOLT, auger adj eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20731

WASHER, .53 sq x 1 x .06

1шт.

495-11053

WASHER,1/2", SAE

.531 x .106 x .095

1шт.

8

177081C1

BRACKET

auger brg LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga

1шт.

9

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING, auger shaft LH

1шт.

10

455112R11

COLLAR

W/SET SCREW, bearing locking

1шт.

11

663562R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

177658C1

SUPPORT

auger RH, not for headers w/serial no. 30001 and above w/o cutting equipment

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

13

177082C1

BRACKET

auger brg RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga

1шт.

14

177663C4

ANGLE

finger adjusting

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

finger adjusting

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD P/T lock type 5

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

16

150731C1

COVER

auger finger

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 P/HDCR tap

1шт.

17

167823C1

COVER

auger finger hole

4шт.

273924

SNAP RING

NUT, 1/4 CAD P/T lock type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

170720C1

BUSHING,13.13mm ID x 28.4mm OD

finger guide, for 1/2 in. dia. finger

12шт.

19

150723C1

RETAINER

finger bushing inner, for 1/2 in. dia finger

12шт.

20

150726C1

RETAINER

finger bushing outer, for 1/2 in dia finger

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

SCRW, 1/4 x 1/2 slt-tr-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

150728C1

SHAFT

FINGER, retractable, for 1/2 in. dia finger

1шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, 3/16 qa cotter

1шт.

22

159181C1

SHAFT

auger center, not for headers w/serial no. 30001 and above w/o cutting equipment

1шт.

23

28459KA

WASHER

auger center shaft, not for headers w/serial no. 30001 and above w/o cutting equipment

4шт.

24

158912C1

CLAMP

auger center shaft, not for headers w/serial no. 30001 and above w/o cutting equipment

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, auger shaft inner

3шт.

26

455102R21

COLLAR

W/SET SCREW, brg locking

3шт.

27

937517R1

FLANGE

inner brg

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

558353R1

SHAFT

auger stub, not for headers w/serial no. 30001 and above w/o cutting equipment

1шт.

29

177078C2

SHAFT

auger adjusting, not for headers w/serial no. 30001 and above w/o cutting equipment

1шт.

30

159191C91

AUGER

EXTENSION ASSY, header auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-tr-hd

1шт.

31

HUB, finger, for 1/2 in. dia finger order 180924C92 service package

16шт.

32

184556C1

RETAINER

auger RH shaft, serial no. 30001 and above w/o cutting equipment

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

33

185638C1

SHAFT ASSY.

SHAFT ASSY, center, serial no. 30001 and above w/o cutting equipment

1шт.

34

197879C1

ANGLE

auger center shaft clamp, serial no. 30001 and above w/o cutting equipment

1шт.

35

189964C1

SHAFT

auger adjusting, serial no. 30001 and above w/o cutting equipment

1шт.

36

187071C1

HUB

finger, for 5/8 in. dia. finger

16шт.

37

187072C3

FINGER

retractable, for 5/8 in. dia. finger

12шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot

1шт.

38

189649C1

GUIDE

finger, for 5/8 in. dia. finger

12шт.

273924

SNAP RING

NUT, 1/4 CAD P/T lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

39

Not used in this application

1шт.

180924C92

FINGER

service package auger, 5/8 in. dia., consists of, hub 187071C1, finger 187072C3, guide 189649C1

1шт.
