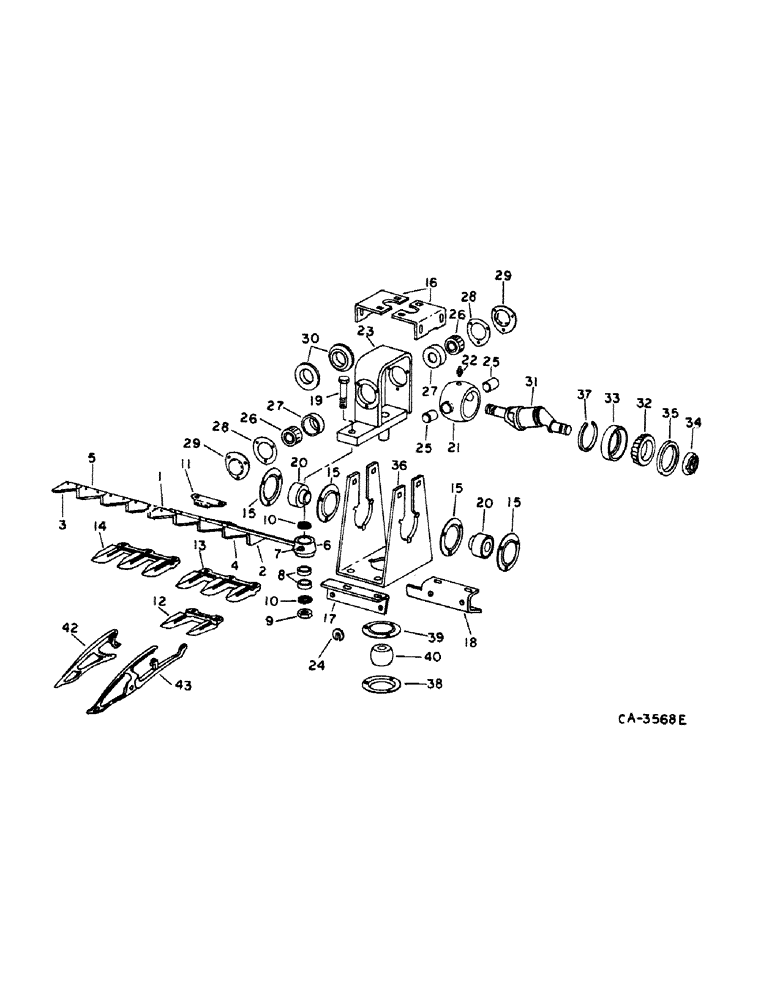

Запчасти Case IH 914 (33-09) - FEEDER AND HEADER, KNIFE (13) - FEEDER

1

179870C92

KNIFE ASSY

plain serrated

1шт.

1

179871C92

KNIFE

ASSY, chrome serrated, includes ref. nos. 2 thru 6

1шт.

13968R1

RIVET,Csk, 1/4" x 7/8"

1/4 x 7/8 74 deg ctsk-hd

1шт.

14755R1

RIVET,Oval Hd, .203" x 5/8"

no. 6 x 5/8 small, hd

1шт.

14763R1

RIVET,Oval Hd, .203" x 7/8"

no. 6 x 7/8 small, hd

1шт.

2

634789R1

KNIFE SECTION

SECTION, half LH, plain serrated

1шт.

2

634790R1

KNIFE SECTION

SECTION, half LH, chrome serrated

1шт.

3

634791R1

KNIFE SECTION

SECTION, half RH, plain serrated

1шт.

3

634792R1

KNIFE SECTION

SECTION, half RH, chrome serrated

1шт.

4

634787R2

KNIFE SECTION

SECTION, knife LH, plain serrated

3шт.

4

634788R2

KNIFE SECTION

SECTION, knife LH, chrome serrated

3шт.

5

634793R2

KNIFE SECTION

SECTION, knife, plain serrated

45шт.

5

634794R2

KNIFE SECTION

SECTION, knife, chrome serrated

45шт.

6

178466C91

HEAD ASSY.

HEAD W/BEARING, knife, includes ref. nos. 7 thru 9

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self, tap lub

1шт.

8

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

knife head ball

2шт.

9

22244R1

LOCK NUT

3/4 nylon insert

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , knife head brg 1.625", Int, #162

2шт.

11

176722C1

CLIP

knife holddown

11шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

633098R1

GUARD

knife double

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

176724C1

GUARD

knife triple LH

3шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

633240R1

GUARD

knife triple

12шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

202909C1

BEARING HOUSING

FLANGE, shaft bearing, serial no. 19000 and below

4шт.

15

470746R1

FLANGE

shaft bearing, serial no. 19001 and above

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD P/T lock type 5

1шт.

16

178033C1

SHIELD

rotary drive

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

17

178034C1

BRACKET

ANGLE, front mounting

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd cap

1шт.

366864R1

WASHER, 1/2 rib lock

1шт.

178374C1

WASHER, 17/32 x 1-1/4 x 1L ga

1шт.

18

178035C1

CONDUIT

CHANNEL, rear mounting

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 hex-hd type 8

1шт.

9412231

NUT

5/8 PHC P/T lock type 8

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int-tooth lock

1шт.

19

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

knife head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga hard

1шт.

20

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

shaft

2шт.

21

178020C1

HOUSING

rotary brg

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 std dr thd self tap lub

1шт.

23

187067C1

CLEVIS

YOKE W/STUD, rotary drive, serial no. 30000 and below

1шт.

23

181865C2

SUPPORT ASSY.

YOKE W/STUD, drive, serial no. 30001 and above

1шт.

24

545484R1

WASHER

WASHER, shim

1шт.

25

178025C1

PIN,21.49mm OD x 36.58mm L

brg mounting

2шт.

26

458932R91

BEARING W/CUP AND SEAL, roller, serial no. 19000 and below

2шт.

26

371882R92

BEARING, cone, serial no. 19001 and above

2шт.

27

371883R1

BEARING CUP

2шт.

28

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

brg retainer .002

5шт.

28

458956R1

SHIM

brg retainer .005

5шт.

28

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

brg retainer .010

7шт.

29

458958R1

COVER

RETAINER, brg

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

178026C1

RING

retainer seal, serial no. 19000 and below

2шт.

30

197895C1

SEAL

SEAL, bearing, serial no. 19001 and above

2шт.

31

197610C1

SHAFT

rotary, 2.05 in. full thread, for service order, 1 shaft wobble 1305084C1, 1 pulley, driven 182074C1

1шт.

31

1305084C1

SHAFT

wobble, 1.65 in. full thread, replaces 184757C1

1шт.

32

G15215

ROLLER BEARING

CONE, bearing

2шт.

33

619387R1

BEARING CUP

CUP, brg

2шт.

34

178028C1

LOCK NUT

lock

1шт.

Ref#34 - the spanner wrench for the 178028C1 is listed in 1600 Service Manual ection 9115 as a 16-569.

1шт.

35

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL, oil

2шт.

36

178030C2

SUPPORT

rotary drive

1шт.

37

627095C1

SPACER

snap ring cup

1шт.

38

167878C11

FLANGE

W/65 DEG LUB FITTING, bearing

1шт.

39

470746R1

FLANGE

bearing grooved

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

1шт.

40

178031C91

BEARING ASSY,1.125" ID x 1.438"

W/BRG, ball, serial no. 30000 and below

1шт.

40

181866C91

BEARING ASSY,1.125" ID x 2.44" OD x 1.44"

HOUSING W/BEARING, ball, serial no. 30001 and above

1шт.

41

Not used this application

1шт.

42

163417C91

GRAIN LIFTER

LIFTER, grain, heavy duty, parts accessory

1шт.

43

608787R91

GRAIN LIFTER

LIFTER, grain, parts accessory

1шт.
