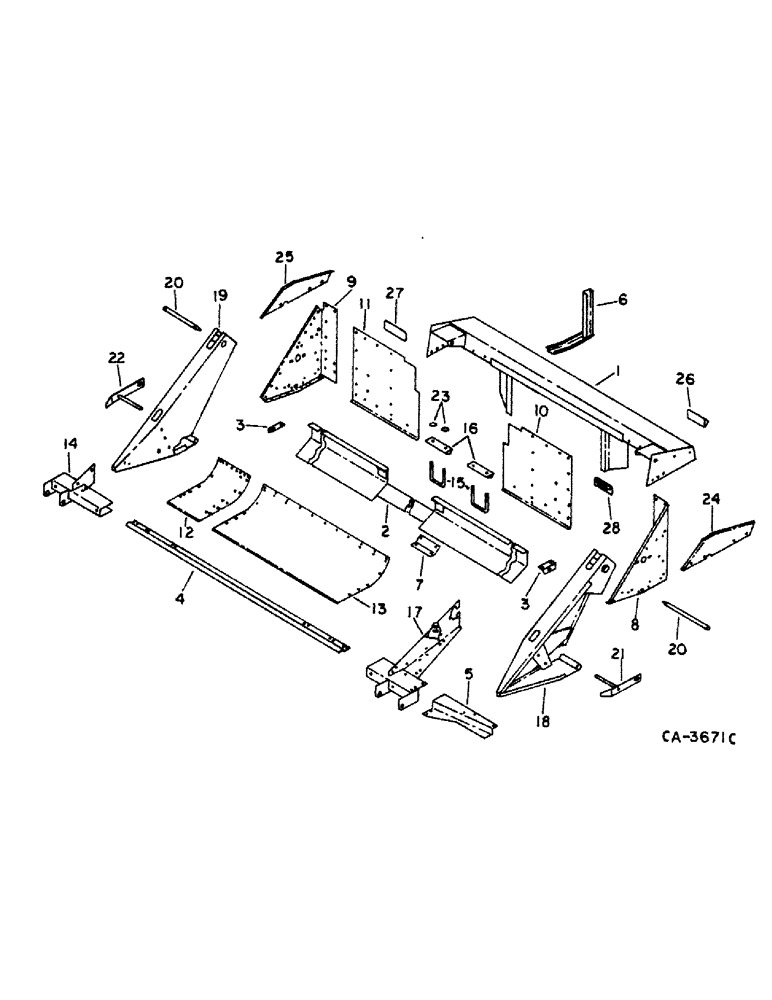

Запчасти Case IH 914 (33-07) - FEEDER AND HEADER, HEADER (13) - FEEDER

1

184746C91

BEAM ASSY.

BEAM ASSY, main, replaces 176590C1, includes ref nos. 27 and 28

1шт.

2

179874C2

BEAM ASSY.

BEAM ASSY, lower

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-tr-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

1шт.

3

176685C1

ANGLE

stripper end

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-tr-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt truss

1шт.

4

179873C1

BAR

cutter

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

5

178004C1

SUPPORT

knife drive lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex-hd type 8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd cap

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.06 x .10 znd

1шт.

6

176651C3

SUPPORT ASSY.

SUPPORT ASSY, J inner RH

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

1шт.

9413969

NUT,5/8"-11, GB

5/8 prevailing torque hex

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 hex-hd cap

1шт.

7

176655C1

ANGLE

bottom support

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

8

176656C2

SHEET

LH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

9

176657C2

SHEET

RH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

10

176670C1

BACKSHEET, left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

176665C1

SHEET

BACKSHEET, right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-tr-hd

1шт.

12

176678C1

BOTTOM

right

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd flange lock

1шт.

13

176684C1

SUPPORT

BOTTOM, center

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 hex-hd flange lock

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-tr-hd

1шт.

14

176836C1

SUPPORT ASSY.

CHANNEL ASSY, RH divider

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

15

177134C4

U-BOLT, feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

155960C1

BELLEVILLE WASHER

u-bolt steel

1шт.

16

177140C1

BAR

feeder latch u-bolt

2шт.

17

178001C2

SUPPORT

ASSY, knife drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

SCREW, 3/8 x 3/4 znp slt-truss-hd

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

176812C1

DIVIDER

ASSY, LH

1шт.

19

176813C1

DIVIDER

ASSY, RH

1шт.

20

197959C2

AXLE PIN

PIN, upper pivot

2шт.

517843R1

COTTER PIN

PIN, 3/16 cot

1шт.

27807R1

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

21

176830C2

BOLT

PIN ASSY, lower LH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 znd std-hd

1шт.

22

176832C2

PIN ASSY.

PIN ASSY, lower RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 std-hd

1шт.

23

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

24

176937C2

GUARD

SHIELD, auger end LH, standard w/windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-tr-hd

1шт.

25

176938C2

GUARD

SHIELD, auger RH, standard for windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-tr-hd

1шт.

26

175311C1

REFLECTOR

red

1шт.

27

176977C1

PRODUCT GRAPHIC

danger

1шт.

28

184624C1

PRODUCT GRAPHIC

caution

1шт.

29

Not used in this application

1шт.
