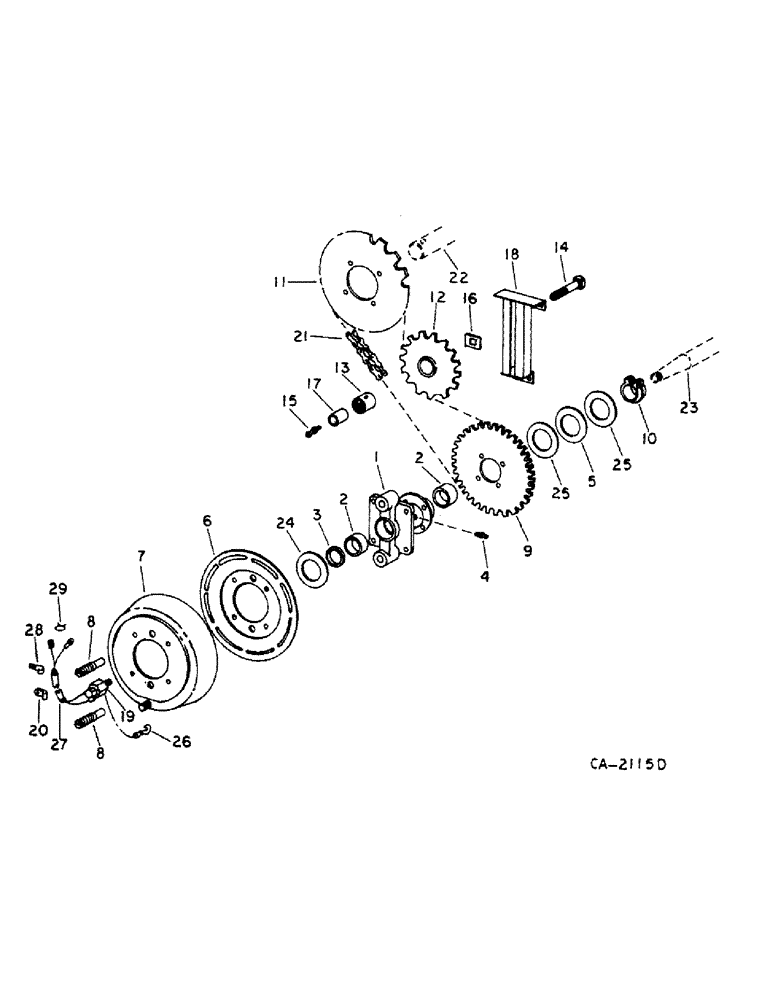

Запчасти Case IH 914 (33-05) - FEEDER AND HEADER, FEEDER DRIVE AND ELECTRIC CLUTCH (13) - FEEDER

1

172664C21

HUB ASSY, feeder drive clutch, includes ref. nos. 2 and 3

1шт.

2

392680R91

NEEDLE BEARING

clutch hub

2шт.

3

158109C91

SEAL

feeder drive clutch hub brg oil

2шт.

4

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 str lub

1шт.

5

164683C1

THRUST WASHER

feeder clutch hub thrust

1шт.

6

188754C1

ARMATURE

ASSY, feeder drive clutch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

188753C1

MAGNET

feeder drive clutch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

160309C1

STUD

feeder drive clutch lockout

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

172665C1

SPROCKET ASSY.

SPROCKET, feeder drive, 26T

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 znd hex-hd type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

164682C1

CLAMP, feeder clutch hub

1шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

175970C1

SPROCKET ASSY.

SPROCKET, feeder driven, 49T

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

172079C91

SPROCKET ASSY.

SPROCKET W/BRG, feeder drive tightener, 19T, includes ref no 13

1шт.

13

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

feeder drive tightener

1шт.

14

575280R1

BOLT (SPREADER)

BOLT, feeder drive tightener sprocket

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga znd

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq x 1-1/2 x 12 ga znd

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

16

160690C1

BAR

WASHER, feeder drive tightener sprkt

1шт.

17

578607R1

SLEEVE CYLINDER

SLEEVE, feeder drive tightener sprkt

1шт.

18

173028C1

BRACKET ASSY, feeder drive tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

122177C1

HARNESS

W/BRUSH HOLDER, includes ref. nos. 26 and 27

1шт.

20

132112H1

CLAMP,9/16", 3/8" Bolt

brush holder

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

1шт.

21

CHAIN ASSY, feeder drive, use 105 links from 10 ft roll marked 654437R91, 1 connecting link 654438R91

1шт.

21

CHAIN ASSY, feeder drive, header less cutting parts, use 125 links from 10 ft roll marked 654437R91, 1 connecting link 654438R91

1шт.

22

SHAFT, feed conveyor pivot, refer to this group under feed conveyor

1шт.

23

SHAFT, cylinder beater, refer to group 21 under cylinder beater and supports

1шт.

24

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

4шт.

25

24582R1

WASHER

1-29/32 x 2-3/4 x 16 ga

2шт.

26

179650C1

ELECTRICAL WIRE

WIRE ASSY

1шт.

27

179651C1

CABLE

ASSY

1шт.

28

263717R91

CLIP

cable

1шт.

29

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP, brush holder cable

1шт.
