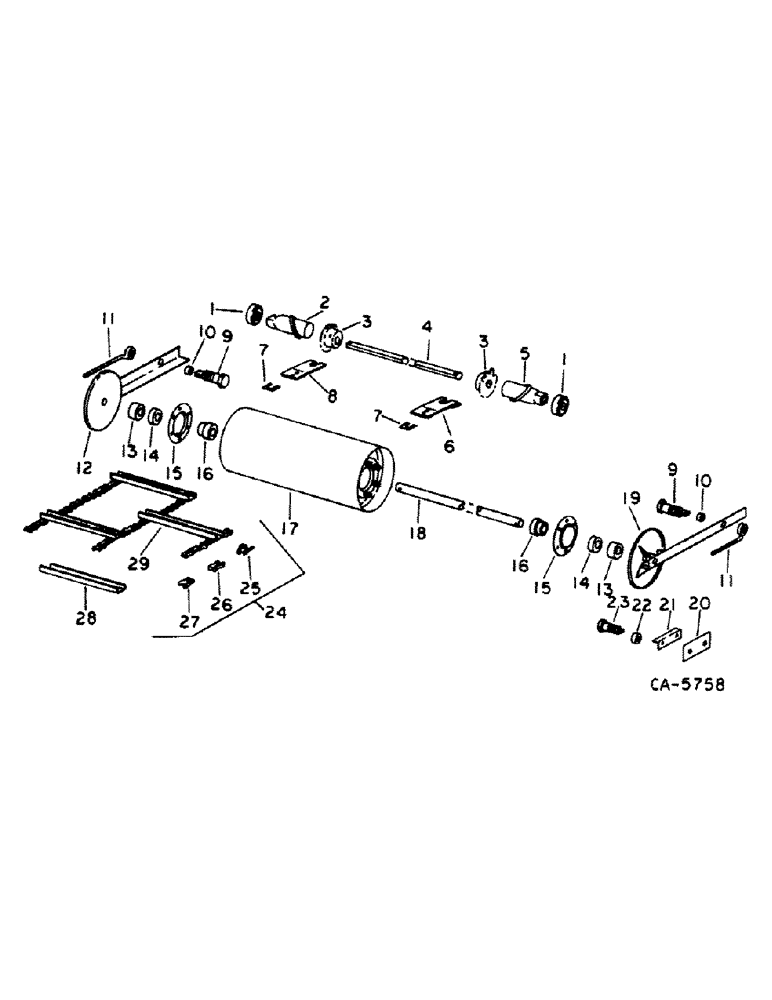

Запчасти Case IH 914 (33-03) - FEEDER AND HEADER, FEED CONVEYOR (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
179665C91
BALL BEARING,38.1mm Hex x 85mm OD x 30mm W
BEARING ASSY, feed conveyor shaft
2шт.
2
178781C1
SPACER
ASSY, conveyor sprocket RH
1шт.
3
197556C1
SPROCKET ASSY.
SPROCKET, feed conveyor, 9T
3шт.
197643C1
SET SCREW
special set
1шт.
4
176510C1
SHAFT
feed conveyor
1шт.
137323
COTTER PIN,5/16" x 2 1/2"
Pin, Split (Cotter), 5/16" x 2 1/2"
1шт.
609376R1
WASHER
1.781 x 2.5000 x .105
1шт.
5
178780C1
SPACER
ASSY, conveyor sprocket LH
1шт.
6
197964C1
STRIPPER
ASSY, LH, serial no. 19001 thru 23000
1шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
359783R1
NUT, 3/8 prevailing torque
1шт.
25709R1
WASHER
.406 x .812 x .089 hdn
1шт.
6
185708C1
STRIPPER ASSY.
STRIPPER ASSY, LH, serial no. 23001 and above
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 cad p/t lock type 8
1шт.
390307C1
WASHER
.531 x 1.062 x .095 hdn
1шт.
7
151670C1
SHIM
SHIM, washer, 036 ga, serial 19001 thru 26000
1шт.
7
935915R1
SHIM,33.02mm OD x 0.38mm Thk
washer, serial no. 26001 and above
1шт.
8
197965C1
STRIPPER
ASSY, RH, serial no. 19001 thru 26000
1шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
359783R1
NUT, 3/8 prevailing torque
1шт.
25709R1
WASHER
.406 x .812 x .089 hdn
1шт.
8
185709C1
STRIPPER ASSY.
STRIPPER ASSY, RH, serial no. 26001 and above
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 CAD p/t lock type 8
1шт.
390307C1
WASHER
.531 x 1.062 x .095 hdn
1шт.
9
178005C1
BOLT,Hex, 5/8" - 11 x 3", Gr 5
conveyor drum support arm
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
131016
WASHER
.656 x 1.312 x .074
1шт.
10
558506R1
SPACER
support arm bolt
2шт.
11
176508C1
BOLT,5/8" - 11 x 228.60mm
feed conveyor tightener
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 type 5
1шт.
12
1305157C1
ARM
ASSY, conveyor drum support RH
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2 type 5
1шт.
13
M74461
SPACER,26.6mm ID x 33.4mm OD x 19mm L
S/N 19000 and below 1" Pipe x 3/4"
2шт.
14
455102R21
COLLAR
W/SET SCREW, conveyor drum
2шт.
15
165360C1
FLANGED BEARING,95.2 mm OD x 8.74 mm
FLANGE, conveyor drum bearing
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16 type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
16
202311C91
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
BEARING, conveyor drum
2шт.
17
175976C1
DRUM HUB
DRUM ASSY, conveyor
1шт.
18
175983C2
SHAFT
conveyor drum
1шт.
20704R1
WASHER
1.031 x 1.500 x .105
1шт.
19
1305156C1
ARM ASSY.
ARM ASSY, conveyor drum support LH
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2 type 5
1шт.
20
179274C1
COVER, feeder side, serial no. 19000 and below
2шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 crg type 1
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
21
179273C1
STOP, conveyor drum lower, serial no. 23000 and below
2шт.
22
197211C1
SPACER
conveyor drum lower, serial no. 23001 and above
2шт.
23
189709C1
BOLT,Hex, 1/2" - 13 x 3"
conveyor drum stop
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
24
175994C92
CHAIN (AG)
CHAIN ASSY, conveyor, includes ref. nos 25 thru 29
1шт.
25
189710C1
LINK,A550, 3 Links x 41.4mm = 124.2mm
ASSY, attaching, consists of side bar w/riveted pins and 1 loose side bar
1шт.
26
179903C2
LINK
ASSY, connecting, consists of side bar w/riveted pins and 1 loose side bar
1шт.
27
179904C2
CLEVIS PIN
LINK ASSY, offset, consists of side bars w/roller and 1 loose pin
3шт.
28
177304C1
SLAT
ASSY, conveyor stripper LH, serial no. 19000 and below
1шт.
28
177305C1
SLAT
ASSY, conveyor stripper RH, serial no. 19000 and below
1шт.
104264
RIVET,FH, 5/16" x 5/8"
5/16 x 5/8 PLN F/HD sol
1шт.
29
175997C1
SLAT
conveyor
49шт.
104264
RIVET,FH, 5/16" x 5/8"
5/16 x 5/8 PLN F/HD sol
1шт.
Выбрано товаров: 66
